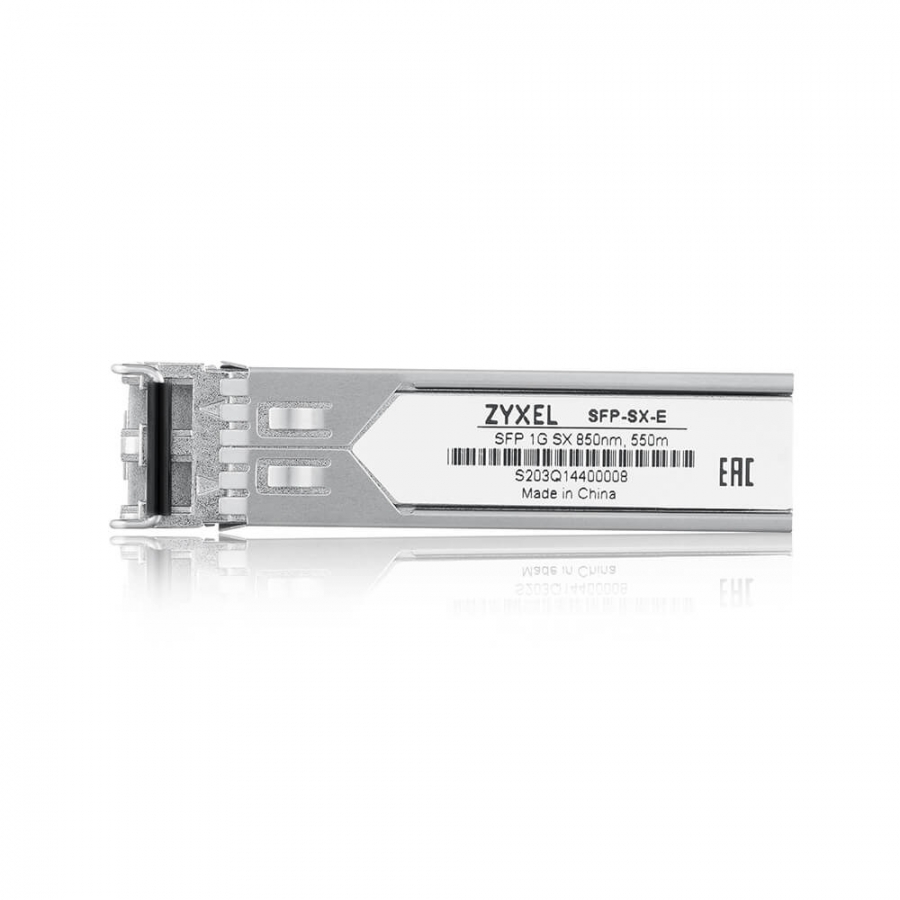

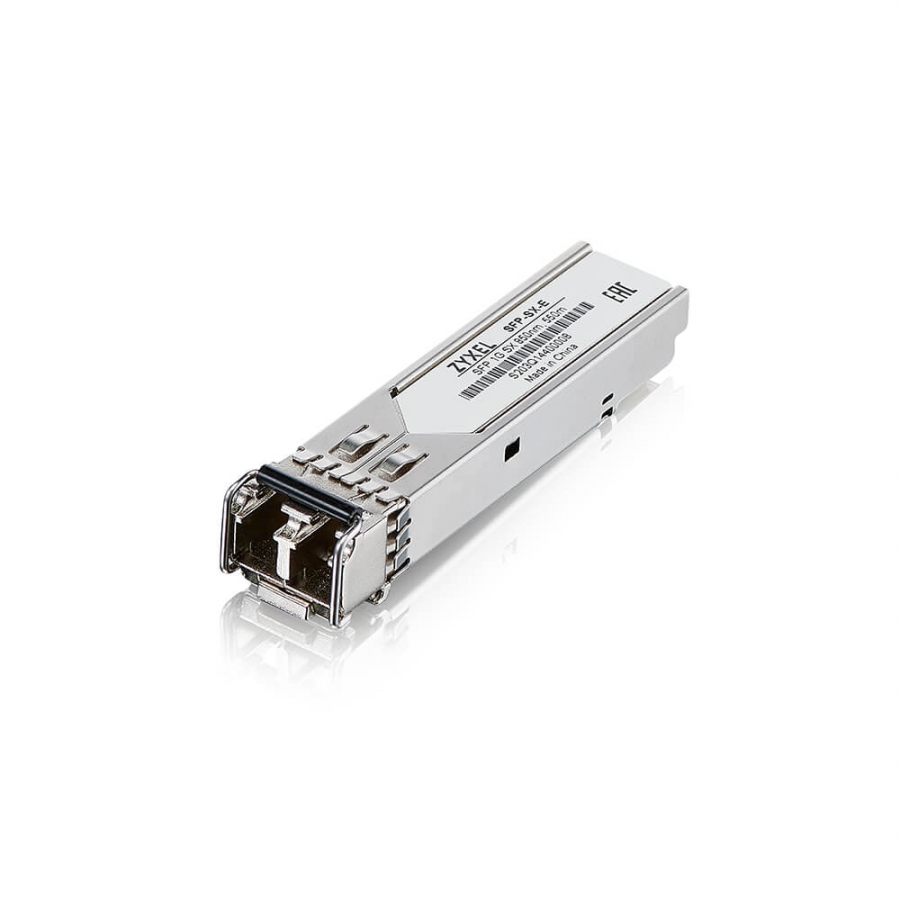

Zyxel Transceiver 10 SFP-SX-E Short Range 550m

Zyxel Transceiver 10 SFP-SX-E Short Range 550m

ZYXEL

SFP-SX-E-ZZBD01F

New

Add to Compare
Hot-pluggable with maximum flexibility Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.No extra cabling cost to upgrade the fiber plant Traditional fiber optic networking requires two strands of fiber for sending and receiving signals to accomplish communications. The bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber. Transmission capacity can be expanded immediately without additional cost laying new fiber.Supports digital diagnostics monitoring interface (DDMI) DDMI enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals. In addition, the DDMI functionality enables the capability to implement digital alarms and warnings.Complete fiber accessory portfolio We provide multiple options including 1G SFP, 10G SFP+ and 10G DAC cables for different installation requirements.

SFP transceiver typeFiber optic
Maximum data transfer rate1000 Mbit/s
Interface typeSFP
Multi-mode fiber (MMF) supportedY
Fiber optic connectorLC
Maximum transfer distance550 m
Wavelength850 nm
Tx power (min)-3 dBmW
Tx power (max)-9.5 dBmW
Rx power (min)-3 dBmW
Rx power (max)-17 dBmW
Product colourSteel
Country of originChina
Brand compatibilityZyxel
Input voltage3.1-3.5 V
Maximum current0.3 A
Width13.4 mm
Depth56 mm
Height12.4 mm
Weight20 g
Harmonized System (HS) code85369010
