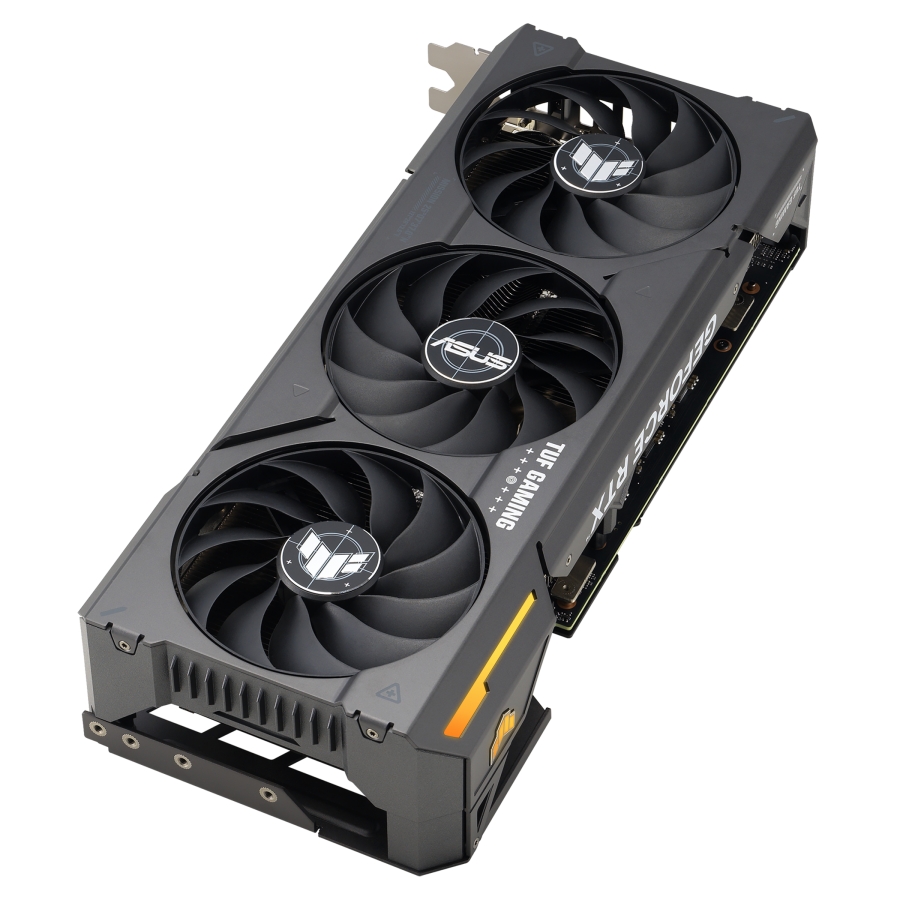

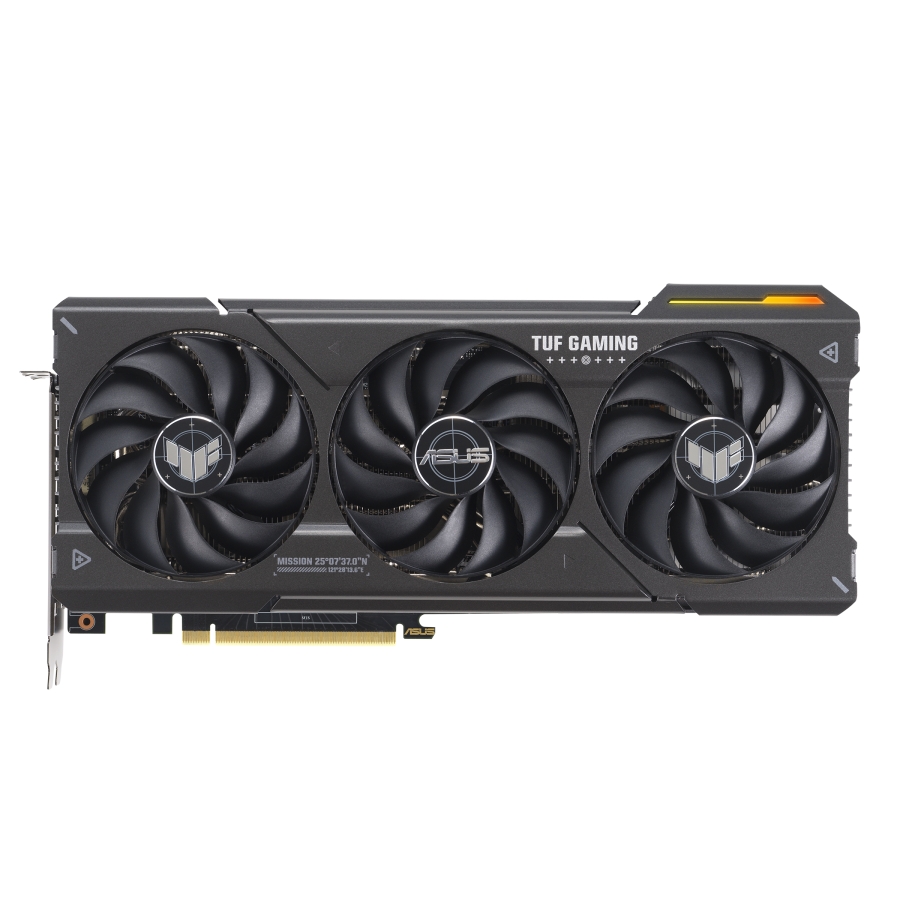

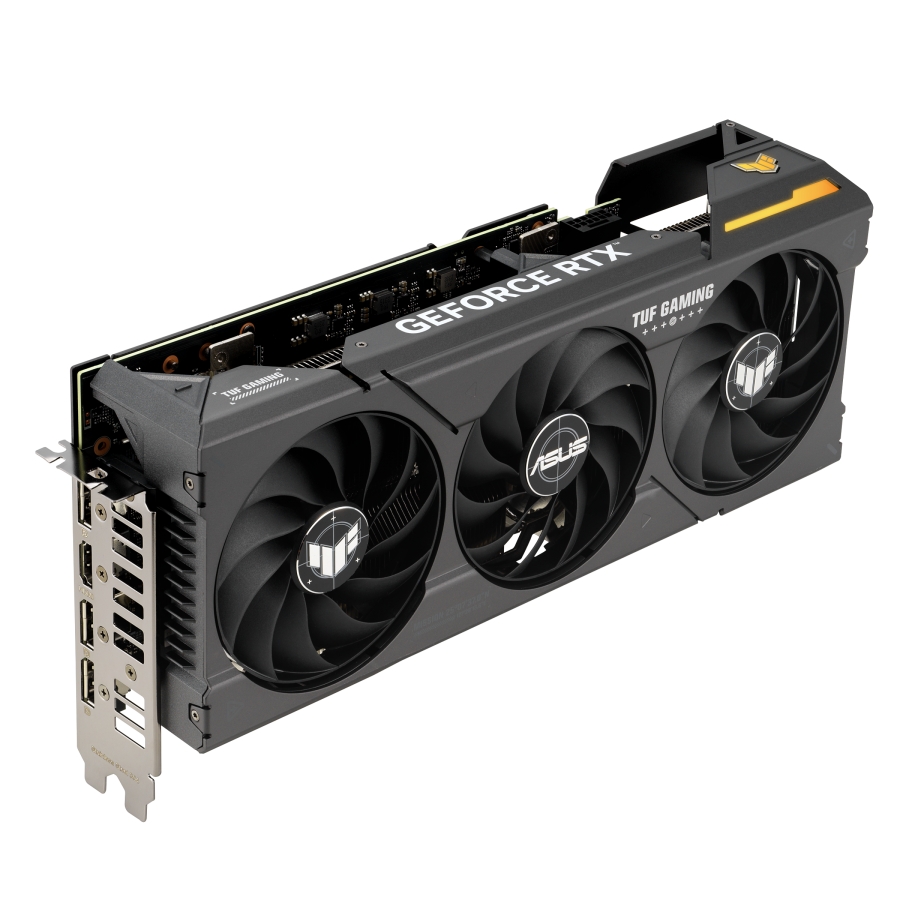

ASUS TUF-RTX4070S-O12G-GAMING 12GB GDDR6X HDMI DP

Manufacturer: ASUS

Reference 90YV0K80-M0NA00

Condition: New

More info

ASUS TUF Gaming GeForce RTX™ 4070 SUPER 12GB GDDR6X OC Edition with DLSS 3, lower temps, and enhanced durability

ARMED FOR FLOW
NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery,
and backed with an arsenal of rugged reinforcements to cover your six.
Lock, load, and dominate with the TUF Gaming GeForce RTX™4070 SUPER.
For specific instructions for connecting this graphics card to your power supply unit, please see the FAQ section.

NVIDIA Ada Lovelace Architecture
Designed to Give You Superpowers

New Streaming Multiprocessors
Up to 2X performance and power efficiency

Fourth-Gen Tensor Cores
Up to 4X performance with DLSS 3 vs. brute-force rendering

Third-Gen RT Cores
Up to 2X ray tracing performance

Axial-tech Upgrades
Air Superiority
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

New Direction
Well-maintained Formation
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.

3.15-slot Design
Phase That Blaze
A generously oversized heatsink combo efficiently soak up heat from the GeForce RTX 4070 SUPER GPU so that it can be whisked away by the three Axial-tech fans.

Military-grade 20K Capacitors
Resilient Squadron
A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.

VENTED EXOSKELETON
Stay Frosty
The backplate is made of sturdy aluminium to brace the PCB and sink heat away from onboard components.

LOCK, LOAD, AND LET THE PERFORMANCE FLOW
The GeForce RTX™ 4070 SUPER gloriously presented on a backdrop of low noise and rugged durability.

AUTO-EXTREME TECHNOLOGY
RELIABILITY BOOST
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

AURA SYNC
Light ‘em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.

GRAPHICS CARD HOLDER
Pillar of Support

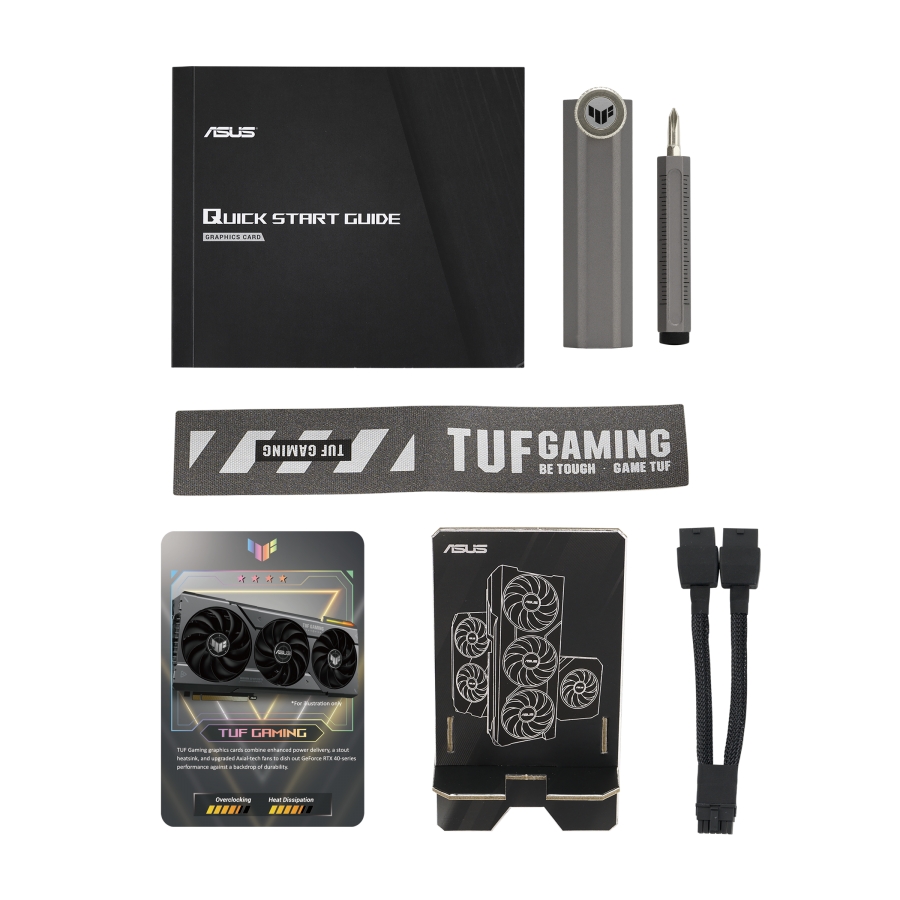

The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.

GPU Tweak III
ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.

QuantumCloud
QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!

Pair with a PSU
Use our wattage calculator to estimate how much power you’ll need to fuel your rig and then pick a compatible ROG, TUF Gaming or Prime PSU for ultimate performance.

Free 1 Month of Adobe Creative Cloud
Get complimentary membership with the purchase of selected ASUS products.*
* Terms and conditions apply. For more details, please read the full terms and published on the event page.

NVIDIA DLSS 3
Max FPS. Max Quality. Powered by AI.
DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.

Further With AI,
Faster on RTX
Get next-level AI performance on GeForce RTX.
Discover the RTX AI advantage. Built for the era of AI, GeForce RTX™ GPUs feature specialized AI Tensor Cores that deliver cutting-edge performance and revolutionary capabilities. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming, the ultimate in AI power on Windows PCs is on RTX.

Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 4070 SUPER
Maximum resolution	7680 x 4320 pixels
CUDA	Jā
Parallel processing technology support	Not supported
CUDA cores	7168
Processor boost clock speed	2565 MHz
Processor boost clock speed (OC mode)	2595 MHz
Maximum displays per videocard	4
Discrete graphics card memory	12 GB
Graphics card memory type	GDDR6X
Memory bus	192 bit
Memory bandwidth (max)	21 GB/s
Interface type	PCI Express 4.0
HDMI ports quantity	1
DisplayPorts quantity	3
HDMI version	2.1a
DisplayPort version	1.4a
OpenGL version	4.6
Dual Link DVI	Nē
HDCP	Jā
HDCP version	2.3
Cooling type	Active
Cooling technology	ASUS Axial-tech
Number of fans	3 fan(s)
Number of slots	3.15
Product colour	Multicolour
Minimum system power supply	750 W
Supplementary power connectors	1x 16-pin
Windows operating systems supported	Jā
Depth	63 mm
Height	139 mm
Width	301 mm
