External Enclosure 2 x mSATA USB 3.1 Gen 2 with RAID

DELOCK

42571

New

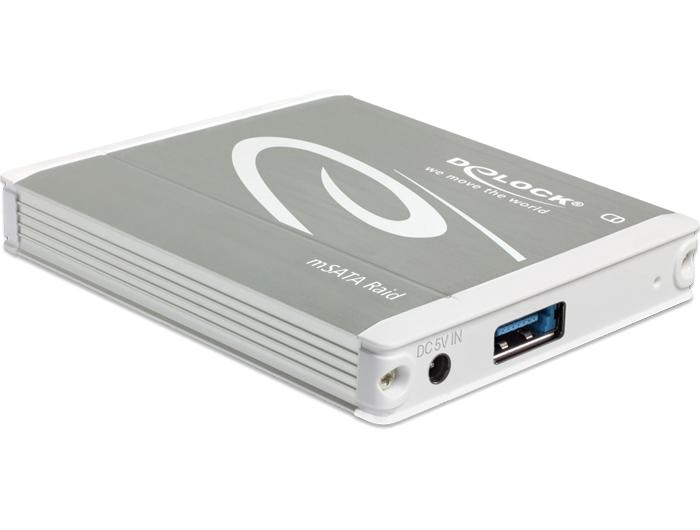

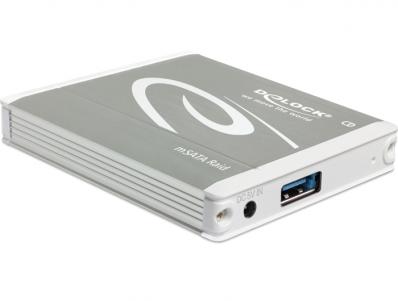

The aluminium enclosure by Delock enables the installation of two mSATA SSD, which can be connected via USB Type-C™ to the PC or laptop. When using more than one SSD, there is the possibility to use different RAID level.

More details

Description:
The aluminium enclosure by Delock enables the installation of two mSATA SSD, which can be connected via USB Type-C™ to the PC or laptop. When using more than one SSD, there is the possibility to use different RAID level.

Specification:
• Connector:
external:
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type-A female
1 x 5 V DC jack
internal:
2 x mSATA slot (full size)
• Chipset: Asmedia ASM1352R
• For 3.3 V mSATA module
• Supports RAID 0, 1, SPAN, Port Multiplier
• RAID mode set by DIP switch on board
• Data transfer rate up to 10 Gbps

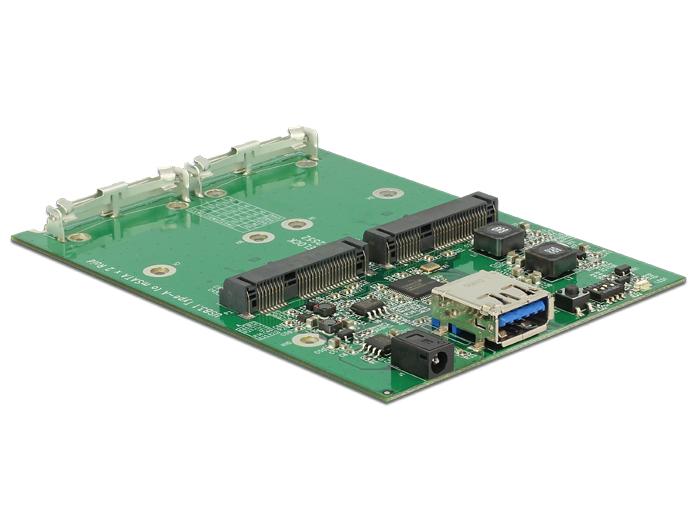

• Enclosure with full-PCB
• Colour: silver
• Dimensions (LxWxH): ca. 110 x 80 x 16 mm
• Hot Plug, Plug & Play

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux Kernel 3.19, Mac OS 10.9
• PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port

Package content:
• External enclosure
• Cable USB-C™ male to USB Type-A male, length ca. 50 cm
• Cover, screwdriver, screws
• User manual
