Delock External USB 20 Gbps Enclosure for 2 x M.2 NVMe PCIe SSD with USB Type-C™ female and Clone function

Reference 42027

Condition: New

More info

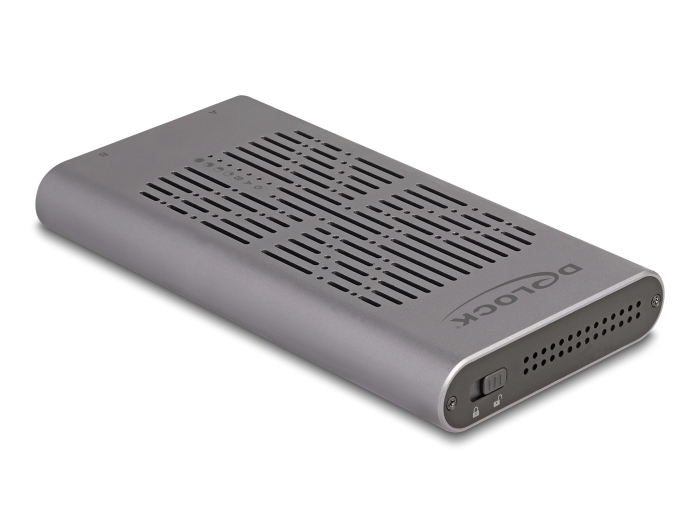

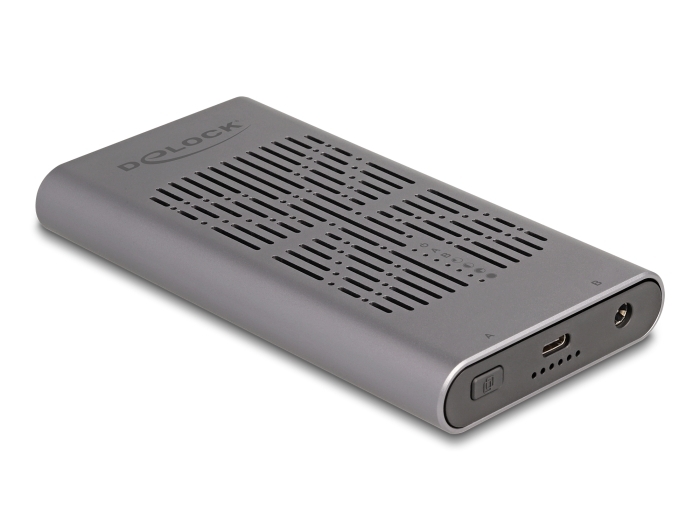

This aluminum enclosure by Delock enables the installation of two M.2 PCIe NVMe SSDs in 2280, 2260 and 2242 format. It can be connected via USB to the PC or laptop.

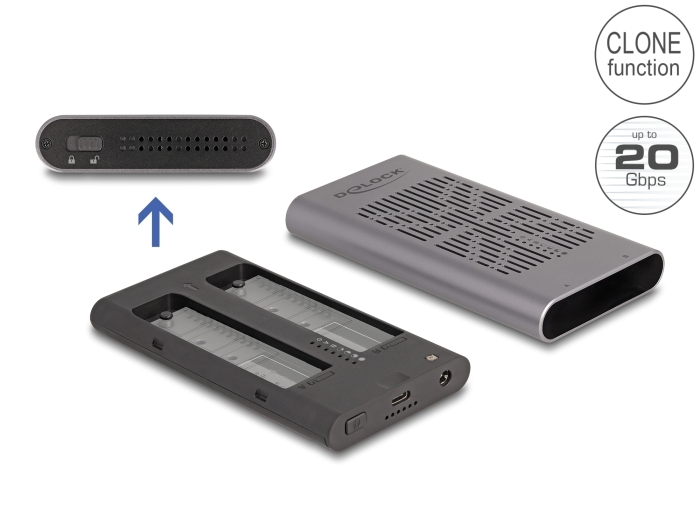

M.2 PCIe SSD clone function
The clone function enables to copy the content of one SSD to another without using a PC.

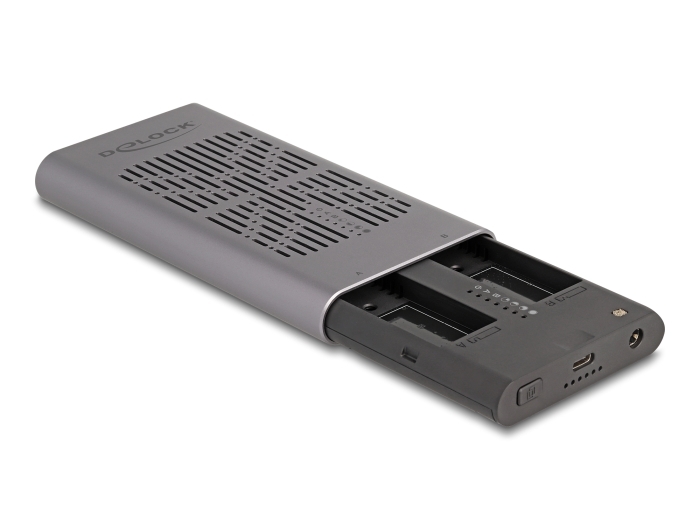

The special feature of this enclosure is that no tools are required to install the M.2 SSD. The locking mechanism prevents unwanted opening of the enclosure, e.g. during transport in the bag.

Good cooling
A fan in the bottom area of the enclosure ensures sufficient cooling of the used SSDs, so that the operation also works without problems with closed case.

System requirements:
• Android 11.0 or above
• Chrome OS
• Linux Kernel 5.15 or above
• Mac OS 13.1 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port

Specification:
• Connectors:
  external:
  1 x USB 20 Gbps USB Type-C™ female
  1 x DC jack
  internal:
  2 x M.2 key M slot
• Chipset: JMicron JMS586U
• Supports M.2 modules in format 2280, 2260 and 2242 with key M or key B+M based on PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports UASP
• Data transfer rate up to 10 Gbps
• 1 x clone button
• 1 x interlock switch
• LED indicator for power, access and copy status
• Hot Plug, Plug & Play
• Bootable
• Metal housing
• Built-in 30 mm fan
• Colour: grey
• Dimensions (LxWxH): ca. 143 x 77 x 18 mm

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: 12.0 V / 2.0 A / 24.0 W
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 2.5 mm
  outside: ø ca. 5.5 mm
  length: ca. 10 mm

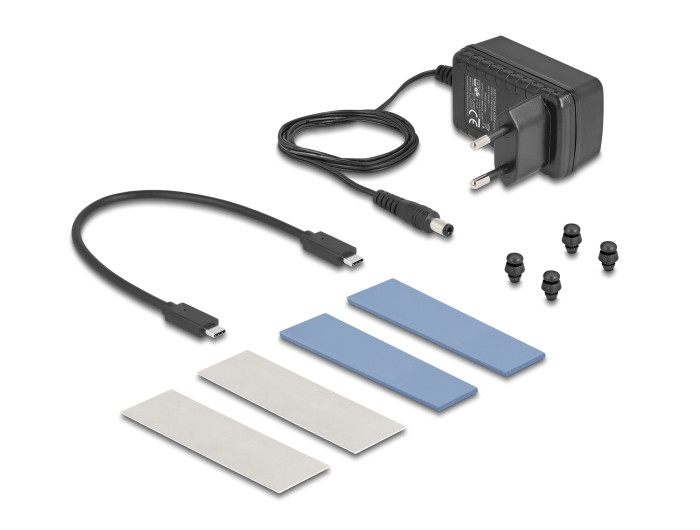

Package content:
• External enclosure
• Cable USB-C™ male to USB-C™ male, length ca. 60 cm
• External power supply
• 2 x thermal conductive pad
• 2 x thermal conductive plate
• 4 x rubber nipple
• User manual

Data sheet:
http://www.delock.de/produkt/42027/pdf.html?sprache=en
