> >>Delock 5.25″ Mobile Rack for 8 x M.2 NVMe SSD with Slim SAS SFF-8654 connector
Delock 5.25″ Mobile Rack for 8 x M.2 NVMe SSD with Slim SAS SFF-8654 connector
Previous Next

Delock 5.25″ Mobile Rack for 8 x M.2 NVMe SSD with Slim SAS SFF-8654 connector

DELOCK

47129

New

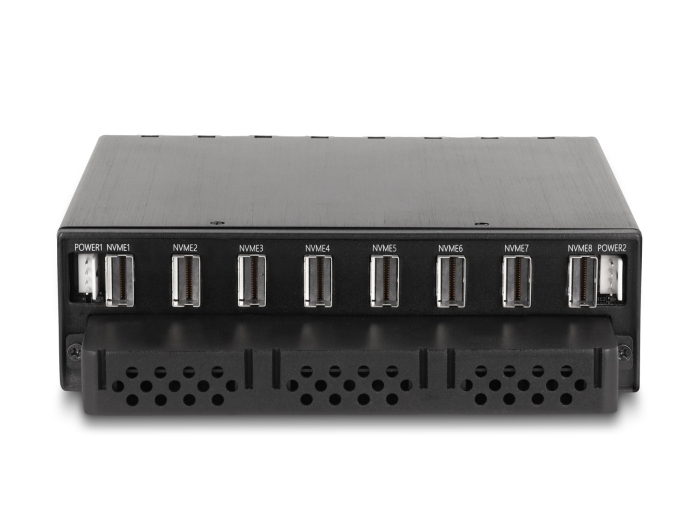

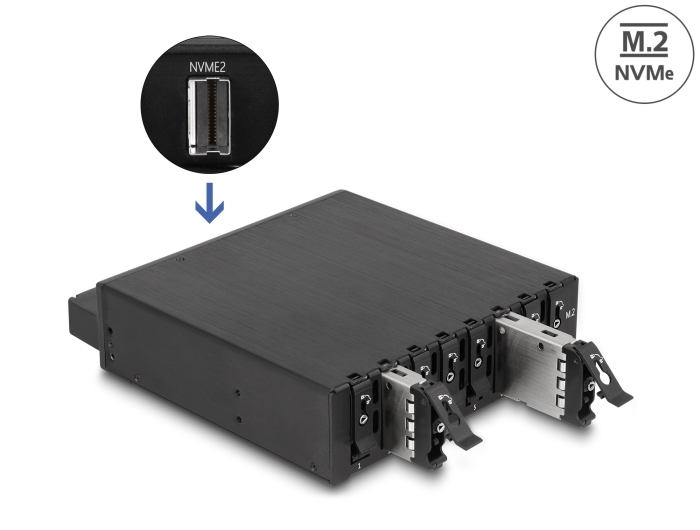

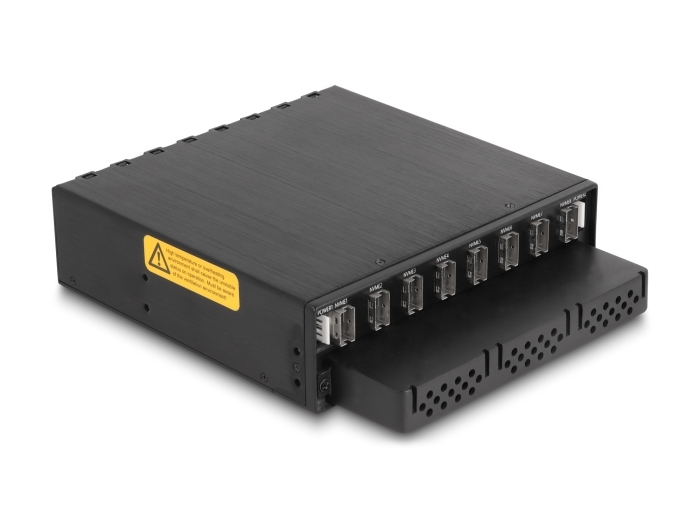

This solid metal mobile rack by Delock can be installed into a 5.25″ bay of a PC, IPC or server enclosure and enables the operation of up to 8 M.2 NVMe SSD. To ensure the maximum speed at each port, each slot has its own Slim SAS SFF-8654 connector.

Quick change of SSD

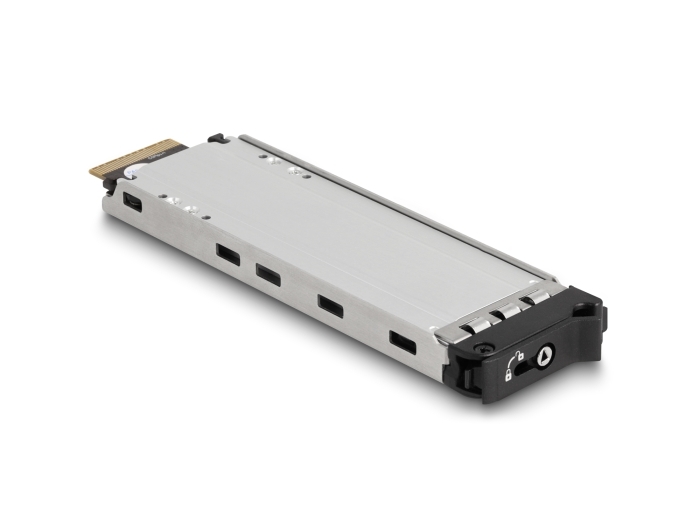

Due to the special mechanism, the SSD can be exchanged quickly and easily. For example, data backups can be taken and stored in a safe place.


The mobile rack is equipped with a key lock to prevent unauthorised access. The stable carrier of metal has springs on the top and bottom which reduce vibrations and therefore support its use in mobile devices.

Note
Special care must be taken that the tray is fully inserted, otherwise no connection to the SSD can be established.
System requirements:
• Linux Kernel 6.2 or above
• Windows 10/10-64/11
• Windows Server 2022
• A free Slim SAS SFF-8654 port for each M.2 slot
• Power supply with a free SATA power connector
Specification:
• Connectors:
  internal:
  8 x M.2 key M slot
  external:
  8 x Slim SAS SFF-8654 4i female
  2 x 4 pin power connector
• Compatible to PCI Express V4.0
• Interface: PCIe / NVMe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• 8 x LED indicator
• 3 x fan
• Bootable, ex UEFI version 2.3.1
• M.2 tray made of metal
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Key lock
• Dimensions (LxWxH): ca. 174 x 145 x 40 mm

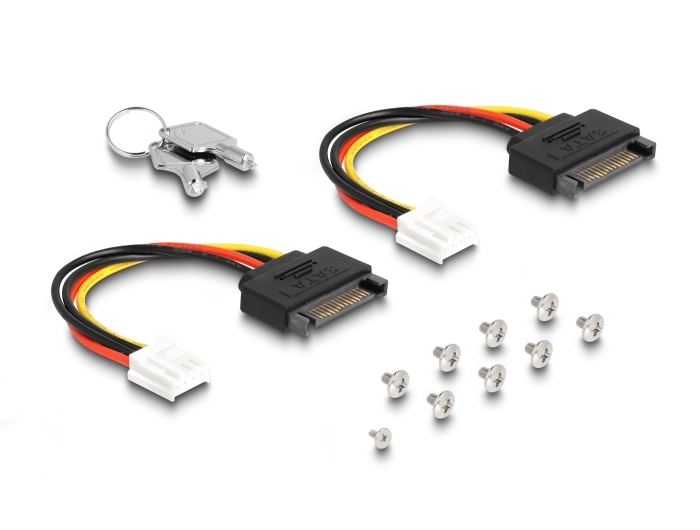

Package content:
• Mobile Rack with 8 x M.2 tray
• 2 x cable SATA 15 pin to 4 pin Floppy female, length ca. 12 cm
• 2 x keys
• 8 x screw IM 2.0 x 4.0 mm, head 5.0 mm
• User manual
Data sheet:
http://www.delock.de/produkt/47129/pdf.html?sprache=en
