Delock 3 Port In-Desk Hub USB 1 x USB Type-C™ and 2 x USB Type-A + HD-Audio Ports

DELOCK

62794

New

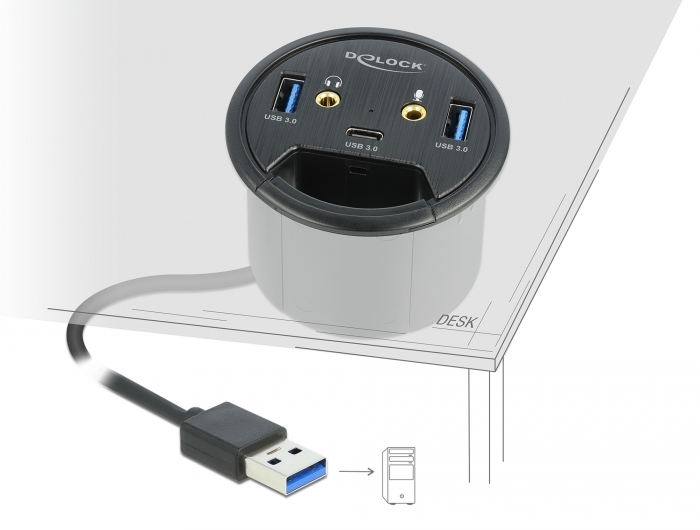

This hub by Delock can be installed into an existing cut-out of the desk with a diameter of 60 mm and can be connected to a computer via the USB Type-A interface. It expands the computer by two USB Type-A ports and one USB Type-C™ port.

Cover cap and cable entry

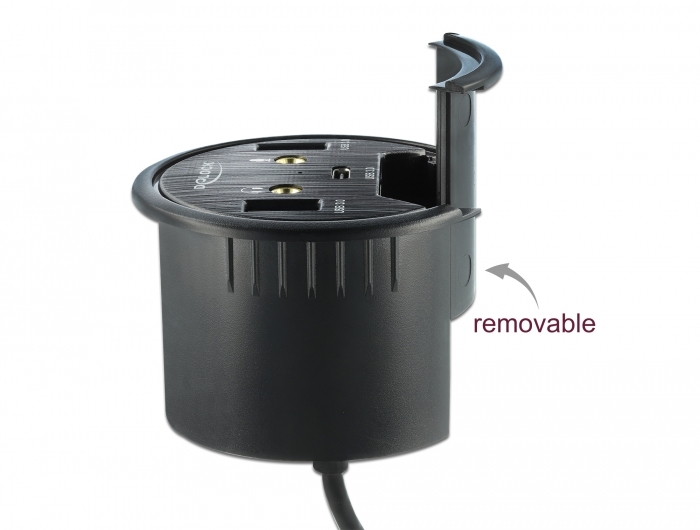

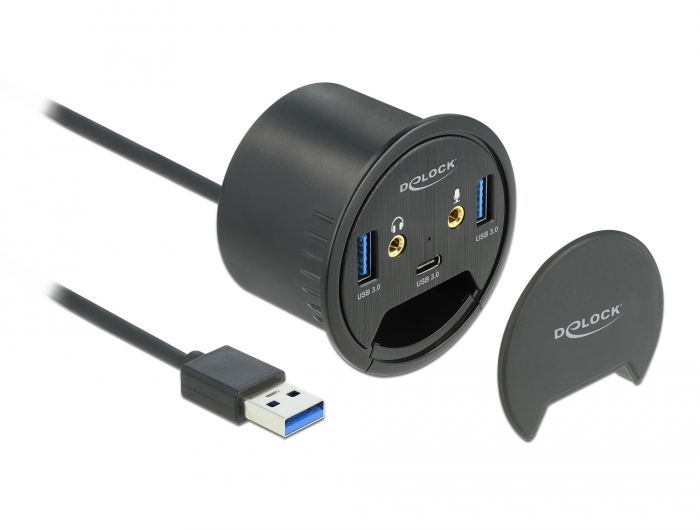

The hub has a cover cap that protects the ports from dirt. In addition, a cable entry is available, whereby existing cables for e.g. mouse, keyboard and monitor can still be passed through the recess.
System requirements:
• Linux Kernel 3.3 or above
• Mac OS 10.15.3 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port
• 60 mm cut-out in the desk
Specification:

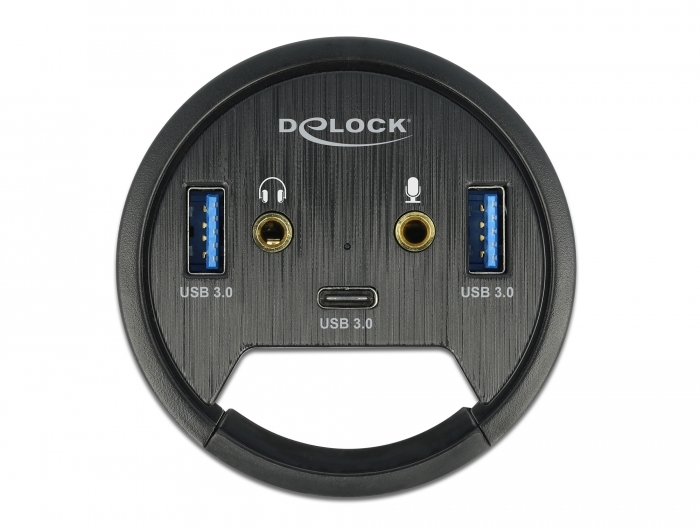

• Connectors:
  top side:
  1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ female
  2 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
  1 x HD-Audio microphone 3.5 mm stereo jack female
  1 x HD-Audio speaker 3.5 mm stereo jack female
  bottom side:
  1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A male
• Chipset: VIA VL812
• Data transfer rate up to:
  SuperSpeed USB 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• 1 x LED indicator
• Power supply: Bus-powered
• Mounting diameter: 60 mm
• Mounting depth: 43 mm
• Cable length: ca. 150 cm
• Plug & Play
Package content:
• In-Desk Hub
• Cover cap
• User manual
Data sheet:
http://www.delock.de/produkt/62794/pdf.html?sprache=en
