Delock 3.5″ USB 3.2 Gen 1 Front Panel 2 x USB Type-A + HD-Audio

DELOCK

64150

New

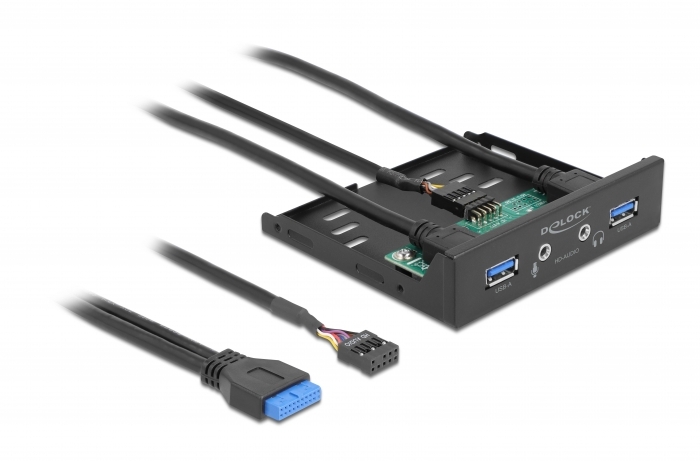

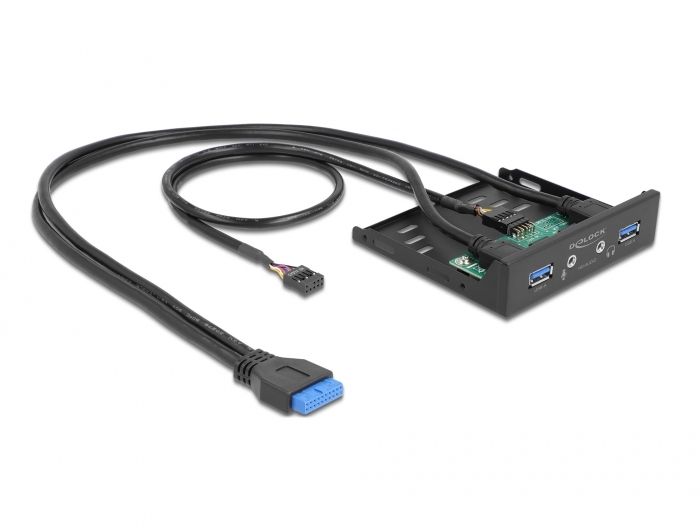

This front panel by Delock can be installed into a free 3.5″ bay of a computer. It has two USB 3.2 Gen 1 and two HD-Audio ports. The connecting cables will be connected internally to the motherboard.
System requirements:
• PC with one free 3.5″ bay
• Motherboard with a free 19 pin USB pin header male
• Motherboard with a free 9 pin HD-Audio pin header male
Specification:
• Connectors:
  external:
    2 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female
    1 x 3.5 mm 3 pin stereo jack female microphone (HD-Audio)
    1 x 3.5 mm 3 pin stereo jack female headset (HD-Audio)
  internal:
    1 x 19 pin USB pin header female port on the cable
    1 x 9 pin HD-Audio pin header male
• Data transfer rate up to:
  SuperSpeed 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• Cable data:
  1 x 19 pin USB pin header female cable ca. 60 cm (incl. connector)
  1 x 9 pin HD-Audio pin header female cable ca. 62 cm (incl. connector)
• 3.5″ metal frame
• Colour: black
• Hot Swap, Plug & Play
• OS independent, no driver installation necessary
Package content:
• 3.5″ front panel

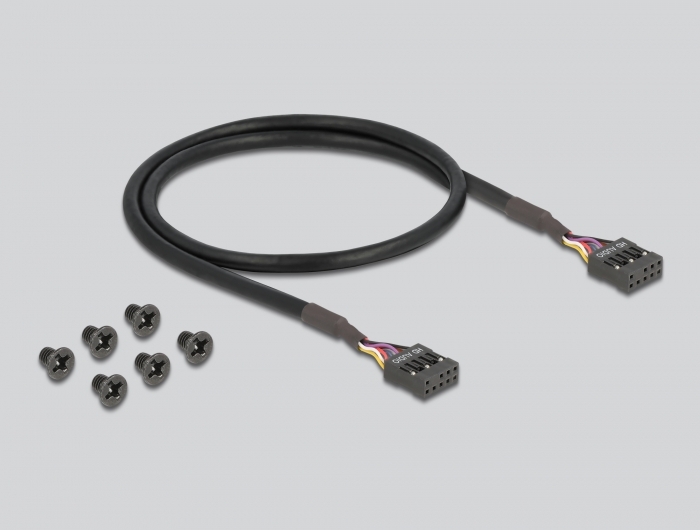

• HD-Audio pin header female cable
• Screws
• User manual
Data sheet:
http://www.delock.de/produkt/64150/pdf.html?sprache=en
