Delock Internal 3.5″ USB 3.2 Gen 1 Hub 4 port

Reference 64166

Condition: New

More info

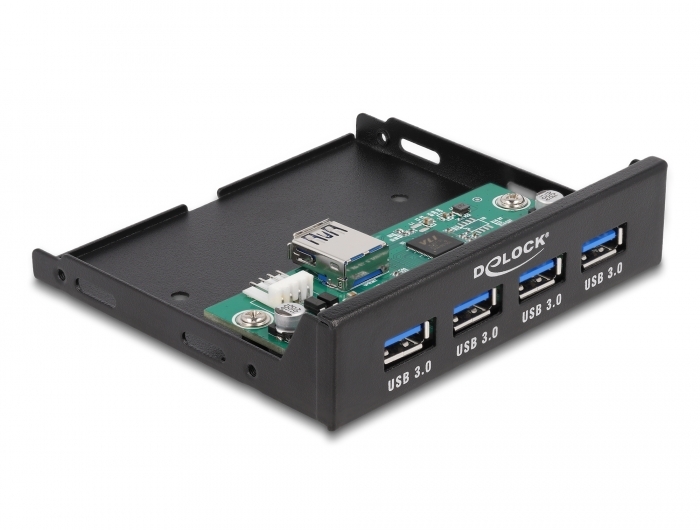

This hub by Delock can be installed into a 3.5″ bay of the PC. It will be connected internally via a USB pin header male on the motherboard. Up to four USB devices, as e.g. docking stations, card reader, external enclosures etc. can be connected.

System requirements:
• Linux Kernel 3.17 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free 3.5″ bay
• Motherboard with a free 19 pin USB pin header male
• Power supply with SATA 15 pin receptacle

Specification:
• Connectors:
  external:
  4 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female
  internal:
  1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female
  1 x 4 pin plug

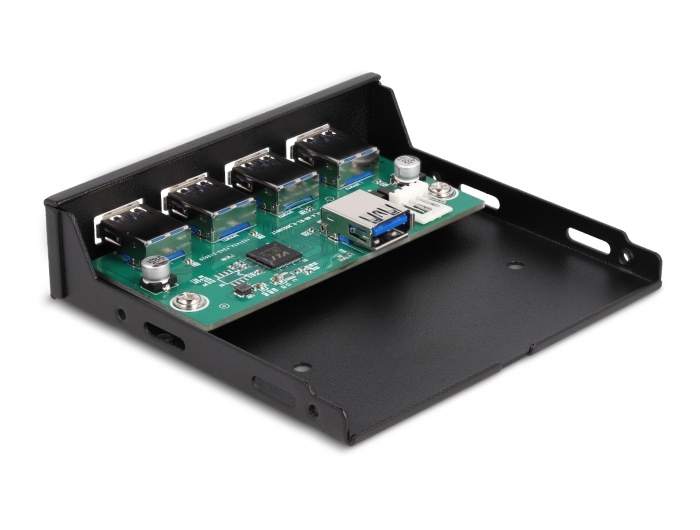

• Chipset: VIA VL817
• Data transfer rate up to 5 Gbps

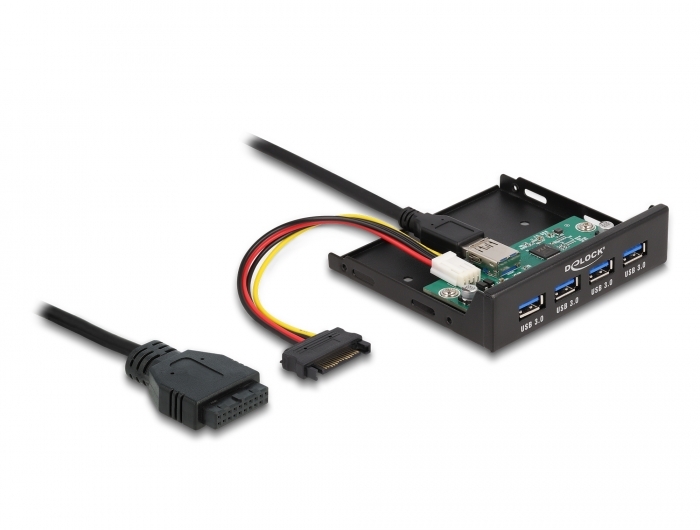

• Cable data:
  1 x USB Type-A male to 1 x 19 pin USB pin header female,
length ca. 74 cm (without connectors)
  1 x power cable 4 pin female to 1 x SATA 15 pin plug,
length ca. 17 cm (without connectors)
• 3.5″ metal frame
• Colour: black
• Hot Swap, Plug & Play
• Dimensions (LxWxH): ca. 102 x 95 x 26 mm

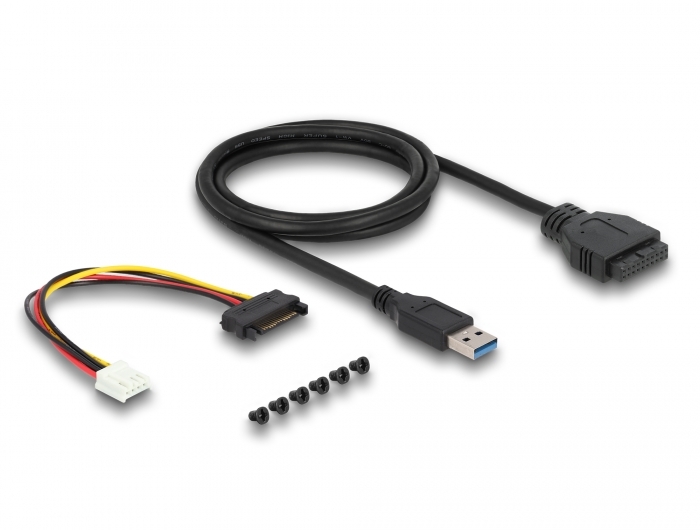

Package content:
• 3.5″ Hub
• USB cable
• Power cable
• Screws
• User manual
