Digitus USB 3.0 Hub 7-Port, Industrial Line

Digitus

DA-70258

New

USB 3.0 HUB, 7 Port, Industrial, Metal 15-kV ESD, Table, Wall, DIN Rail mount

Expands a computer with USB A port with 4 additional USB A super-speed ports.

Additional 7x USB A 3.0 ports with up to 5Gbps to one USB A port
The sturdy metal housing and the various mounts allow flexible mounting on support rails or various surfaces
15kV ESD protection: The USB hub is protected against electrostatic discharge, making it particularly suitable for use in industrial environments.
Thanks to the Super-Speed USB 3.0 standard, fast data transfer rates of up to 5 Gbps are possible - Due to the backwards compatibility, USB 2.0 & USB 1.1 are also supported.
The integrated DC jack connection enables the USB HUB to be additionally supplied with power. (not included within the delivery)
Compatible with many operating systems e.g. macOS, Windows and Google Chrome OS

The DIGITUS® Industrial USB 3.0 Hub is ideal for industrial applications due to its metal housing. It can be mounted on the wall or on a carrier rail and is connected to a computer, notebook or server with the included USB 3.0 cable. USB 3.0 superspeed with a data transfer rate of up to 5 Gbit/s is supported, at the same time the hub is downward compatible to USB 2.0 and USB 1.1. The hub can be powered via a two-wire terminal block connector (+9V to 24V). Optionally, an external power supply can be connected to the DC jack.

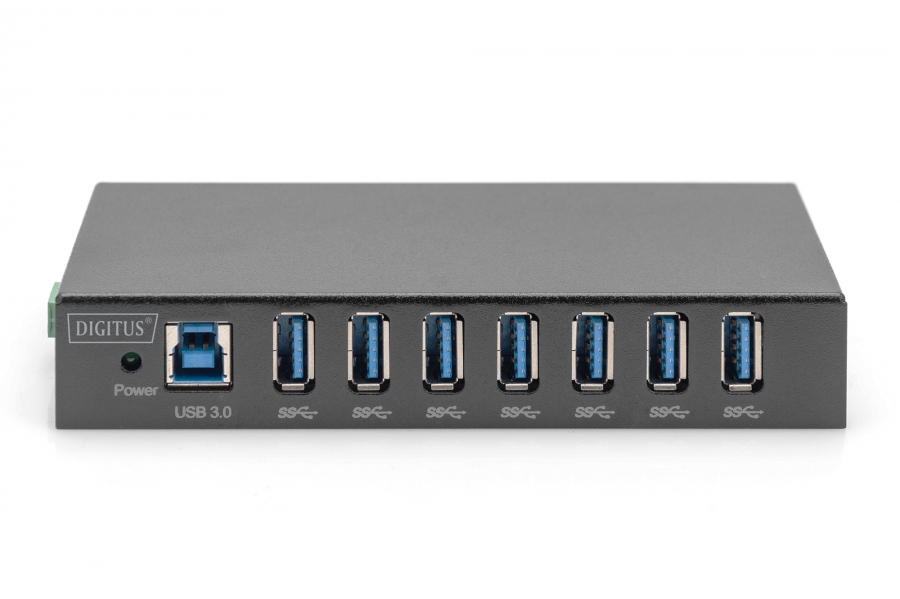

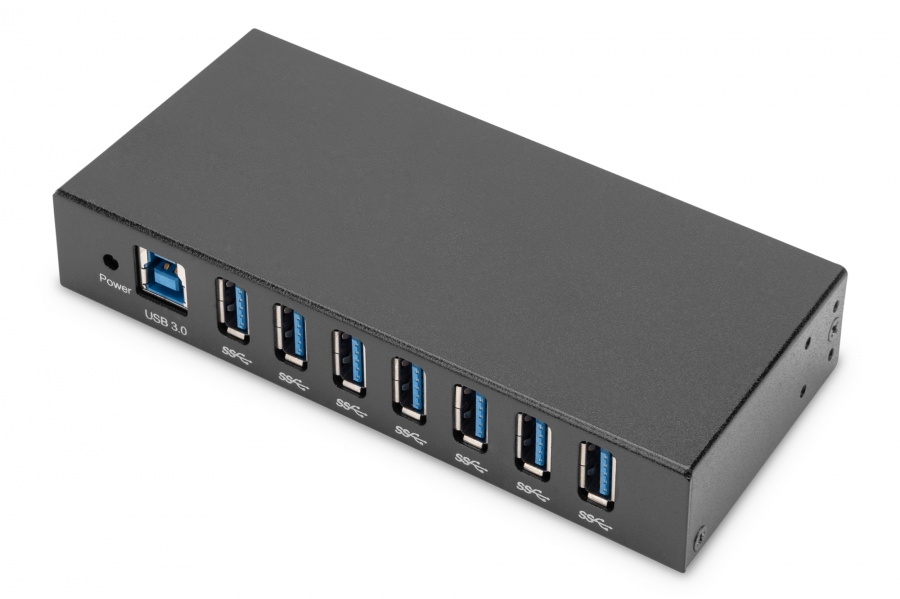

USB 3.0 metal HUB with seven downstream ports
Battery Charging Specification BC1.2 (SDP), maximum 31.5 W (6.3 A @ 5 V)

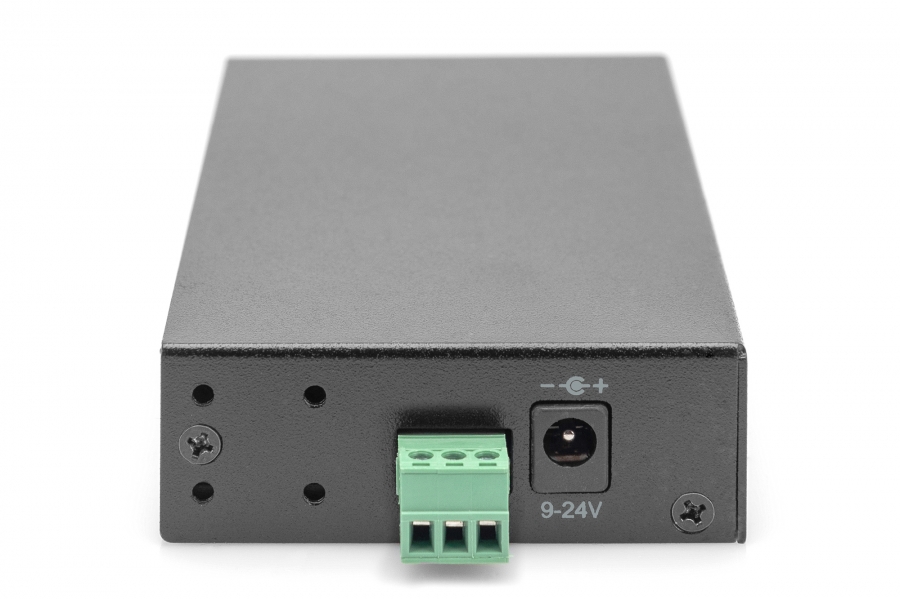

Power supply: +9 V to +24 V DC via terminal block or DC jack (Dimensions: (OD) 5.50mm x (ID) 2.0mm (L) x 10mm)
Automatic detection of input polarity at the power terminal block
ESD protection up to 15 kV for all ports

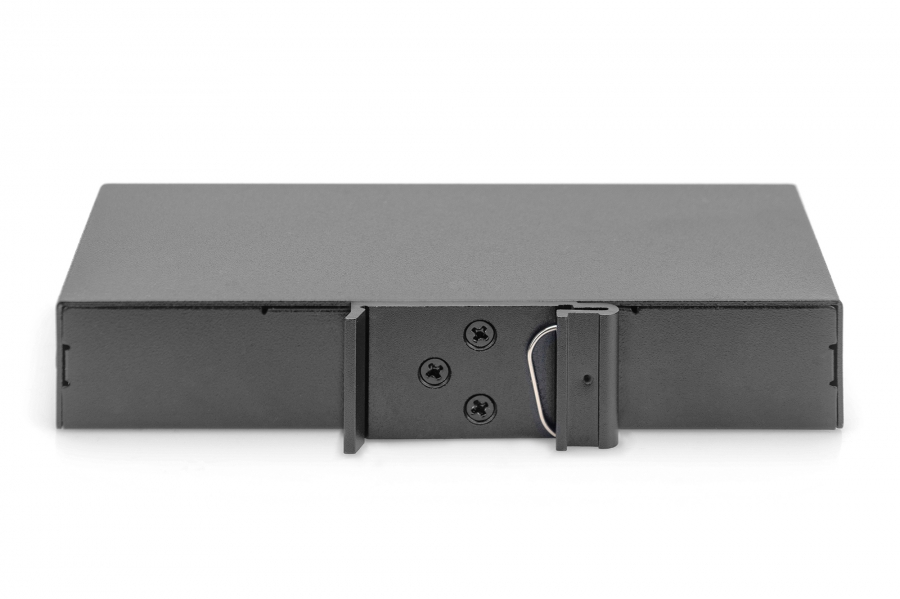

Includes detachable wall mounting kit and DIN rail kit
Compact industrial design with metal housing
Weight: 304 g
Colour: black
Dimensions: L 13,9 x W 6,9 x H 2,5 cm
Operating temperature: 0°C - 40°C (35°F to 100°F)

Package content:
1 x USB HUB
1 x cable USB A plug to USB B plug, length approx. 2 m
2 x wall mounting plates with screw package
1 x Top-hat rail mounting: 25 mm
1 x 3 pin terminal block
Manual

Platums(cm)18.7
Grums(cm)14
Augstums(cm)5
Svars(kg)0.64
Tilpums(cm3)1309
Izcelsmes valstsCN
