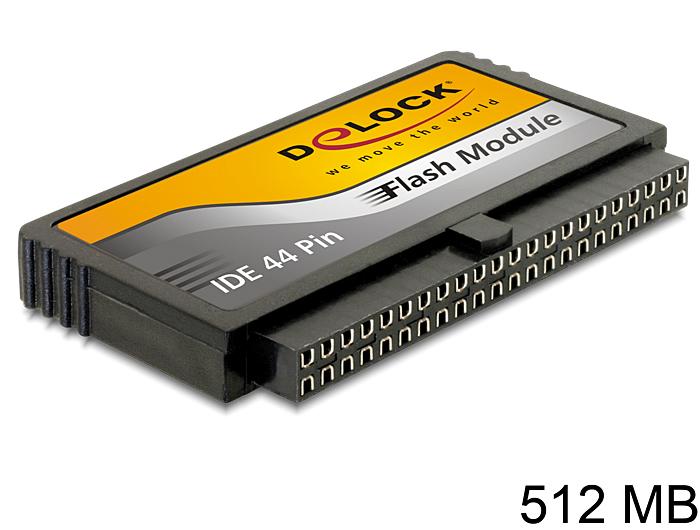

Delock IDE Flash Module 44Pin 512MB vertical

DELOCK

54160

New

Description The Delock 512MB 44pin IDE Flash memory module with its dimensions of 50,3 x 5,8 x 27,3mm very small and ideal for usage under rough environmental circumstances and for the application in computers, Set-Top boxes and other devices in industry. A safe data transfer is provided by the integrated Error Correction Code (ECC). Power-save mode and automatical shut-down enhance the energy...

More details

Description
The Delock 512MB 44pin IDE Flash memory module with its dimensions of 50,3 x 5,8 x 27,3mm very small and ideal for usage under rough environmental circumstances and for the application in computers, Set-Top boxes and other devices in industry. A safe data transfer is provided by the integrated Error Correction Code (ECC). Power-save mode and automatical shut-down enhance the energy efficiency.
Specification
• Storage capacity 512MB
• IDE 44pin interface
• Operating voltage 3.3V or 5V
• Operating temperature: -10°C to +70°C
• Endurance 2.000.000 Program / Erase cycles
• Static wear leveling
• Auto Sleep & Power-Down mode
• Integrated ECC function for high reliability of data transfer rate
• PIO Modus 0-6, MWDMA Modus 0-2, UDMA Modus 0-4
• Speed up to 20MB/s Read, 10MB/s Write
• Power consumption max. 150mA
• Power supply via 22th Pin
• Burst Transfer Rate: 66,6MB/sek.
• MTBF : > 3.000.000 Std.
• Master and Slave switch
• Vibration: 5G ( 7~200Hz)
• Shock: 50G/10ms
• Size: 50,3 x 5,8 x 27,3mm (WxLxH)
Package content
• 512MB IDE Flash module
Package
• antistatic cover
