Level One LevelOne IPCam FCS-3304 Z 4x Dome Out 3MP H.265 IR 8W PoE

LEVEL ONE

FCS-3304

New

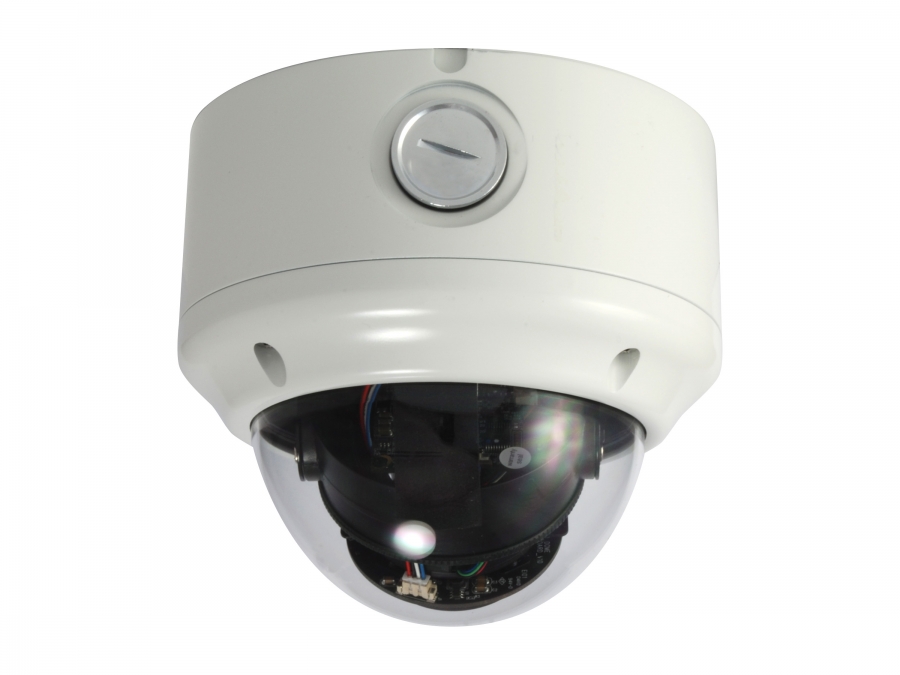

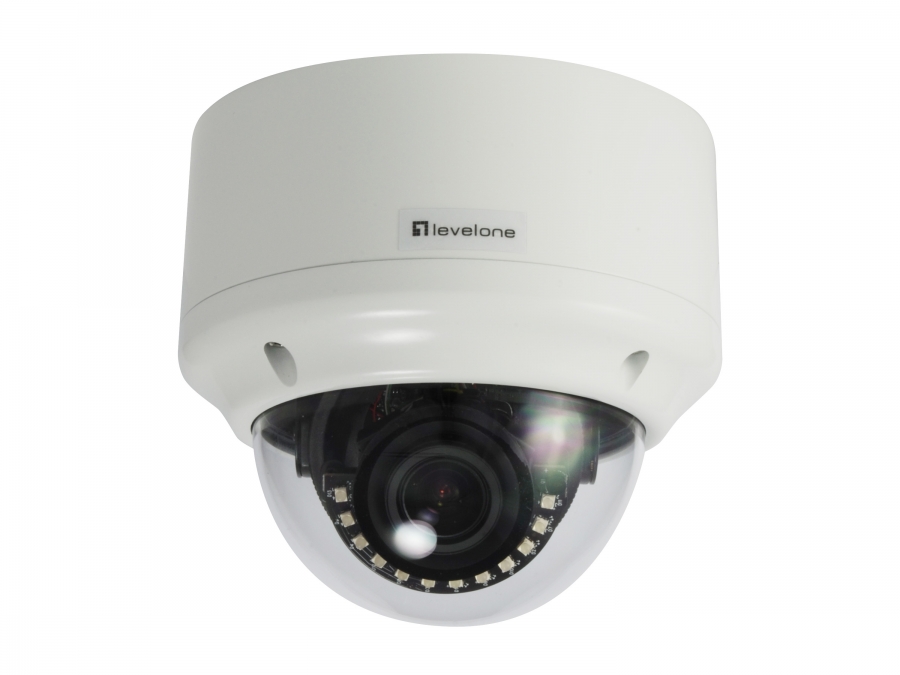

The LevelOne FCS-3304 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP66 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3304 offers 3-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlY
Wide Dynamic Range (WDR)Y
Day/night modeY
Infrared (IR) cut-off filterY
CertificationCE/FCC
Mounting typeCeiling/wall
Product colourWhite
Form factorDome
LED indicatorsPower
Protection featuresVandal proof
International Protection (IP) codeIP66
IK codeIK10
WeatherproofY
Country of originTaiwan
Minimum illumination0.01 lx
White balanceAuto, Manual
Camera shutter speed1/5 - 1/8000 s
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Number of lenses1
Optical zoom4.3x
Maximum aperture number2.8
Minimum aperture number1.4
Focal length range2.8 - 12 mm
Night visionY
Night vision distance30 m
LED typeIR
Maximum resolution2048 x 1536 pixels
Total megapixels3 MP
Video formats supportedRAW
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions320 x 240, 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
Frame rate30 fps
Noise reductionY
Noise reduction technologyUltra 2D noise reduction, Ultra 3D noise reduction
Automatic gain controlY
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Flip & mirrorY
Image stabilizerY
Audio system2-way
Audio input channels1
Audio output channels1 channels
Audio codecsMono, PCM, G.711
Audio detectionY
Ethernet LANY
Wi-FiN
BluetoothN
Networking standardsIEEE 802.3af
Supported network protocolsIPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP
Number of users16 user(s)
Quality of Service (QoS) supportY
Built-in HDDN
Card reader integratedN
Ethernet LAN (RJ-45) ports1

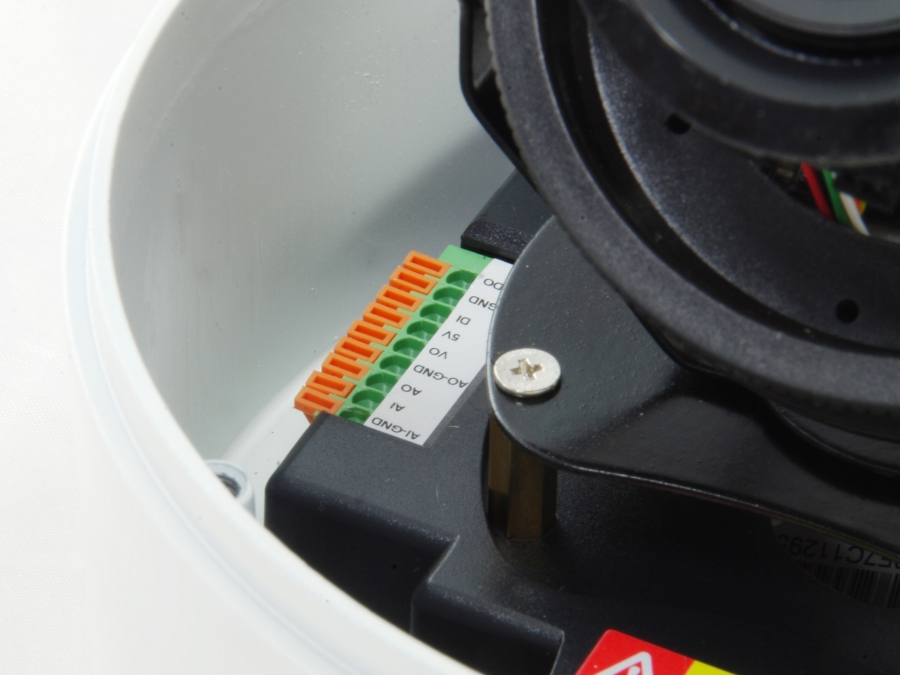

Terminal block portY
DC-in jackY
InterfaceRJ-45
Password protectionY
Password protection typeUser
Video motion detectionY
IP address filteringY
HTTPS encryptionY
MirrorY
Reset buttonY
Power source typePoE
Power consumption (typical)8 W
DC output voltage12
Power over Ethernet (PoE)Y
Operating temperature (T-T)40 - 50 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)20 - 80%
Width168.5 mm
Depth168.5 mm
Height131.2 mm
Diameter16.9 cm
Weight889 g
Package width208 mm
Package depth253 mm
Package height151 mm
Package weight1.3 kg
Package volume1298 cm³
Package typeBox
Number of cameras1
Screws includedY
ManualY
Resource CDY
Browser supportedInternet Explorer 8.0
Harmonized System (HS) code85258900
Master (outer) case width270 mm
Master (outer) case length454 mm
Master (outer) case height490 mm
Master (outer) case gross weight9.79 kg
Products per master (outer) case6 pc(s)
