Level One LevelOne IPCam FCS-5096 Z 4x Fix In 2MP H.264 IR 16W PoE

LEVEL ONE

FCS-5096

New

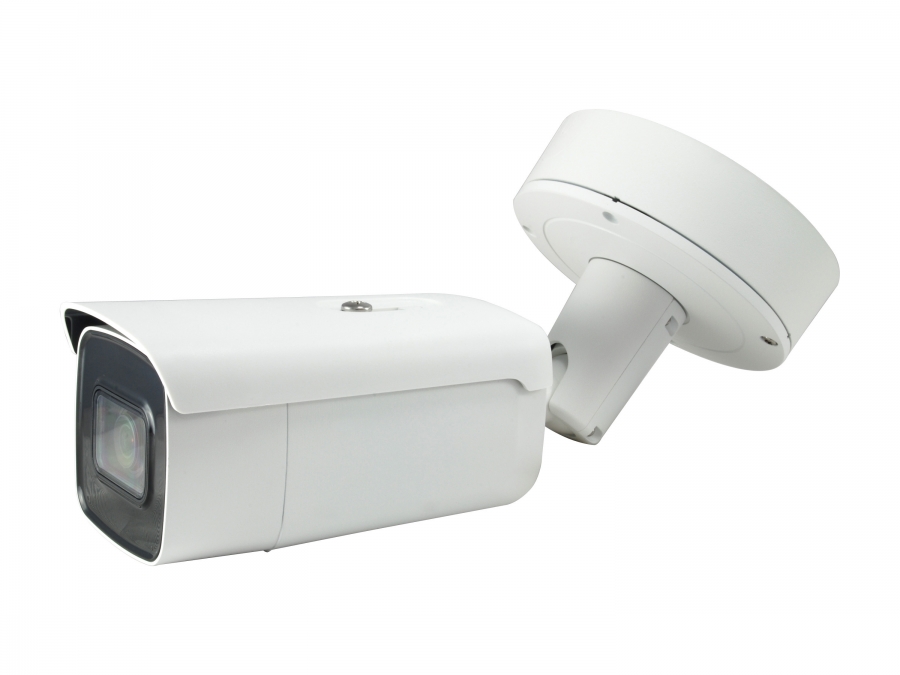

The LevelOne FCS-5096 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 2-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-5096 should be an essential part of any security deployment that requires smart, reliable outdoor cameras.

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlY
Wide Dynamic Range (WDR)Y
Day/night modeY
Alarm input/outputY
Infrared (IR) cut-off filterY
CertificationCE/FCC

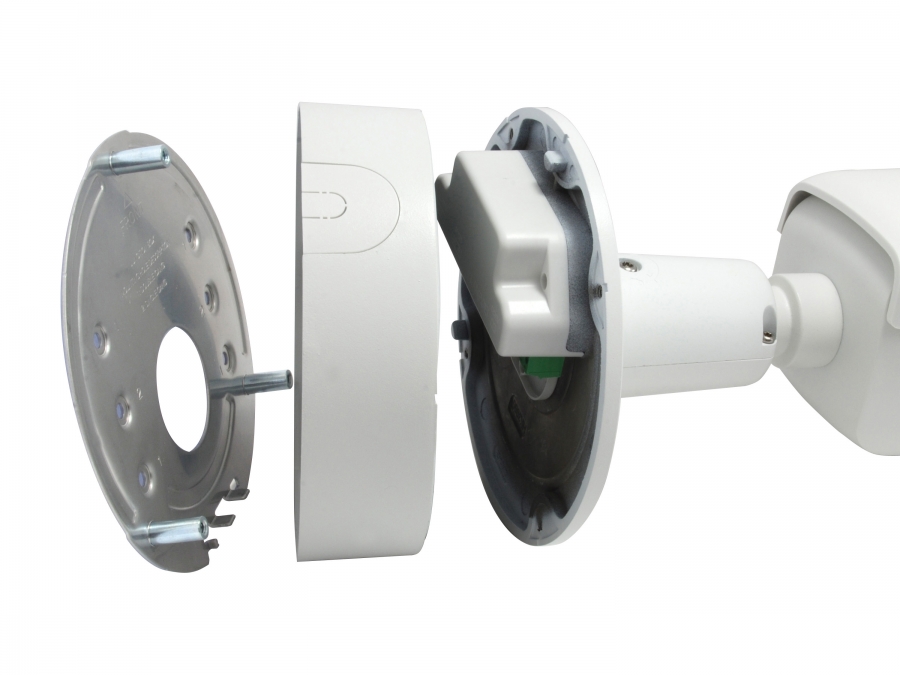

Mounting typeCeiling/wall
Product colourWhite
Form factorBullet
LED indicatorsPower
Protection featuresDust resistant, Water resistant
International Protection (IP) codeIP67
IK codeIK10
Country of originChina
Minimum illumination0.005 lx
Lens viewing angle, horizontal105°
Lens viewing angle, vertical56°
Lens viewing angle, diagonal126°
White balanceAuto
Camera shutter speed1/3 - 1/100000 s
Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanY
Number of lenses1
Zoom capabilityY
Optical zoom4.3x
Focal length range2.8 - 12 mm
Night visionY
Night vision distance50 m
LED typeIR
Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedAVI
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes240p, 360p, 480p, 720p, 960p, 1080p
Frame rate60 fps
3D NR (Noise Reduction)Y
Full HDY
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Privacy maskingY
Back Light Compensation (BLC)Y
Audio input channels1
Audio output channels1 channels
Audio codecsG722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Ethernet LANY
Wi-FiN
BluetoothN
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3at
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,IGMP, 802.1X, QoS, IPv6, Bonjour
Cabling technology10/100Base-T(X)
Number of users32 user(s)
Quality of Service (QoS) supportY
Built-in HDDN
Card reader integratedY
Compatible memory cardsMicroSD (TransFlash), SDHC, SDXC
Maximum memory card size128 GB
Ethernet LAN (RJ-45) ports1
Composite video out1
Terminal block portY
DC-in jackY
InterfaceRJ-45
Password protectionY
Video motion detectionY
Intelligent Video Surveillance (IVS) system featuresFace detection
Anti-flickerY
HeartbeatY
MirrorY
Digital watermarkY

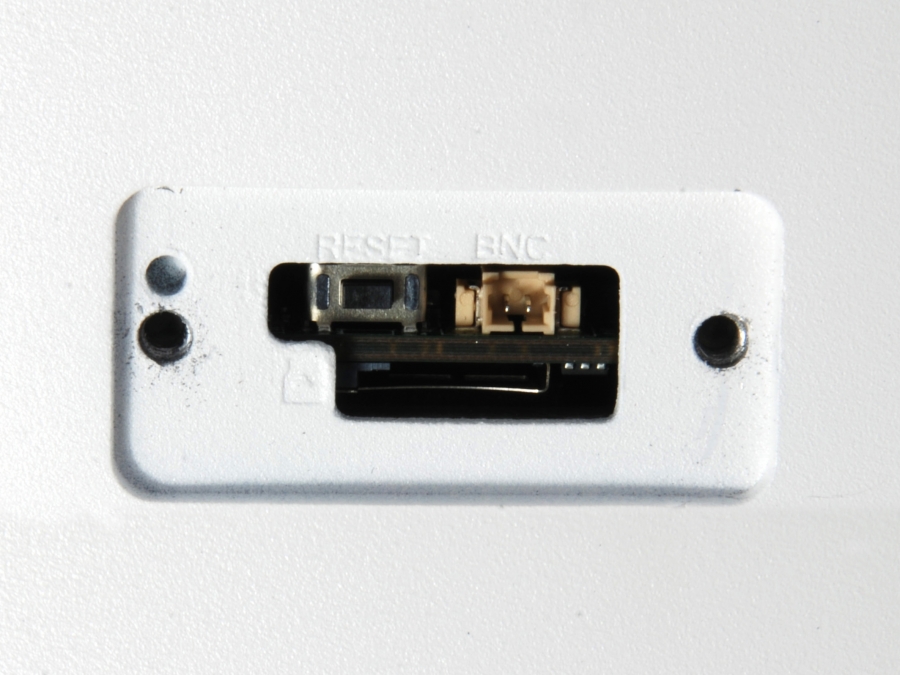

Reset buttonY
Behavior analysisIntrusion detection, Line crossing detection
Power source typeDC, PoE
Power consumption (max)15.5 W
Power consumption (Power over Ethernet (PoE))17.5 W
DC output voltage12
DC output current1.3 A
Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Width332.7 mm
Depth332.7 mm
Height144.1 mm
Weight1.89 kg
Package width185 mm
Package depth200 mm
Package height385 mm
Package weight2.28 kg
Package typeBox
Number of cameras1
Screws includedY
Resource CDY
Browser supportedIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Harmonized System (HS) code85258900
Master (outer) case width570 mm
Master (outer) case length410 mm
Master (outer) case height595 mm
Master (outer) case gross weight15.5 kg
Products per master (outer) case9 pc(s)
