Level One LevelOne IPCam FCS-4203 Z 4x Dome Out 2MP H.265 IR5.5W PoE

LEVEL ONE

FCS-4203

New

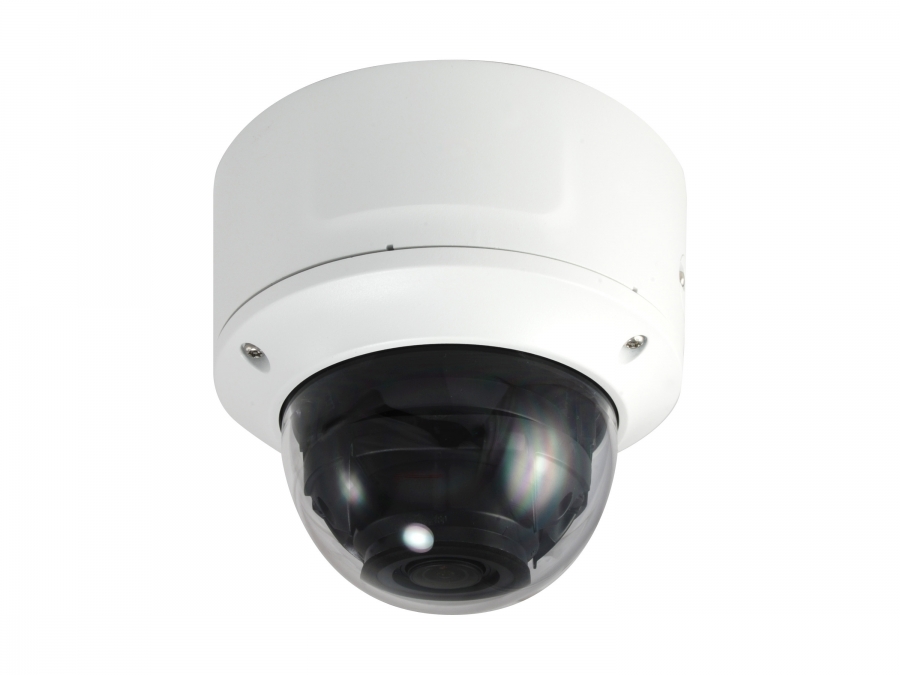

The LevelOne FCS-4203 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP66 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-4203 offers 2-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Day/night modeY
Infrared (IR) cut-off filterY
CertificationCE/FCC
Mounting typeCeiling/wall
Product colourWhite
Form factorDome
LED indicatorsPower
Protection featuresVandal proof
International Protection (IP) codeIP66
IK codeIK10
Country of originChina
Minimum illumination0.014 lx
Field of view (FOV) angle112°
Camera shutter speed1/3 - 1/10000 s
Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanY
Number of lenses1
Optical zoom4.3x
Focal length range2.8 - 12 mm
Focus adjustment1.4
Night visionY
Night vision distance30 m
LED typeIR
Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedAVI
Video compression formatsH.264, M-JPEG
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Frame rate30 fps
Full HDY
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Privacy maskingY
Audio system2-way
Audio input channels1
Audio output channels1 channels
Audio formats supportedG.711, G.726
Voice codecsMP2L2, G.711, G.722.1, G.726
Ethernet LANY
Wi-FiN
BluetoothN
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsTCP/IP (IPv4), UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Cabling technology10/100Base-T(X)
Number of users16 user(s)
Quality of Service (QoS) supportY
Built-in HDDN
Card reader integratedY
Compatible memory cardsSD, SDHC, SDXC
Maximum memory card size128 GB
Ethernet LAN (RJ-45) ports1

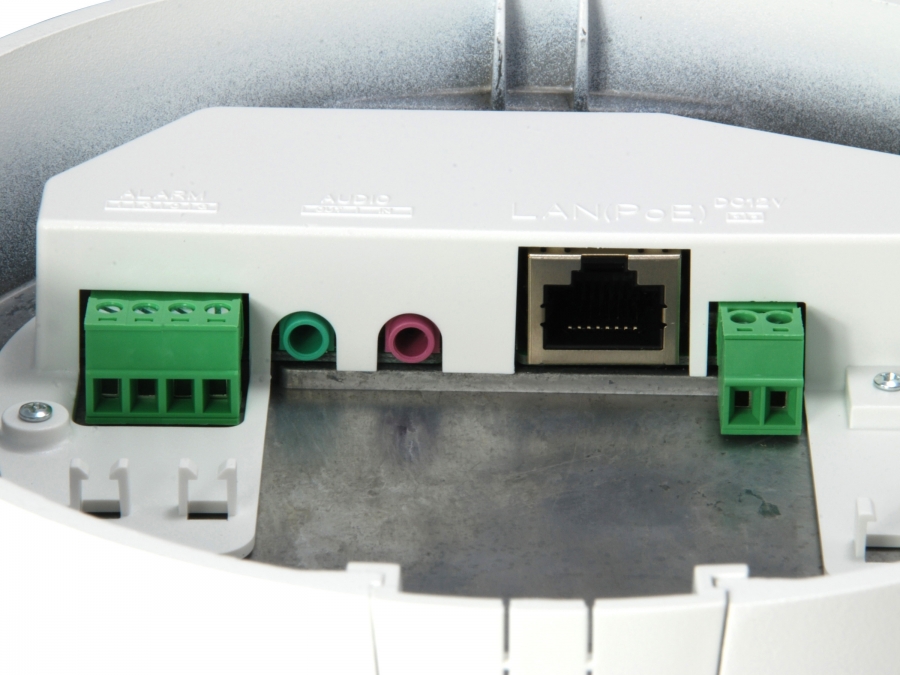

Terminal block portY
DC-in jackY
InterfaceRJ-45
Password protectionY
IP address filteringY
HTTPS encryptionY
Anti-flickerY
HeartbeatY
MirrorY
Digital watermarkY
Web browserY

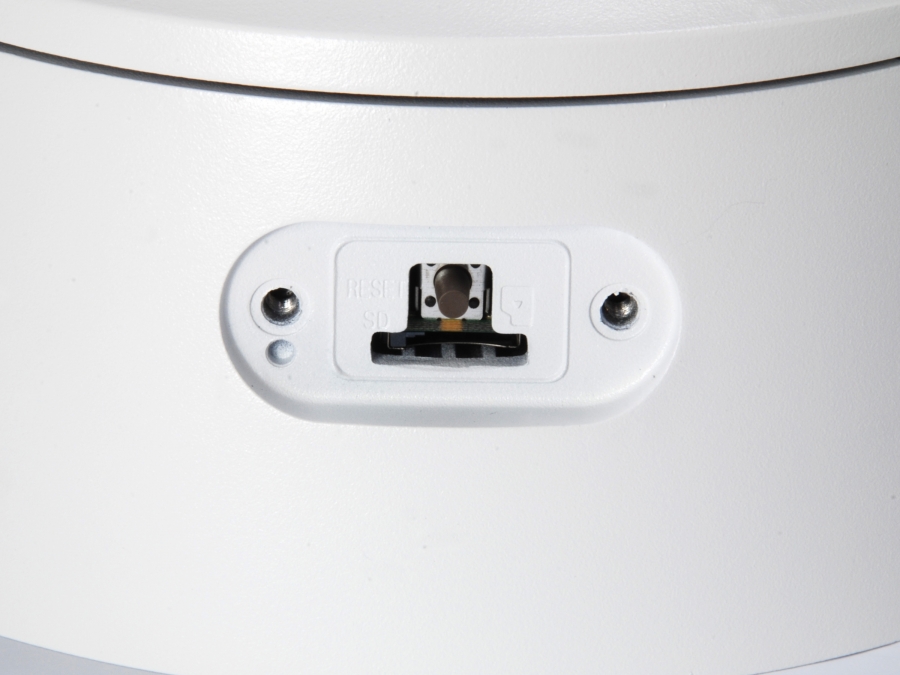

Reset buttonY
Power source typePoE
Power consumption (max)5.5 W
DC output voltage12
Power over Ethernet (PoE)Y
Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Width133.1 mm
Depth153.4 mm
Height153.4 mm
Weight1.29 kg
Package width174 mm
Package depth173 mm
Package height244 mm
Package weight1.82 kg
Package typeBox
Number of cameras1
Screws includedY
Resource CDY
Data transfer rate16 Mbit/s
Browser supportedInternet Explorer 9
Sustainability certificatesRoHS
Harmonized System (HS) code85258900
Master (outer) case width365 mm
Master (outer) case length372 mm
Master (outer) case height504 mm
Master (outer) case gross weight14.6 kg
Products per master (outer) case8 pc(s)
