Level One LevelOne IPCam FCS-3402 Dome Out 2MP H.265 IR 7W PoE

LEVEL ONE

FCS-3402

New

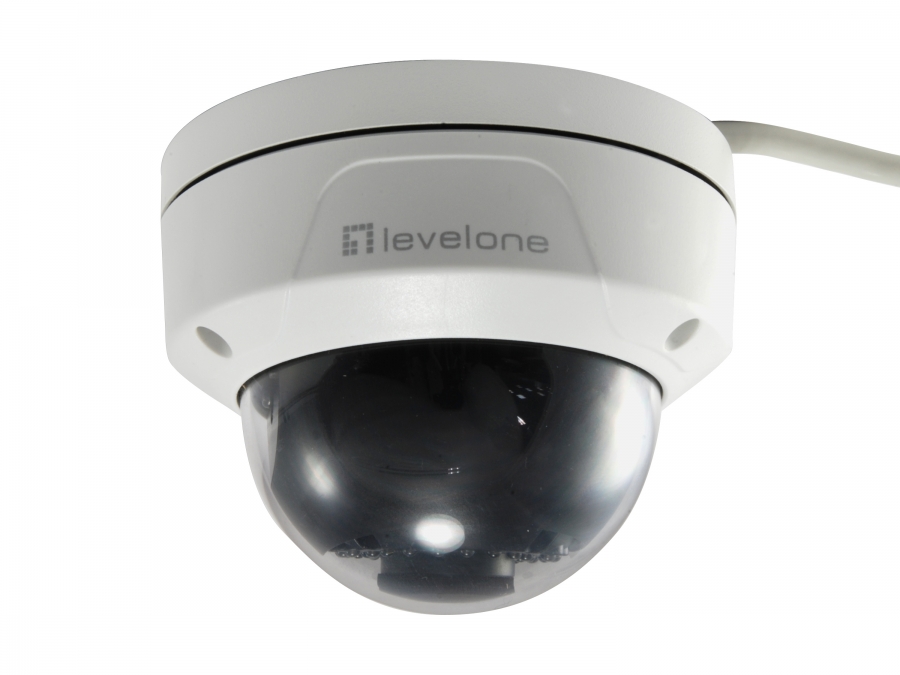

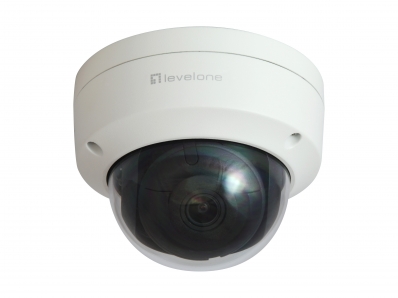

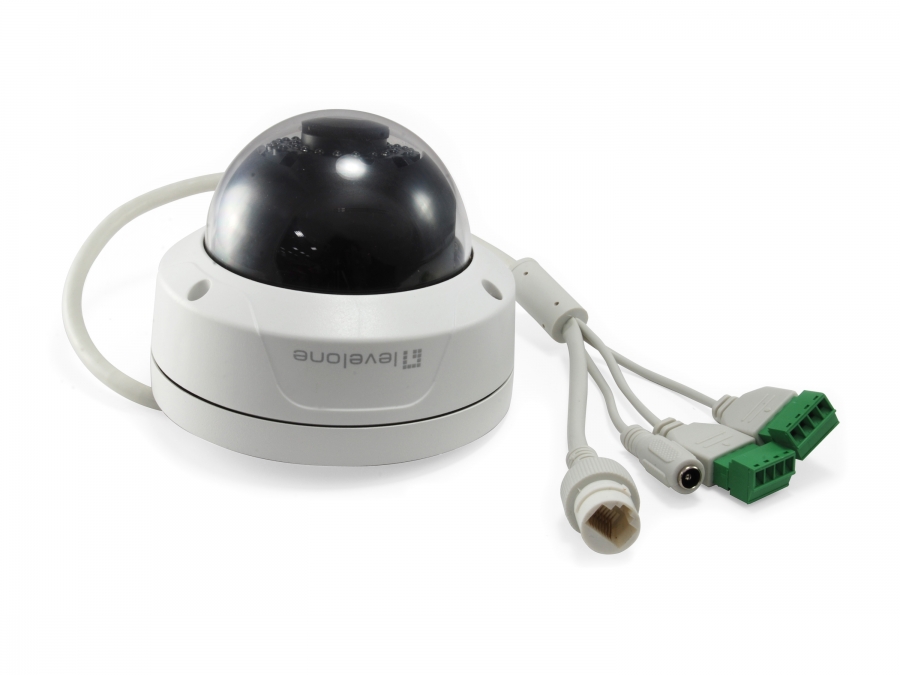

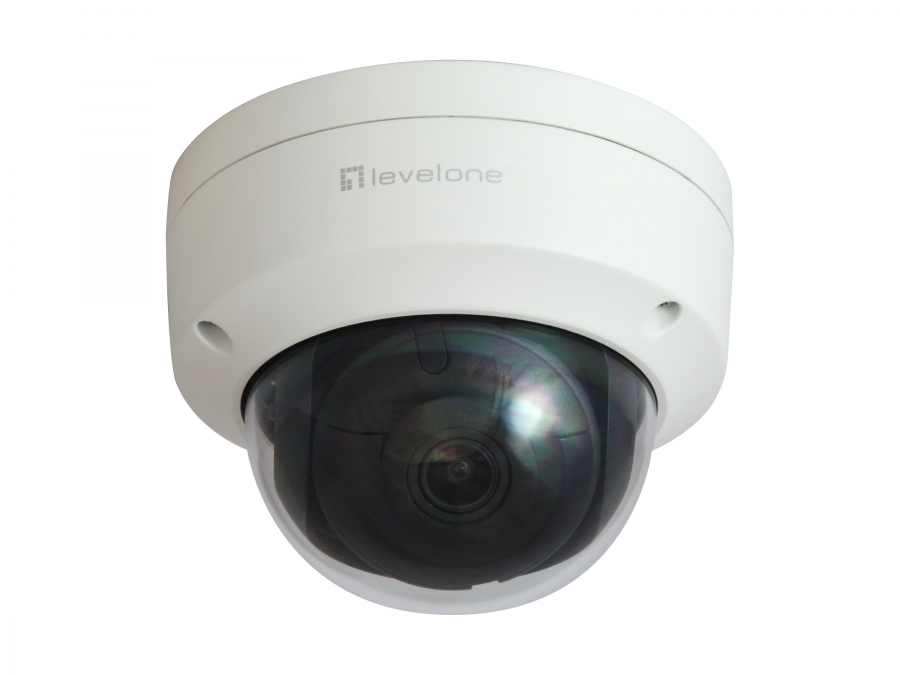

The LevelOne FCS-3402 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 2-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-3402 Should be an essential part of any security deployment that requires smart, reliable outdoor cameras.

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Day/night modeY
Infrared (IR) cut-off filterY
CertificationCE, FCC
Mounting typeCeiling/wall
Product colourWhite
Form factorDome
LED indicatorsPower
Protection featuresDust resistant, Heat resistant, Rain proof, Snow resistant, Vandal proof
International Protection (IP) codeIP67
IK codeIK10
WeatherproofY
Country of originChina
Field of view (FOV) angle86°
Lens viewing angle, vertical46°
Lens viewing angle, diagonal102°
Camera shutter speed1/3 - 1/100000 s
Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanY
Number of lenses1
Zoom capabilityY
Digital zoom8x
Focus adjustment2.0
Fixed focal length4 mm
Night visionY
Night vision distance30 m
LED typeIR
Infra-red wavelength850 nm
Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264, H.265, M-JPEG
Supported graphics resolutions320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate30 fps
Noise reductionY
Noise reduction technology3D noise reduction
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Privacy maskingY
Back Light Compensation (BLC)Y
Region of Interest (ROI) encodingY
Ethernet LANY
Wi-FiN
BluetoothN
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocolsTCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP,SMTP,FTP,SAMBA UPnP, SNMP, Bonjour
Number of users32 user(s)
Built-in HDDN
Card reader integratedY
Compatible memory cardsMicroSDHC, MicroSDXC
Ethernet LAN (RJ-45) ports1
Microphone inY
Headphone outputs1
Terminal block portY
DC-in jackY
Password protectionY
Video motion detectionY
Active tampering alarmY
Anti-flickerY
HeartbeatY
MirrorY
Digital watermarkY
Reset buttonY
Power source typeDC, PoE
Power consumption400 mA
Power consumption (max)5 W
Power consumption (Power over Ethernet (PoE))7 W
Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mobile operating systems supportedAndroid, iOS
Depth82 mm
Diameter11.1 cm
Weight500 g
Package width134 mm
Package depth111 mm
Package height108 mm
Package weight502 g
Package typeBox
Number of cameras1
Screws includedY
Resource CDY
Browser supportedIIE7+, Chrome18-42, Firefox5.0+, Safari5.02+
Sustainability certificatesRoHS
Harmonized System (HS) code85258900
Master (outer) case width111 mm
Master (outer) case length111 mm
Master (outer) case height111 mm
Master (outer) case gross weight608 g
Products per master (outer) case24 pc(s)
