Delock Keystone Module SC Simplex female to SC Simplex female with laser protection flip inside

DELOCK

86832

New

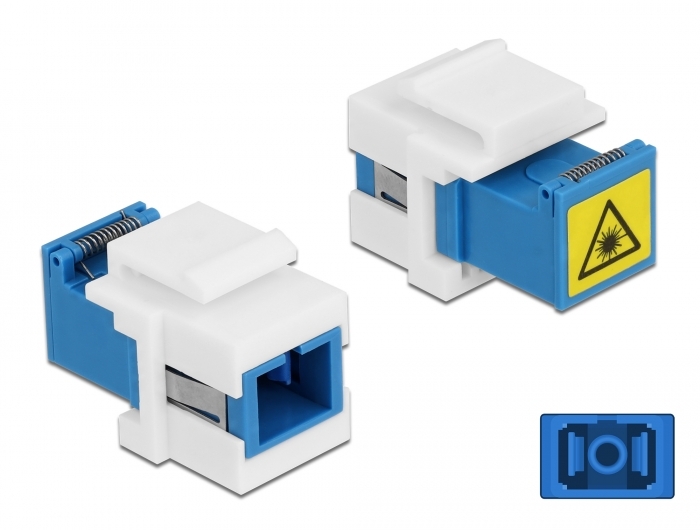

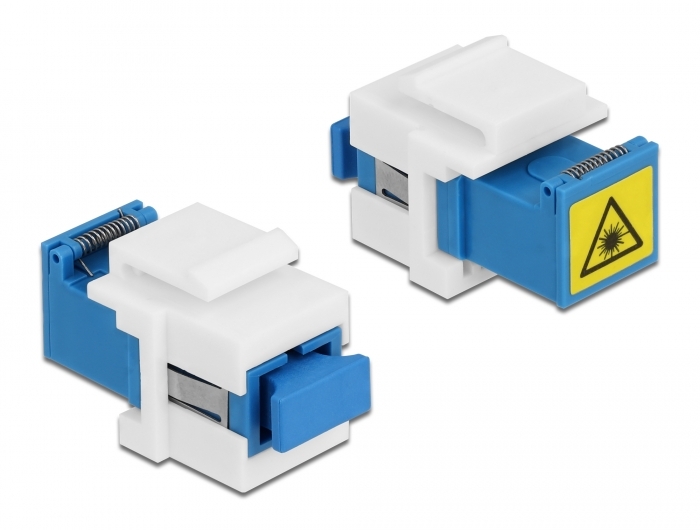

This Keystone module with SC Simplex coupler by Delock can be used to connect two optical fiber male connectors to each other. It is suitable for mounting in e.g. Keystone patch panels, face plates or surface-mount boxes.

Protection against laser radiation
The integrated flip on the coupling ensures protection against laser radiation.

Protection by dust cover
The coupling is equipped with an appropriate cap to protect the sleeve from dust and to keep it clean.
System requirements:
• A free SC Simplex male port
Specification:
• Connectors:
  1 x SC Simplex female >
  1 x SC Simplex female
• For single-mode fiber
• Ceramic sleeve
• With a laser protection flip and a dust protection cap
• For Keystone ports with 20 x 15 mm
• Operating temperature: -40 °C ~ 85 °C
• Material: plastic
• Colour: blue / white
• Dimensions (LxWxH): ca. 32 x 20 x 15 mm
Package content:
• Keystone module
Data sheet:
http://www.delock.de/produkt/86832/pdf.html?sprache=en
