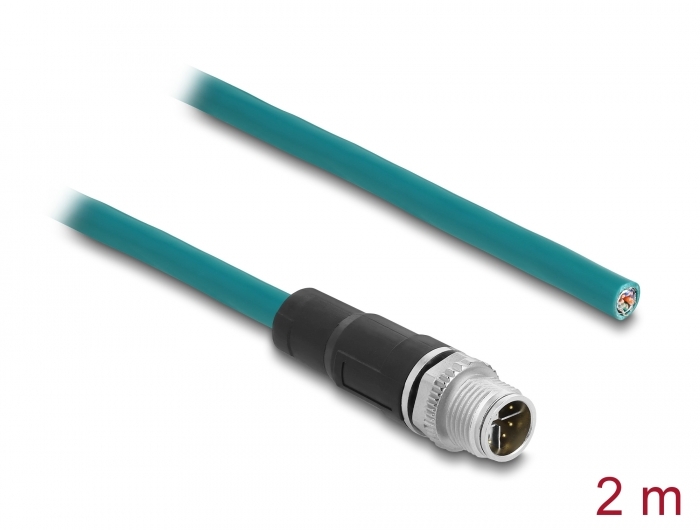

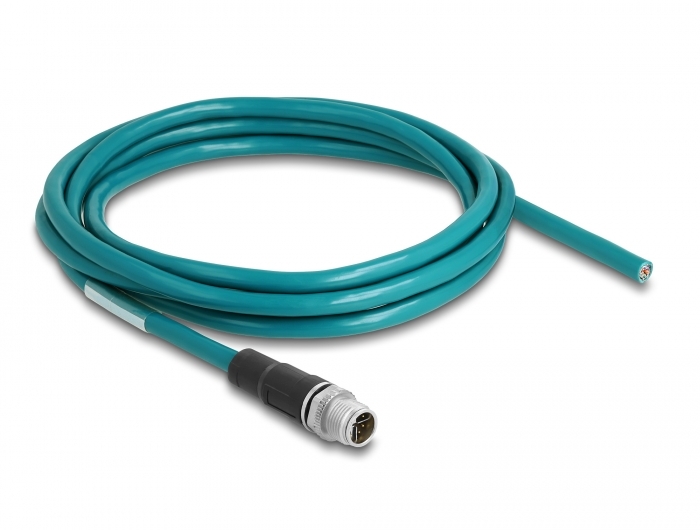

Delock Network cable M12 8 pin X-coded to open wire ends PVC 2 m

DELOCK

87851

New

This industrial Ethernet cable by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.
With the open wire ends, the cable can be connected directly to a device or e.g. to a distribution box, depending on the application.
System requirements:
• A free M12 female port
Specification:
• Connectors:

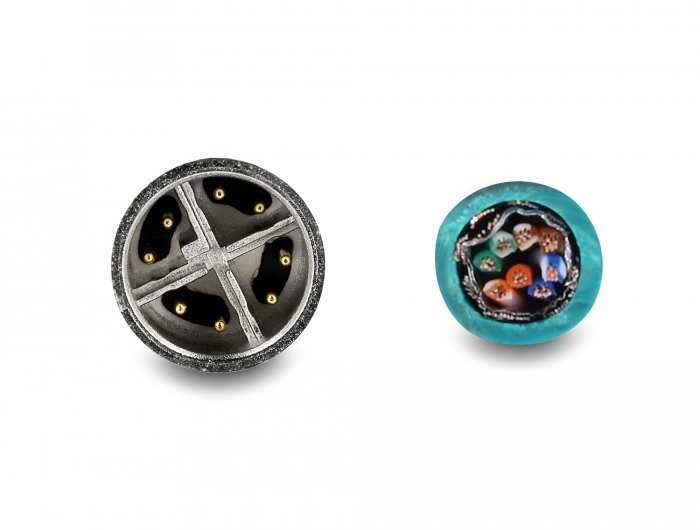

  1 x M12 male 8 pin X-coded
  8 x open wires
• Cat.5e specification
• SF/UTP
• Shielding: aluminium foil, transparent foil, tinned copper braiding
• Copper cable
• Cable gauge: 26 AWG
• Cable diameter: ca. 6.4 mm
• Cable jacket material: PVC
• Max. number of bending cycles: 1,000,000
• Smallest bending radius:
  25.6 mm with fixed installation
  51.2 mm with flexible installation
• UV-resistant
• Flammability class: FT2
• Operating temperature: -20 °C ~ 80 °C
• Colour: water blue
• Length incl. connectors: ca. 2 m
Package content:
• Patch cable
Data sheet:
http://www.delock.de/produkt/87851/pdf.html?sprache=en
