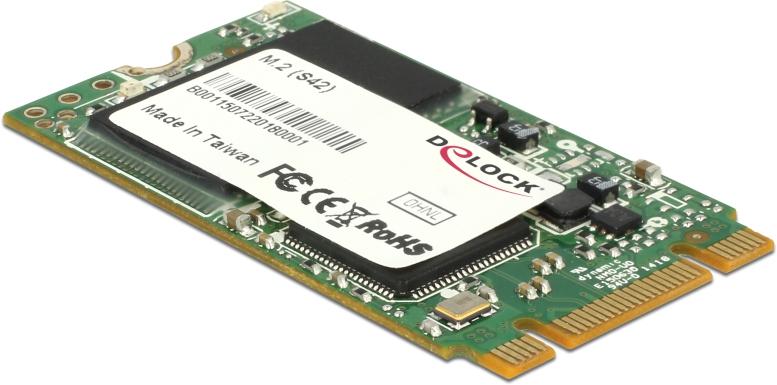

Delock M.2 SATA 6 Gbs SSD Industrial 32 GB (S42) Toshiba MLC -40 °C ~ 85 °C

DELOCK

54785

New

This flash module by Delok, with a length of 42 mm (2242), is a memory in M.2 format for the SATA interface. It supports the SATA 6 Gb/s specification and convinces with its effective boot time and a lower power consumption than common hard disk drives. The module supports the Delock iSmart function, is stable to vibration and has an extended temperature range from -40°C ~ +85°C. Delock ...

More details

Description:
This flash module by Delok, with a length of 42 mm (2242), is a memory in M.2 format for the SATA interface. It supports the SATA 6 Gb/s specification and convinces with its effective boot time and a lower power consumption than common hard disk drives. The module supports the Delock iSmart function, is stable to vibration and has an extended temperature range from -40°C ~ +85°C. Delock iSmart is a powerful and easy-to-use monitoring tool. It allows system integrators to track important disk information, such as temperature, storage space, bad blocks, lifespan and firmware, all under one platform. The intelligent recovery system provides testing and data recovery during voltage fluctuations.

Specification:
• Capacity: 32 GB
• Connector: 59 pin M.2 key B+M male
• Interface: SATA 6 Gb/s
• Form factor: M.2 2242
• Chip: Toshiba
• Flash Type: MLC
• Maximum channel: 2
• Maximum speed: read 450 MB/s - write 50 MB/s
• Maximum write cycles: 3000
• Maximum power consumption: 1.4 W (3.3 V x 422 mA)
• Thermal Sensor: yes
• H/W Write protect: optional
• ATA security: yes
• iSmart.: yes
• Dimensions (LxWxH): 42 x 22 x 3.2 mm
• Vibration: 20G @ 7 ~ 2000 Hz
• Shock: 1500G @ 0.5 Ms
• MTBF: >3 million hours
• Storage temperature: -55 °C ~ 95 °C
• Operation temperature: Industrial grade -40 °C ~ 85 °C

System requirements:
• A free M.2 port with key B or key M

Package content:
• M.2 module

M2.NGFF
