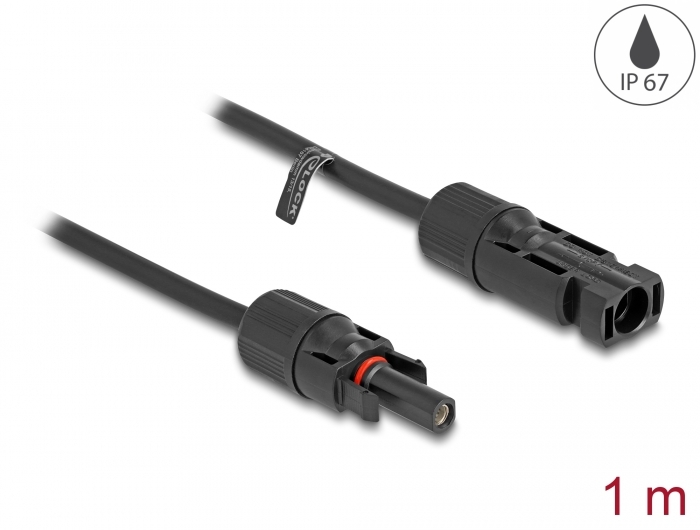

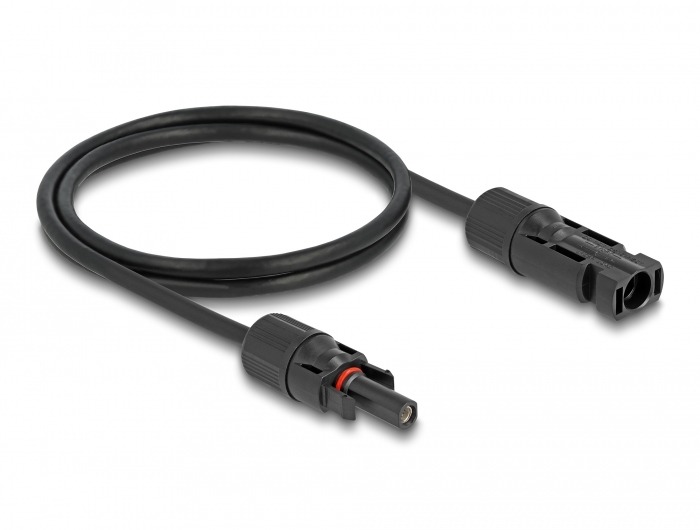

Delock DL4 Solar Cable 6 mm² male to female 1 m black

DELOCK

88209

New

This DL4 solar cable by Delock can be used to transmit power obtained from a photovoltaic system.

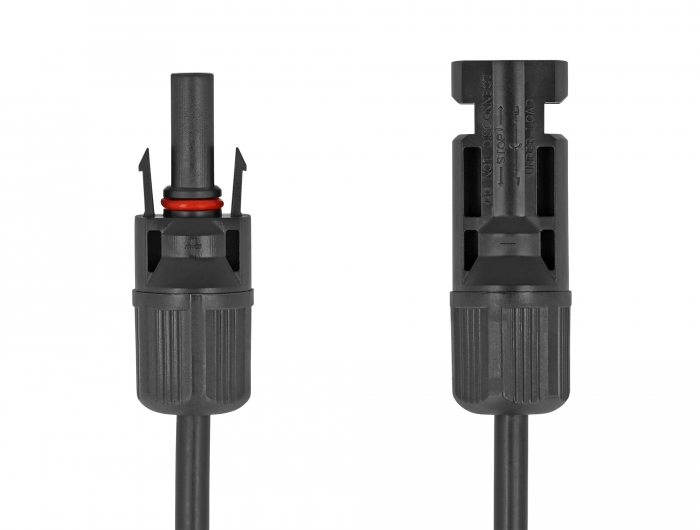

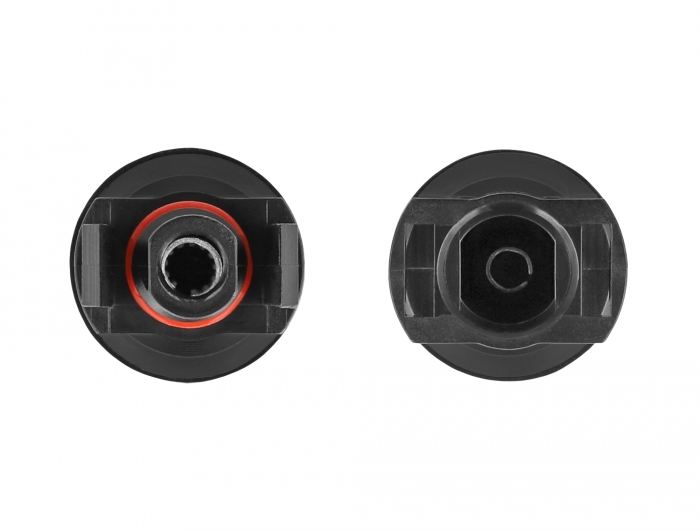

DL4 connectors
The DL4 plugs and sockets have a snap-in function, which avoids unwanted interruptions and ensures a secure connection. The connection can be released again with the appropriate tool.

IP67 dust and waterproof
The DL4 solar cable is protected from dirt and moisture.
System requirements:
• A free DL4 port
Specification:
• Connectors:
  1 x DL4 male
  1 x DL4 female
• Cable cross section: ca. 6 mm²
• Compatible with MC4, TS4, QC4
• Operating temperature: -40 °C ~ 90 °C
• Cable diameter: ca. 5 mm
• Protection class: IP67
• Voltage: max. 1500 V
• Colour: black
• Length incl. connectors: ca. 1 m
Package content:
• DL4 cable
Data sheet:
http://www.delock.de/produkt/88209/pdf.html?sprache=en
