Description
Specification / Specifications 58959

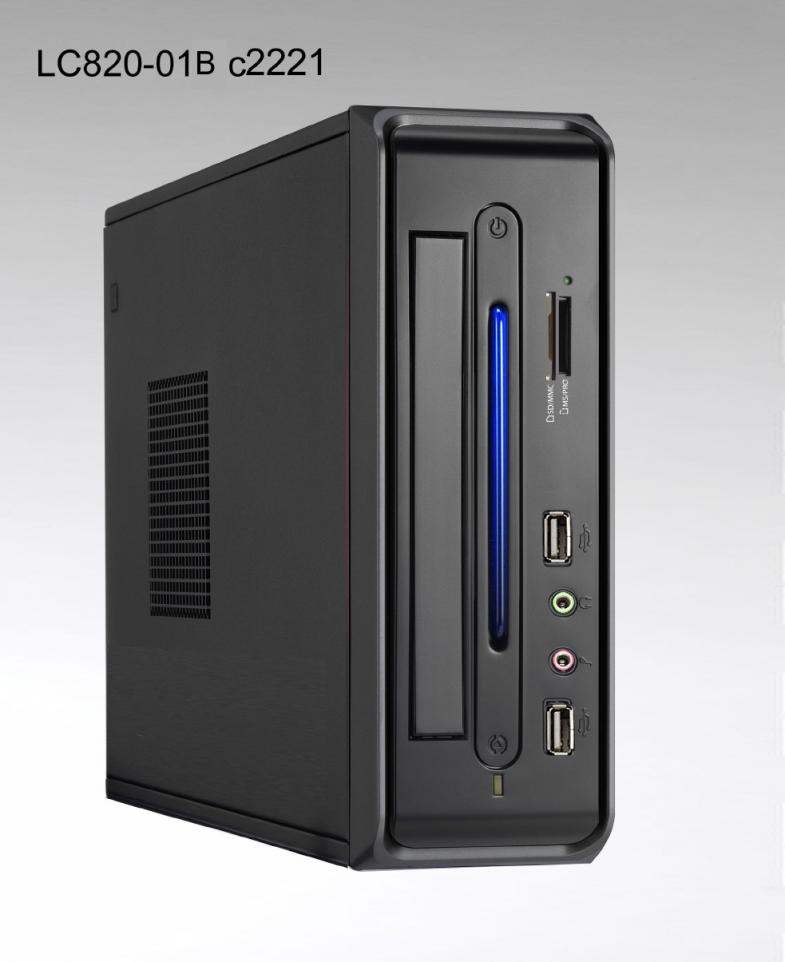

Designation 82001b (black)
Housing / Case Material: Steel / Steel 0,6mm
M / B support Mini-ITX VIA 17 x 17 cm
Jetway (VIA-Solution)
Intel D945GCLF Atom270 Solutions
Jautāt
Warning: Last items in stock!
Availability date:
Description
Specification / Specifications 58959
Designation 82001b (black)
Housing / Case Material: Steel / Steel 0,6mm
M / B support Mini-ITX VIA 17 x 17 cm
Jetway (VIA-Solution)
Intel D945GCLF Atom270 Solutions
Dimensions / Dimensions mm 204 x 68 x 305mm
W x H x T
Drives
Drive Bays
Drive Bay (Internal 2.5 ") 1
Slim ODD / Slim CD-ROM 1
Internal power supply DC-DC Converter 12V external AC DC Adapter 12V 6A 65W ca.
PSU Support internal DC-DC converter 12V external AC DC Adapter 12V 6A 65W ca.
Front ports, switches
Switch Controls
Power On / Off
USB 2.0 (x2)
Micro in
Audio out
display
Indicators
LED HDD
Standard rear wall panel from the motherboard
Standard I / O shield
Rear Window
Slots No
n / A
Slot Opening
System Protection n / a
System Security
System fan internal 60 x 60mm
Cooling fans internal 60 x 60mm
Color / Color black bezel black / black front: black
Weight / weight kg net 1.82 kg
gross 2.1 kg
Special / Special Card Reader 9 in 1 for SC / MMC and MS / MS Pro
Card Reader 9 in 1 for SD / MMC and MS / MS Pro
Packaging content
Package included 1 case with internal DC-DC board / case with internal power board
2. External AC adapter / external AC adapter
3. 220V IEC power socket Cable / european powercord
4. adapter opt. Slim drive to SATA / SATA Adapter Slim ODD to
Options / Options Adapter IDE Slim Opt.Drive> IDE 44-Pin (61533)
Applications / Functions Smart mini PC, Industrial Embedded System, POS / POI, Kiosk, DVR, CCTV, CAR,
PC, thin client, set-top box, firewall, Banking Terminal, Transaction Station, ATM,
NAS, Web Payphone and Terminal Platform, etc.
Complies with CE, RoHS
