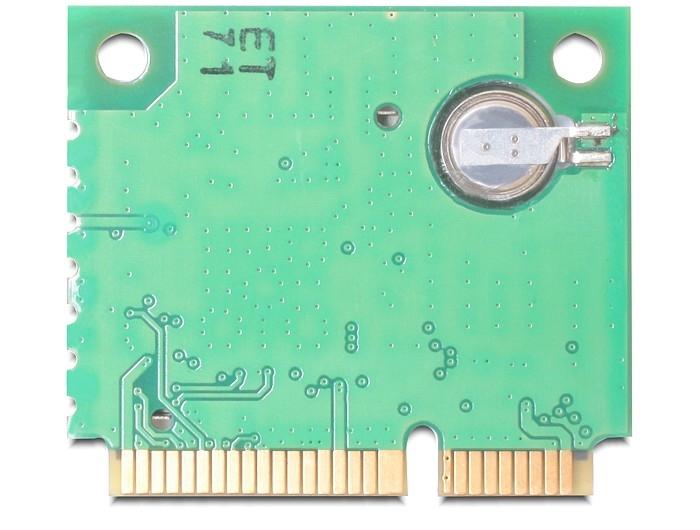

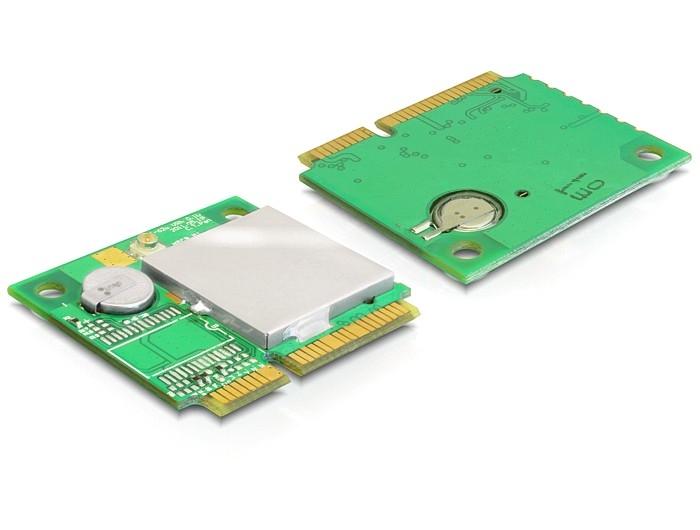

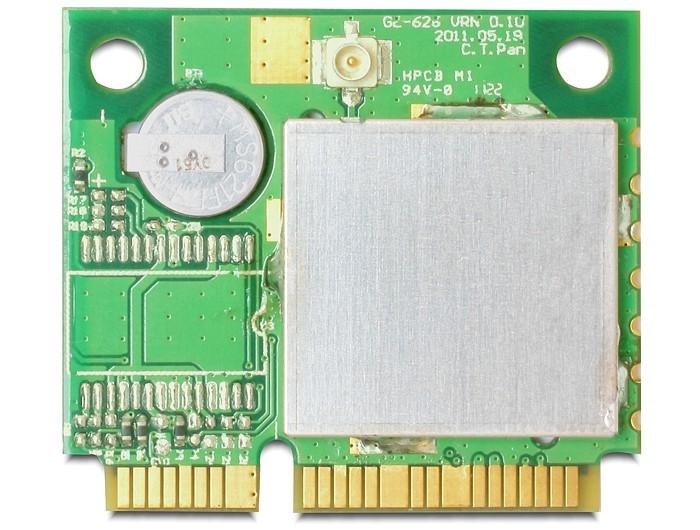

Navilock MiniPCIe GPS Receiver USB

NAVILOCK

95923

New

Description
This GNSS receiver module is designed to easily integrate into an IPC or in a notebook /netbook


More details

Description
This GNSS receiver module is designed to easily integrate into an IPC or in a notebook /netbook

Specification

• Chipset u-blox 6

• Sensitivity: -160 dBm tracking + navigation
• Update rate 1 - 5 Hz
• MiniPCI Express USB 1.1
• MHF (I-PEX) plug, U.FL (Hirose) compatible
• Protocol: GGA, GLL, GSA, GSV, RMC, VTG, TXT
• SBAS: WAAS, EGNOS, MSAS, GAGAN
• AssistNow Offline (14 days almanac date)
• Supply voltage: 3,0 ~ 3,6 V (typ. 3,3 V)
• Operation temperature:
     -40 °C ~ 85 °C without battery
     -20 °C ~ 60 °C with battery
• Current consumption: 50 mA
• Dimension: ca. 26.8 x 30.0 x 2.8 mm


System requirements
• Device with free mini PCI express (USB) slot

Package content
• Navilock MiniPCIe GPS  receiver
