Equip Wandhalterung 60"-120"/120kg 1TFT 1Gelenk Neigung

EQUIP

650339

New

The equip® 650339 TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/TV.

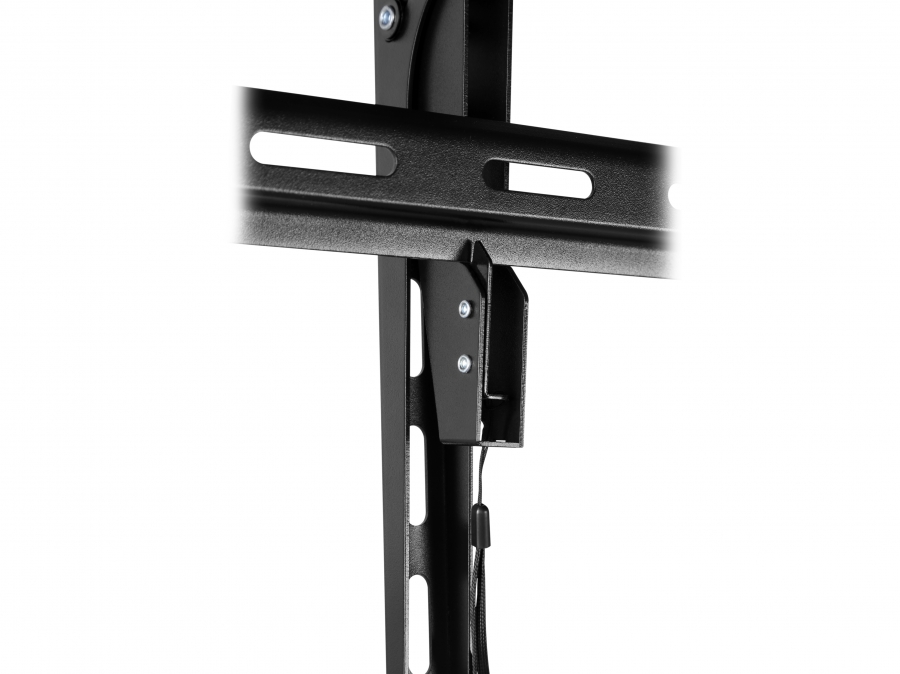

It is a affordable Heavy-Duty TV Wall Mount is a reasonable solution. A stiffener structure levels the weight capacity up to 120kg to firmly hold 60’’~120’’ TVs. Ample space in the center is perfect for installing the socket outlet and concealing all the messy cables. +10°~-10° toolless tilting mechanism provides the perfect viewing angle. A quick-release spring lock allows TV removal quick and easy and only takes seconds to install

Maximum weight capacity120 kg
Maximum screen size3.05 m (120")
Mounting typeWall
Minimum VESA mount50 x 50 mm
Maximum VESA mount900 x 600 mm
Minimum screen size152.4 cm (60")
Panel mounting interface50 x 50,75 x 75,100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,400 x 600,600 x 200,600 x 400,600 x 600,600 x 300,700 x 400,800 x 400,800 x 500,800 x 600,900 x 600
Number of displays supported1
Tilt adjustmentY
Tilt angle range-10 - 10°
Cable managementN
Distance to the wall (min)8 cm
Product colourBlack
Housing materialSteel
Sustainability complianceY
Sustainability certificatesREACH, RoHS
Screws includedY
Width1005 mm
Depth (max)8 cm
Height625 mm
Weight4.29 kg
Package width232 mm
Package depth46 mm
Package height1030 mm
Package weight4.86 kg
Package typeBox
Master (outer) case width250 mm
Master (outer) case length205 mm
Master (outer) case height1040 mm
Master (outer) case gross weight20 kg
Products per master (outer) case4 pc(s)
Country of originChina
