> >>>Neomounts by Newstar TIS 10"-27" 2TFT 1Gelenke schw. Max10KG
Neomounts by Newstar TIS 10"-27" 2TFT 1Gelenke schw. Max10KG

Neomounts by Newstar TIS 10"-27" 2TFT 1Gelenke schw. Max10KG

NEOMOUNTS BY NEWSTAR

FPMA-DCB100DBLACK

New

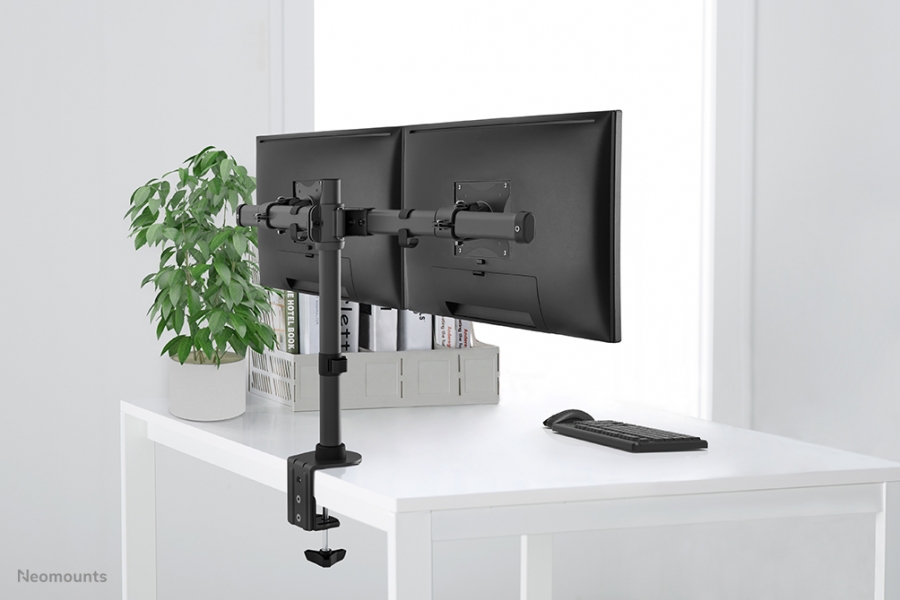

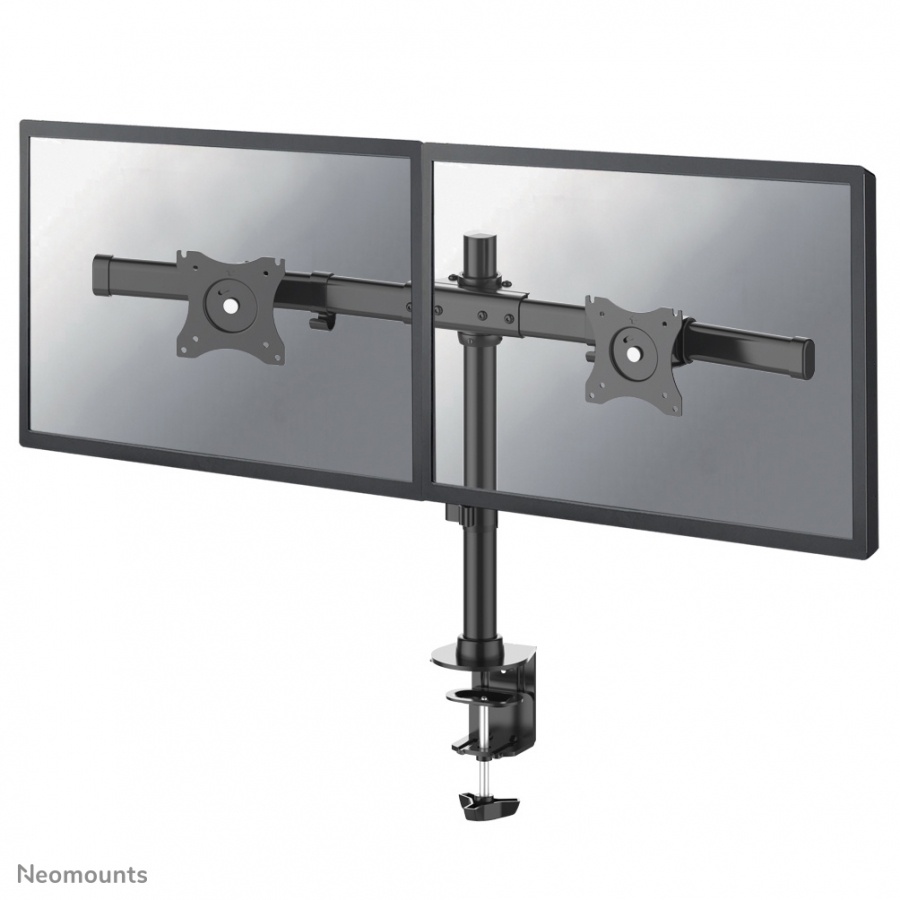

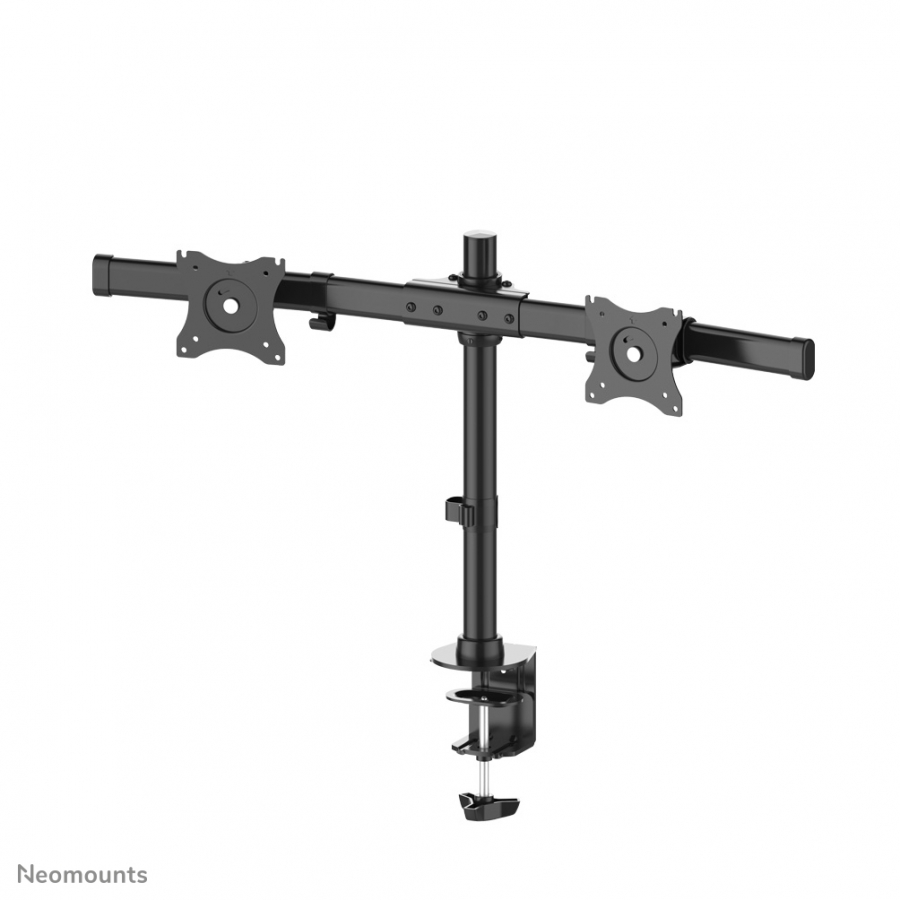

The Neomounts by Newstar desk mount, model FPMA-DCB100DBLACK is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 27". This dual crossbar mount is a great choice for space saving placement on desks using a desk clamp or desk grommet.Neomounts by Newstar's versatile tilt (+45°/-45°), rotate (360°) and swivel (30°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 45 centimetres. The cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.Neomounts by Newstar FPMA-DCB100DBLACK has a crossbar with two monitor holders with one pivot point and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 10 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. This mount is the ultimate save spacer on your desk.All installation material is included with the product.

Maximum weight capacity10 kg
Maximum screen size68.6 cm (27")
Mounting typeDesk
Minimum screen size25.4 cm (10")
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Number of displays supported2
MountingClamp/Bolt-through
Panel mounting interface75 x 75,100 x 100 mm
Height adjustmentY
Height adjustment typeManual

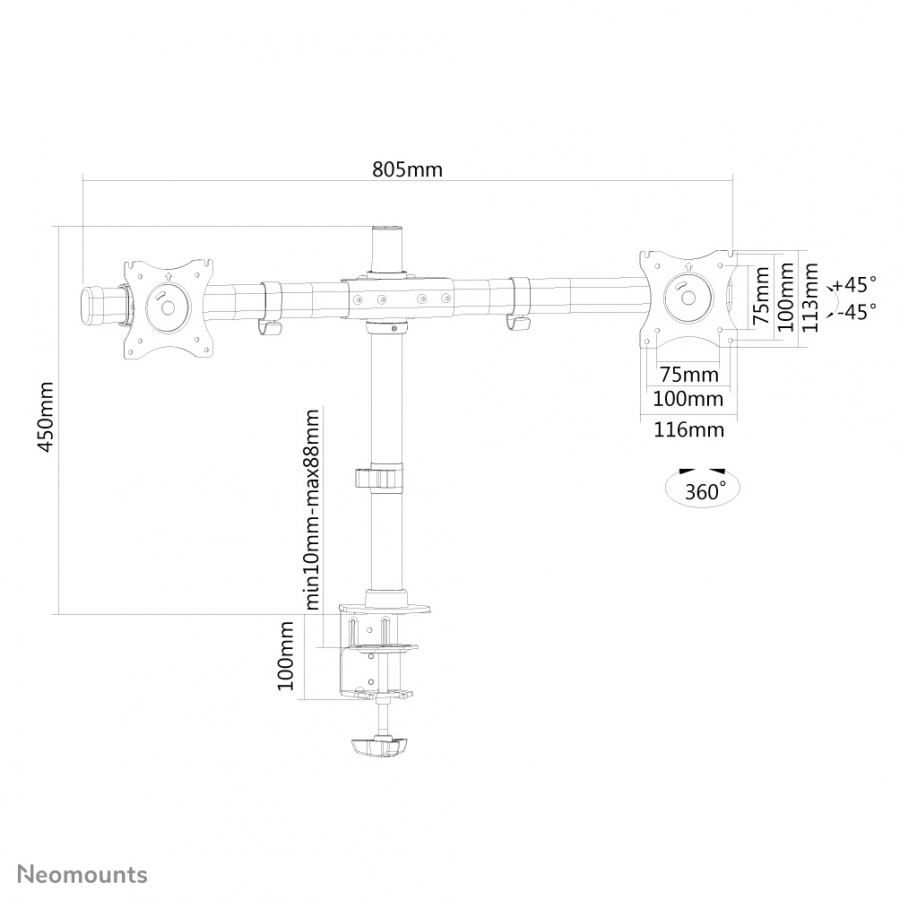

Height adjustment range0 - 450 mm
Depth adjustment range0 - 80 mm
Tilt angle range0 - 90°
Swivel angle30°
Angle of rotation360°
Number of pivot points1
Product colourBlack
Depth80 mm
Height450 mm
Package width166 mm
Package depth120 mm
Package height512 mm
Master (outer) case width345 mm
Master (outer) case length255 mm
Master (outer) case height525 mm
Products per master (outer) case4 pc(s)
Harmonized System (HS) code7326909890
Products per pallet (EU)100 pc(s)
Country of originChina
