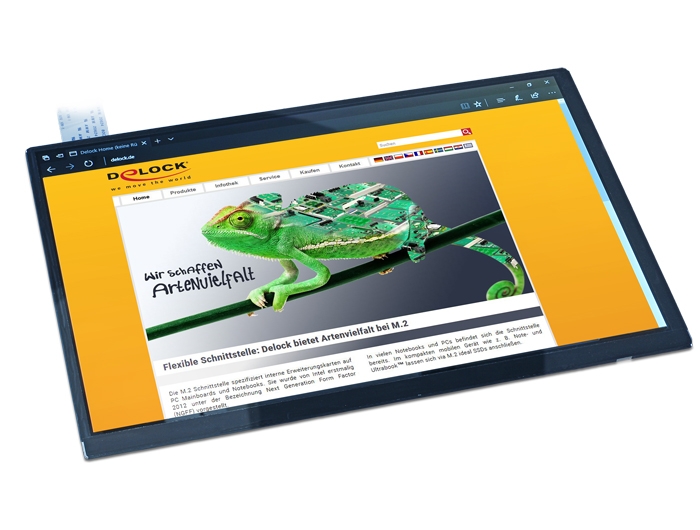

Navilock Delock Monitor Module 10.1″ (25.654 cm) TFT IPS 1280 x 800

NAVILOCK

28766

New

This TFT monitor module by Delock has a brilliant, angle-independent IPS panel and is suitable for installation in an individual device. It has 4 different connection possibilities and therefore it is flexible to use.
System requirements:
• One free HDMI, DVI, VGA or Cinch port
• Connection cables
• Power supply
Specification:
• Connectors:
  1 x HDMI-A 19 pin female
  1 x DVI-I 24+5 female
  1 x VGA 15 pin female
  1 x RCA female
  1 x DC 5.5 x 2.1 mm female
• TFT resolution: 1280 x 800 @ 60 Hz
• LED backlight
• Brightness 280 - 350 cd / m²
• 16:10 ratio
• HDMI / DVI resolution scaled: 1920 x 1080 @ 60 Hz or 1600 x 1200 @ 60 Hz
• VGA resolution scaled: 800 x 600 @ 60 Hz - 1280 x 768 @ 60 Hz
• Composite Cinch: PAL / NTSC with automatic switching
• Power supply: 9 - 18 V DC
• Current consumption: ca. 420 mA
• Power consumption: ca. 5.16 W
• Relative humidity: 5 - 90 %
• Dimensions (LxWxH):
  Monitor module complete: ca. 229.46 x 149.10 x 2.50 mm
  Monitor module effective active area: ca. 216.96 x 135.60 mm
  Driver board: ca. 102.00 x 70.00 x 15.78 mm
  Control module (L x W x H): ca. 83.0 x 15.0 x 5.5 mm
  Cable length ribbon cable between TFT and driver board: ca. 20 cm
  Cable length cable between driver board and control module: ca. 23 cm
  Cable length cable between driver board and Composite Cinch / DC female: ca. 16 cm

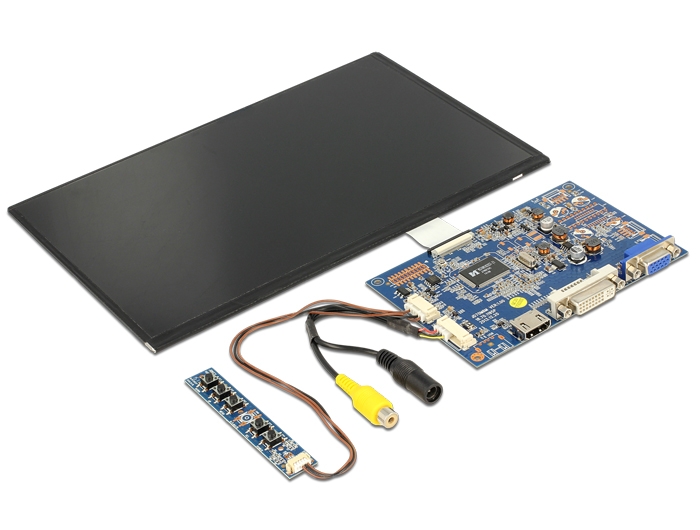

Package content:
• Monitor module
• Connection board
• Control module
• Flat cable
• Cinch / DC cable
Data sheet:
http://www.delock.de/produkt/28766/pdf.html?sprache=en
