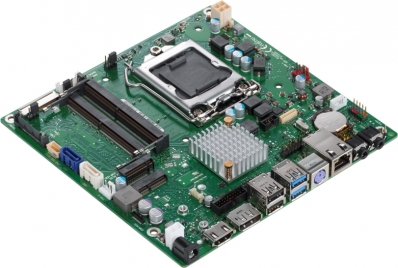

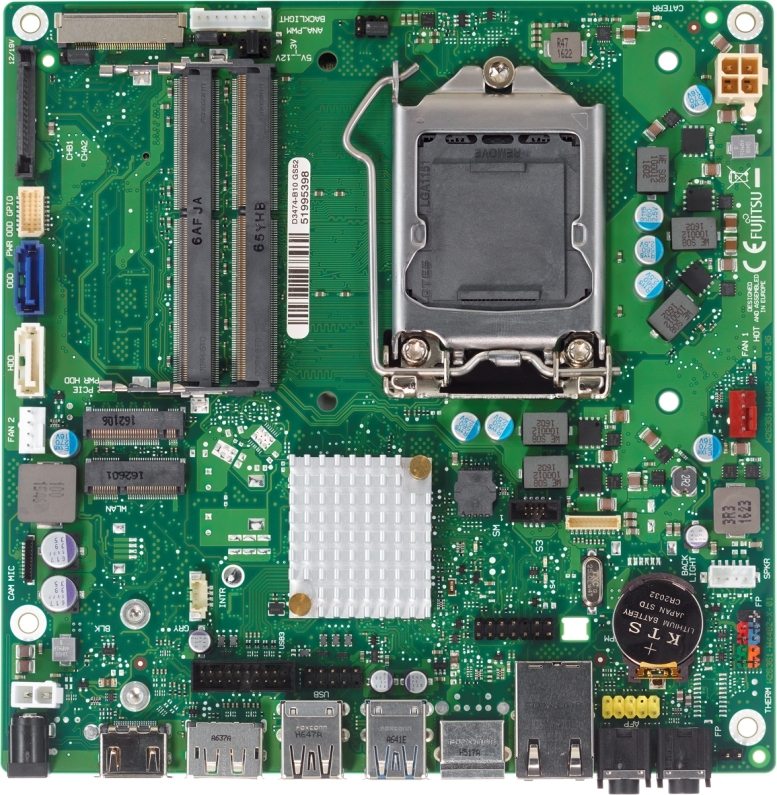

Mainboard Fujitsu D3474-B Industrial Thin Mini ITX - Coming soon

Fujitsu

33197

New

Fujitsu presents its first Thin-Mini-ITX Mainboard: the FUJITSU Mainboard D3474-B. Thanks to 24/7 continuous operation and an extended temperature range up to 50°C this mainboard is suitable for semi industrial applications like AiO, POS, Mini-PC and KIOSK systems.The FUJITSU D3474-B supports the 6th and 7th Generation Intel® Core™ i3 / i5 / i7 Processor Series. The integrated Intel®H110 Express Chipset supports up to 32 GB DDR4 2400 SDRAM memory and two independent working displays in parallel.
Specification:
Processor socket:
LGA 1151, up to 65W TDP
Intel® Core i7/i5/i3 - (6th and 7th generation) processor series
Intel® Pentium / Celeron processor series
Chipset: Intel® H110 Express
Memory socket: 2 x SO Dimm (1,2V), up to 32GB, Dual Channel,
DDR 4 - 2400 (CL 17), SDRam, unbuffered, non ECC
Effective memory speed depends on installed processor
Graphics:
Intel® HD Graphics, DX12, 1 x DisplayPort V 1.2 , 1 x HDMI V 1.4,
Dual Channel 24 bit LVDS (max. 2 independet displays)
Audio:
Realtec ALC282, 5.1 channel, HD Audio codec
2 W @ 40 Ohm stereo speaker support
LAN: Realtek RTL8111G with 10/100/1000 Mbit/s

Expansions slot:
1 x M.2 (2230) for WLAN+Bluetooth only, PCIe x1 (Gen3) or USB 2.0 interface

Storage:
2 x SATA 6 Gb/s
1 x M.2 (2242 / 2260) Key M for SATA based modules, AHCI Boot support

Internal I/O:
2 x USB 3.0
2 x USB 2.0
1 x Serial (COM 1, RS 232)
1 x Frontpanel Audio (9 Pin, HD Audio)
1 x LVDS
1 x LVDS Backlight
1 x Fan CPU
1 x Fan AUX1
1 x Intrusion (Case open)
1 x GPIO (8 Bit)
1 x Internal Stereo Speakers header
1 x DMIC header (digital microphone)
1 x Frontpanel (Power Switch, Reset Switch, LEDs, Intel 10 pin header)
2 x Onboard SATA Drive Power Connector
1 x DC-in Connector 12 V (4 pin)
1 x DC-in Connector 19-24 V (2 pin)

External I/O:
1 x Display Port V 1.2
1 x HDMI V 1.4
2 x Audio (Line-in / Line-out)
2 x Gigabit LAN (RJ 45)
1 x PS/2
2 x USB 3.0
2 x USB 2.0
1 x DC-in Connector 19-24 V maximum 5 A

Packungsinhalt:
Mainboard
I/O Shield
Driver DVD
