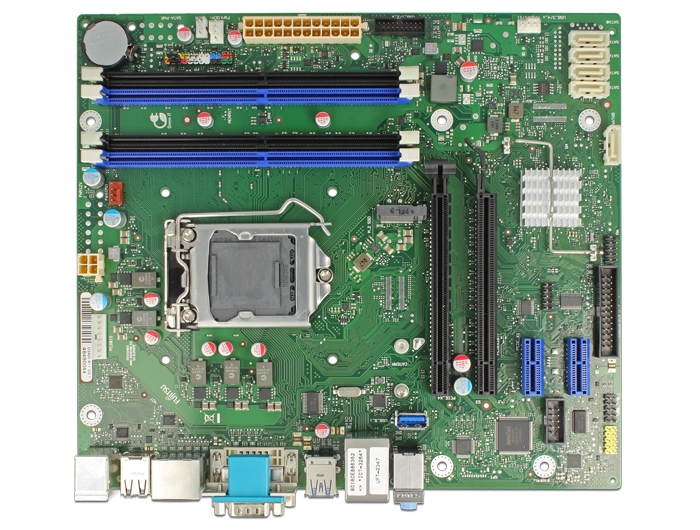

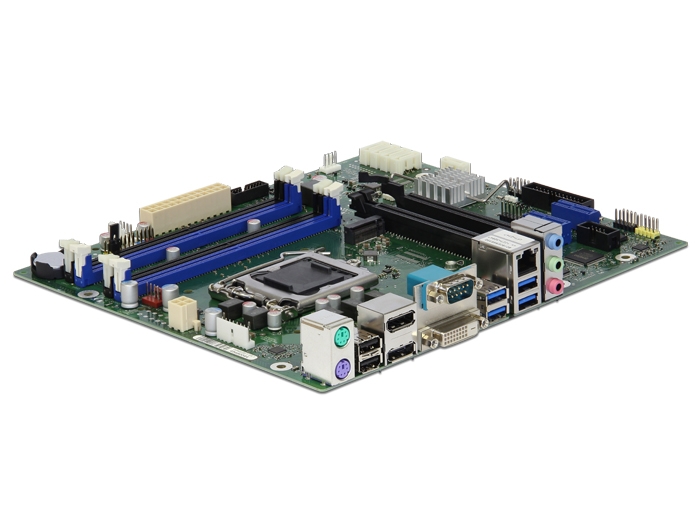

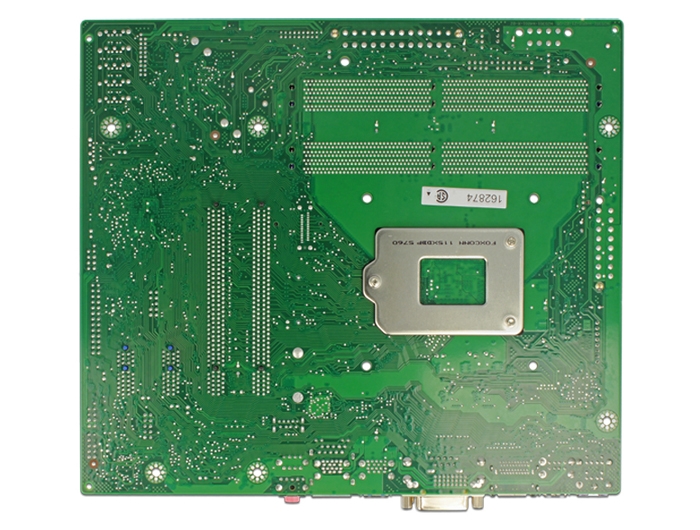

Mainboard Fujitsu D3402-B Industrial Micro ATX

Fujitsu

33159

New

The FUJITSU Mainboard D3402-B from the Extended-Lifecycle-Series with Intel® Q170 Express chipset supports the 6th generation Intel (R) Core (TM) processors. In addition to supporting continuous operation (24/7) and an extended temperature range of up to 50 ° C, the FUJITSU Mainboard D3402-B offers a wide range of functions, making it ideal for special requirements of specific markets.
Specification:
Processor socket:
LGA 1151, maximum 65W TDP
Intel® Core i3/i5/i7 - 6th generation processor series
Future Intel®, Pentium®, Celeron® processor series
Chipset: Intel® Q170 Express
Memory socket:
4 x DIMM DDR4 maximum 64 GB, Dual channel, 2133 MHz (CL15),
UDIMM, 1.2V/2.5V, 288pin, Non ECC
Graphics:
Intel® HD Graphics (depends on installed processor) DX12
Audio: Realtek ALC671, 5.1 Channel HD Audio Codec
LAN: Intel Jacksonville i219LM with 10/100/1000 MBit/s, iAMT 11,
vPro support

Expansion slots:
1 x PCIe x16 (Gen3)
1 x PCIe x16 (4 Lanes, Gen3
1 x PCIe x1 (Gen3)

Storage:
5 x SATA 6Gb/s
1 x M.2 SSD (PCIe und SATA)

Internal I/O:
2 x USB 3.0
4 x USB 2.0
1 x USB 3.0 stick
1 x Serial (COM2, RS232, FIFO, 16550 compatible)
4 x Fan (PSU, CPU, AUX1, AUX2)
1 x Intrusion (Case open)
1 x Parallel port connector
1 x Audio
1 x Power ATX (24pin + 4pin)

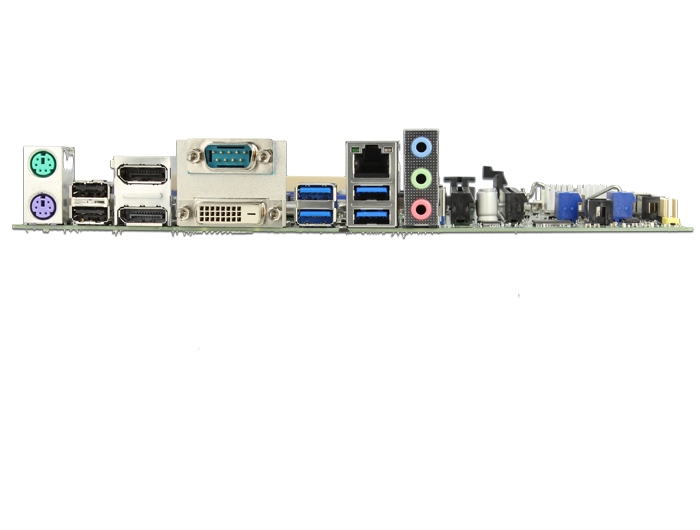

External I/O:
2 x DisplayPort (V1.2)
1 x DVI-D
3 x Audio (Mic-in, Line-in, Line-out)
1 x GigaLAN (RJ45)
2 x PS/2
4 x USB 3.0
2 x USB 2.0
1 x Serial (COM1, RS232, FIFO, 16550 compatible)
Package content:
Mainboard

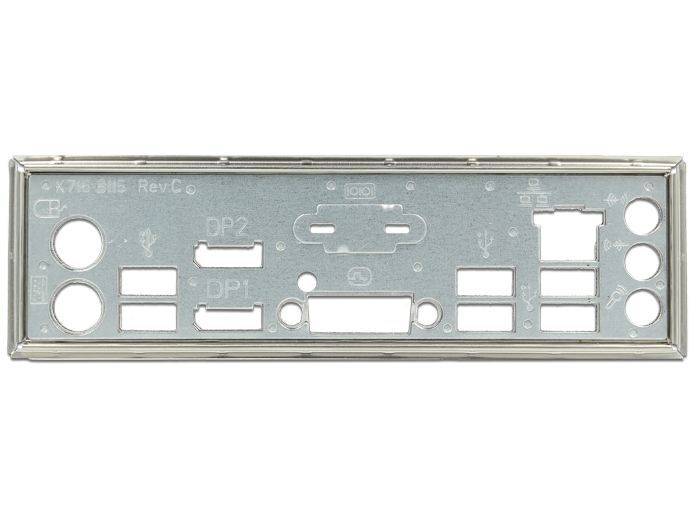

I/O Shield
Driver DVD
