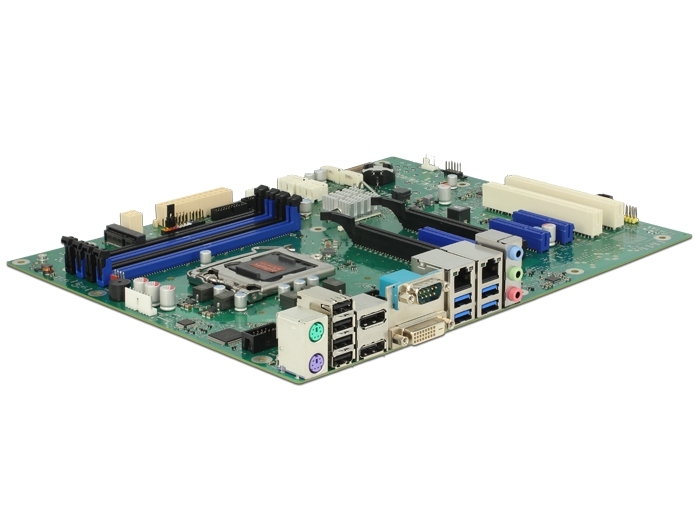

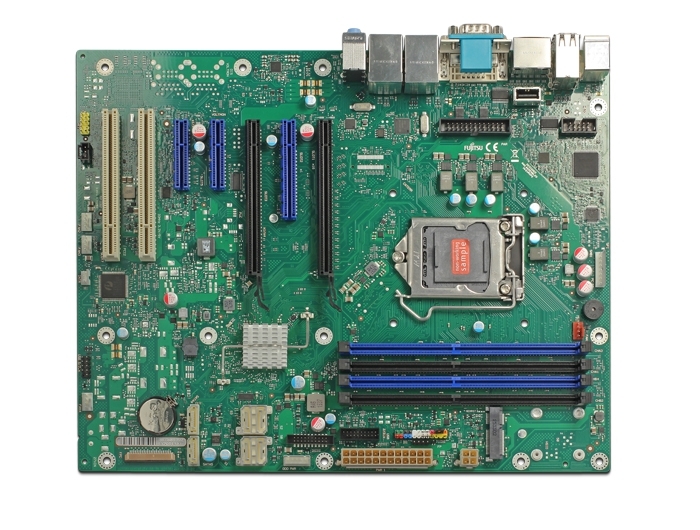

Mainboard Fujitsu D3446-S2 Industrial ATX - Coming Soon

Fujitsu

33205

New

In addition to guaranteed availability for five years, the FUJITSU Mainboard D3446-S2 provides industrial support for high-performance Intel® XEON CPUs and ECC (Error Correction Code). It also offers the latest management features with Intel® iAMT 11.0 and vPro 2015. It is particularly suitable for use in workstations and entry-level servers as well as for various medical applications and those with high performance requirements.
Specification:
Processor socket:
LGA 1151, maximum 80W TDP
Intel® Xeon E3-1200 V5 processor series
Intel® Core i3/i5/i7 - 6th and 7th generation processor series
Intel Pentium®, Intel® Celeron® processor series
Chipset: Intel® C236 Express
Memory socket:
4 x DIMM DDR4 maximum 64 GB, Dual channel, 2133 MHz (CL15),UDIMM, 1.2V/2.5V, 288pin, Non ECC / ECC (not supported Core i5/i7
Graphics:
Intel® HD Graphics (depends on installed processor) DX12
Audio: Realtek ALC671, 5.1 Channel HD Audio Codec
LAN: Intel i219LM & i210AT with 10/100/1000 Mbit/s

Expansions slot:
1 x PCIe x16 (16 Lanes, Gen3)
1 x PCIe x16 (4 Lanes, Gen3)
1 x PCIe x8 (1 Lane, Gen3)
1 x PCIe x4 (4 Lane, Gen3)
1 x PCIe x4 (1 Lane, Gen3)
2 x PCI (32 Bit, 33 MHz, Rev. 2.3)

Storage:
6 x SATA 6Gb/s
1 x mSATA (inkl. USB)

Internal I/O:
2 x USB 3.0
2 x USB 2.0
1 x USB 2.0 stick
1 x Serial (COM2, RS232)
4 x Fan (PSU, CPU, AUX1, AUX2, AUX3)
1 x Intrusion (Case open)
1 x GPIO (8 Bit)
1 x Parallel port connector
1 x S/PDIF out
1x Frontpanel Audio (9-Pin, HD Audio 6 Legacy Audio AC97)
1 x Power ATX (24pin + 4pin)

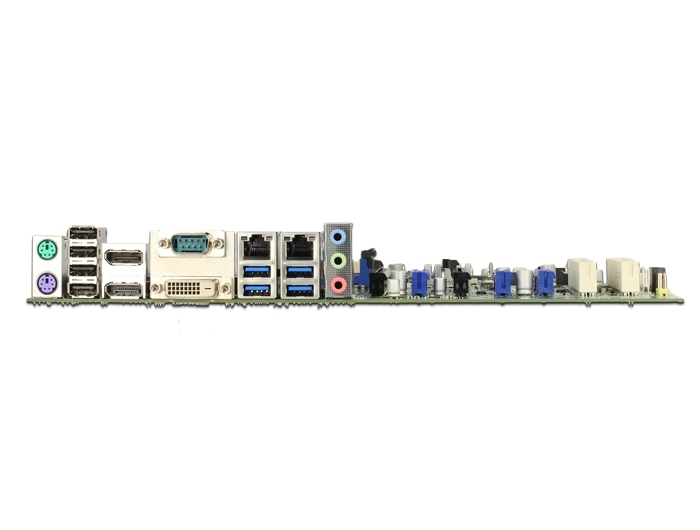

External I/O:
2 x DisplayPort (V1.2)
1 x DVI-D
3 x Audio (Mic-in, Line-in, Line-out)
2 x GigaLAN (RJ45)
2 x PS/2
4 x USB 3.0
4 x USB 2.0
1 x Serial (COM1, RS232)
Package content:
Mainboard
I/O Shield
Driver DVD
