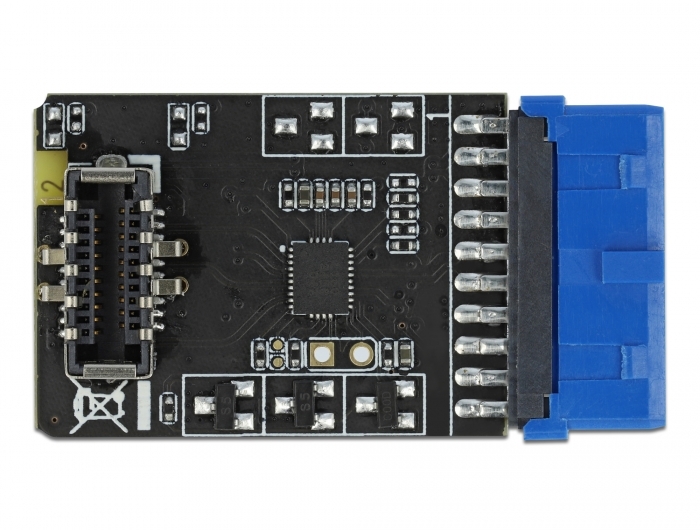

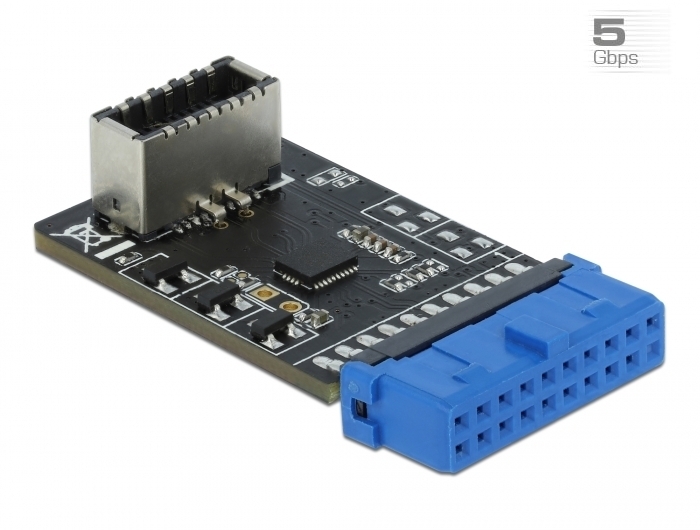

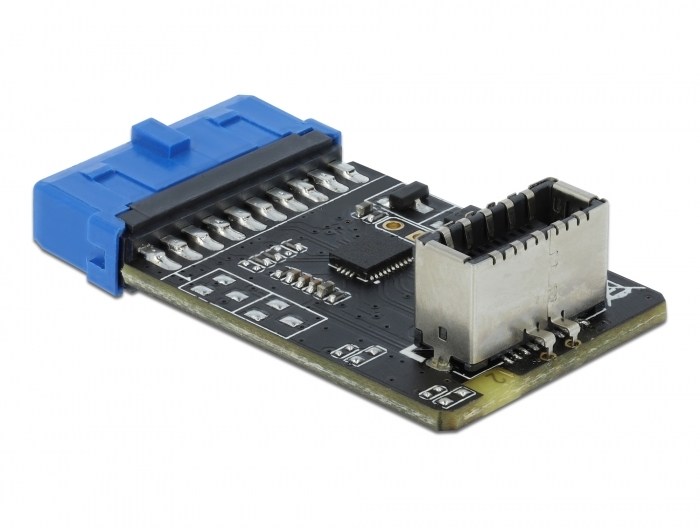

Delock USB 3.2 Gen 1 Adapter Pin Header female to internal Key A female

DELOCK

41981

New

This adapter by Delock converts the internal USB pin header male into the internal USB key A female. Various cables can be connected to the adapter, to provide either one USB Type-C™ or two USB Type-A interface.

Active adapter
Due to the built-in chipset, USB Type-C™ functions such as channel configuration (CC1 and CC2) can be used.

System requirements:
• Linux Kernel 3.3 or above
• Windows 8.1/8.1-64/10/10-64
• Motherboard with a free 19 pin USB 3.0 pin header male
Specification:
• Connectors:
  1 x 19 pin SuperSpeed USB (USB 3.2 Gen 1) pin header female
  1 x SuperSpeed USB (USB 3.2 Gen 1) key A 20 pin female
• Data transfer rate up to 5 Gbps
• Electrical power: max. 4.5 watt (5 V / 900 mA)
• Dimensions (LxWxH): ca. 40 x 22 x 11 mm
Package content:
• Adapter
Data sheet:
http://www.tragant.de/produkt/41981/pdf.html?sprache=en
