Delock Easy 45 Module USB 2.0 Retractable Cable USB Type-A to 8 Pin Lightning female white

Reference 81331

Condition: New

More info

This Easy 45 retractable cable by Delock can be connected to a PC, laptop or power source with USB-A connector and can be used to transfer data or charge various devices with 8 Pin Lightning interface. The simple snap-in mechanism ensures that the module is firmly in place and can be easily removed if necessary.

Flexible
The USB 2.0 cable can be pulled out in six steps and thus offers different cable lengths, depending on requirements. If the cable is not needed, it is neatly rolled up and stowed away.

Easy 45 connects
Easy 45 is a variable, modular system that allows components such as sockets, HDMI or USB connections to be added according to your needs. The Easy 45 modules are standardised and can be mounted in various module holder or cable ducts. Easy 45 builds the interface between electrical, network and system installation and many peripheral devices such as TV, monitors, printers, laptops and much more.

System requirements:
• Power source with a free USB Type-A port
• PC or laptop with a free USB Type-A port
• Device with 8 pin Lightning port
• A free module port Delock Easy 45

Specification:
• Connectors:
  1 x USB 2.0 Type-A male
  1 x 8 pin Lightning male
• Cable gauge:
  Charging cable: 24 AWG
  data cable: 30 AWG
• Flat cable
• Maximum output current: 2 A
• Data transfer rate up to 480 Mbps
• Voltage: max. 5 V

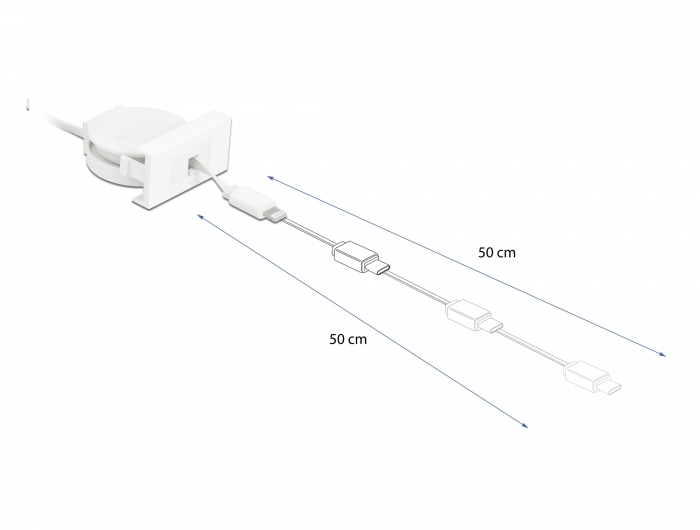

• Length incl. connectors:
  USB-A Host-cable ca. 12 cm
  Lightning device-cable ca. 50 cm (extended)
• Suitable for module holder Delock Easy 45
• Suitable for 45 mm cable duct with minimum depth 45 mm
• Module size: 22.5 x 45 mm
• Dimensions (LxWxH): ca. 45.0 x 22.5 x 47.0 mm
• Colour: white

Package content:
• Easy 45 module retractable cable

Data sheet:
http://www.delock.de/produkt/81331/pdf.html?sprache=en
