Delock Easy 45 Module Holder for installation trunking 85 x 80 mm

DELOCK

81315

New

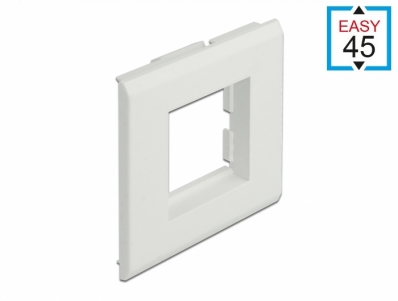

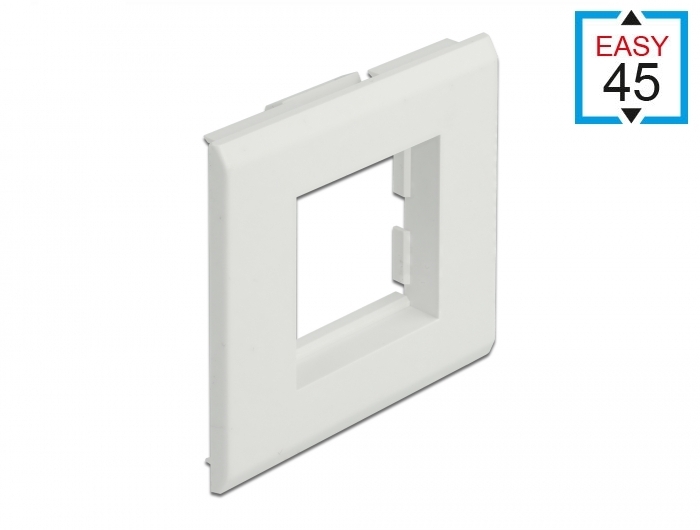

This module holder by Delock is designed to mount one module with 45 x 45 mm or two modules with 22.5 x 45 mm.

Individual adaptation to the respective needs
Due to the variety of different modules, the module holder can be individually equipped and adapted to the respective needs.

Suitable for installation trunking with ca. 76.5 mm opening

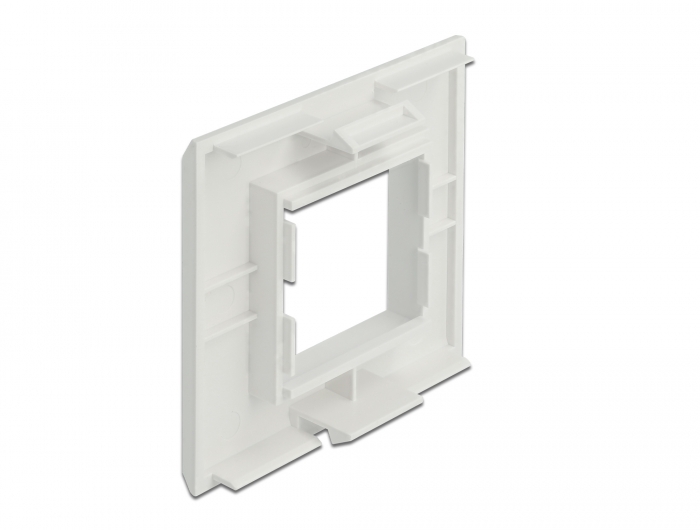

The module holder by Delock can be easily mounted to an installation trunking with ca. 76.5 mm opening. No tools are required for installation. The module holder can be inserted into the opening and snaps into place.

Easy 45 connects

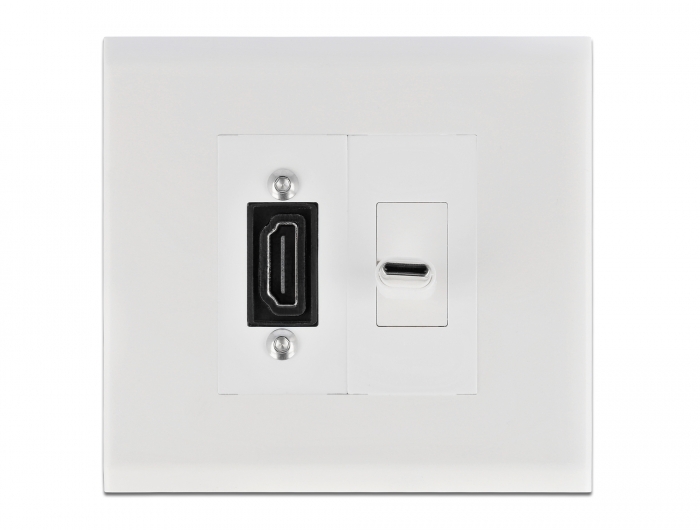

Easy 45 is a variable, modular system that allows components such as sockets, HDMI or USB connections to be added according to your needs. The Easy 45 modules are standardised and can be mounted in various module holder or cable ducts. Easy 45 builds the interface between electrical, network and system installation and many peripheral devices such as TV, monitors, printers, laptops and much more.

System requirements:
• A installation trunking with ca. 76.5 mm opening
Specification:
• Robust plastic holder
• Suitable for installation trunking with ca. 76.5 mm opening

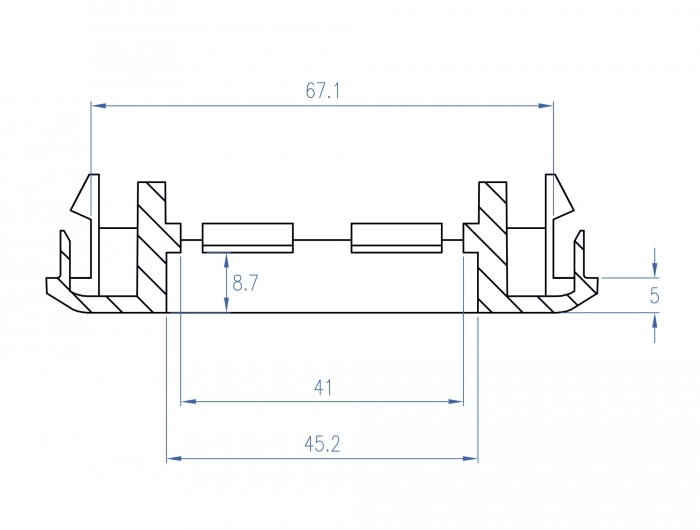

• Module cutout: 45 mm x 45 mm
• Material: ABS
• Dimensions (LxWxH): ca. 85 x 80 x 20 mm
• Colour: white
Package content:
• Easy 45 module holder
Data sheet:
http://www.delock.de/produkt/81315/pdf.html?sprache=en
