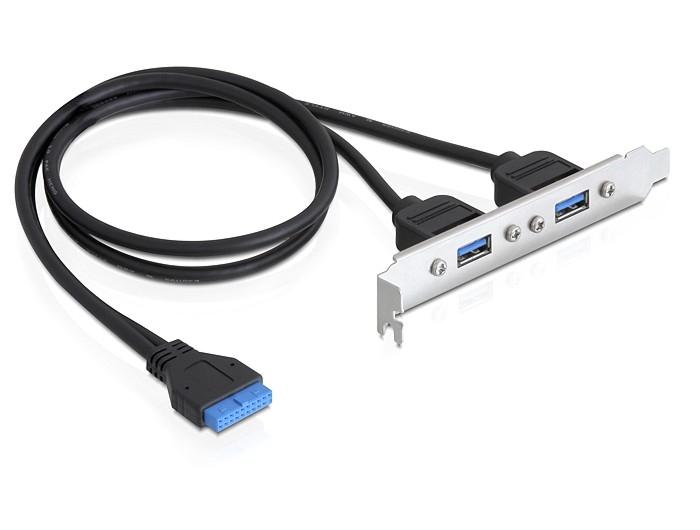

Delock Slot bracket USB 3.0 pin header 19 pin internal 2 x USB 3.0-A external

DELOCK

82963

New

This USB 3.0 slot bracket by Delock can be installed into a standard PC slot and will be connected internally to a USB 3.0 pin header. It expands your system by two external USB 3.0 ports and enables the connection of different USB devices, e.g. Card Reader, external enclosure etc.

More details

Description:
This USB 3.0 slot bracket by Delock can be installed into a standard PC slot and will be connected internally to a USB 3.0 pin header. It expands your system by two external USB 3.0 ports and enables the connection of different USB devices, e.g. Card Reader, external enclosure etc.

Specification:

• Connector: internal 19 pin USB 3.0 pin header
external 2 x USB 3.0-A female
• Cable gauge: AWG 28 power line
AWG 30 data line
• Data transfer rate up to: Super-Speed 5 Gb/s,
High-Speed 480 Mb/s,
Full-Speed 12 Mb/s,
Low-Speed 1.5 Mb/s
• Cable length: ca. 40 cm



System requirements:
• PC with a free PC slot

• Mainboard with a free 19 pin USB 3.0 pin header
Note: For the operation of two devices, which need more than
900 mA for each device, please connect an additional
power supply to the connected devices.



Package content:
• Slot bracket USB 3.0
