Delock Adapter VGA 15 pin male to Terminal Block 10 pin with Enclosure

DELOCK

66258

New

This terminal block adapter by Delock can be used to connect bare wires. Thus the adapter is not only convenient for special industry applications, but also for the hobby area, e.g. railway modelling.

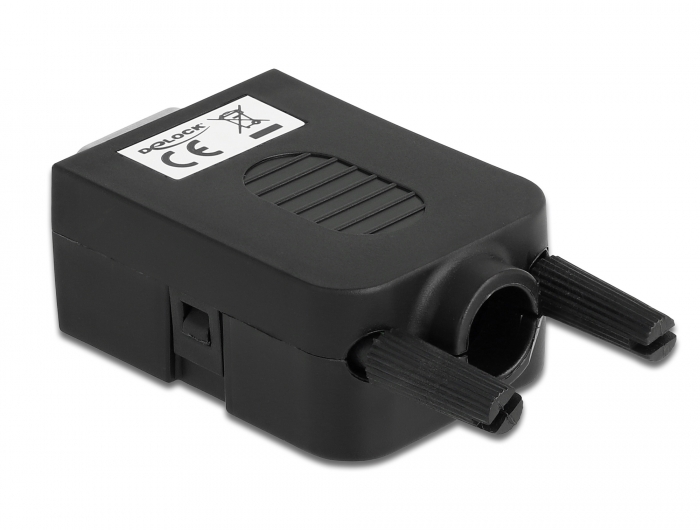

Protection by enclosure

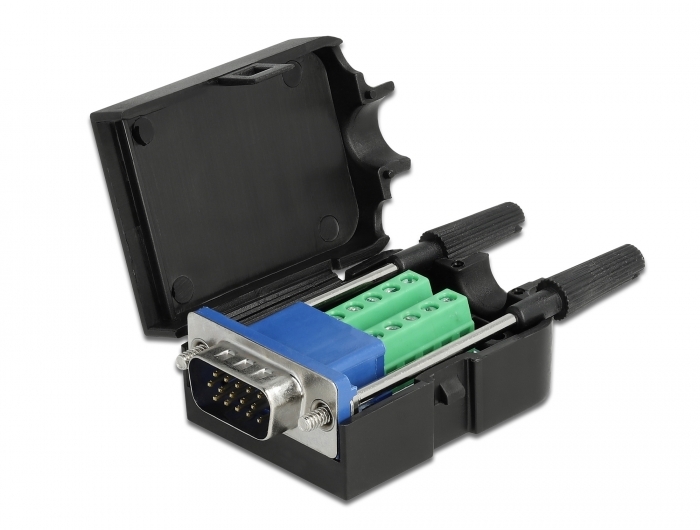

The plastic enclosure protects the PCB from dirt and damage.

Strain relief
The integrated strain relief fixes the cable in the enclosure.
System requirements:
• A free VGA interface
Specification:
• Connectors:

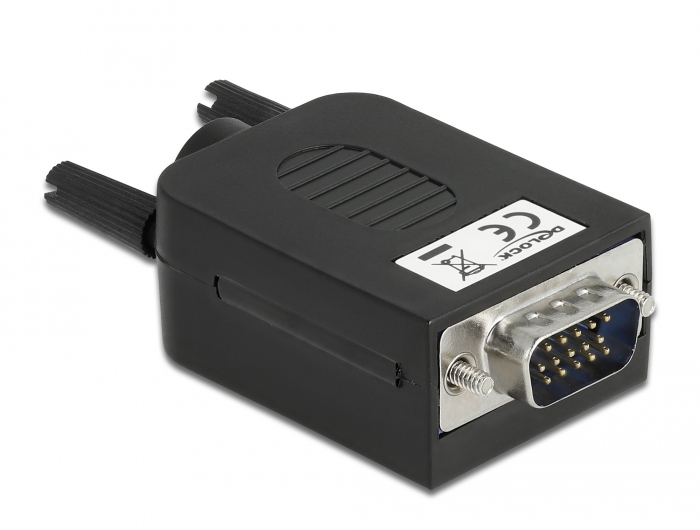

  1 x VGA 15 pin male with screws
  1 x 10 pin terminal block
• Pin assignment: 1:1
• Pitch: 3.81 mm
• Useable for a cable gauge from 26 to 18 AWG
• Operating temperature: -20 °C ~ 105 °C
• Dimensions (LxWxH): ca. 51.8 x 34.4 x 21.0 mm

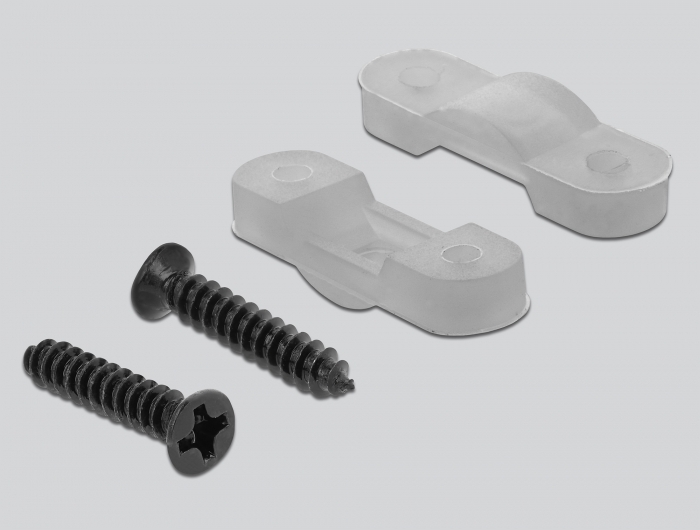

Package content:
• Adapter
• 1 x strain relief
• 2 x locking screws

Data sheet:
http://www.delock.de/produkt/66258/pdf.html?sprache=en
