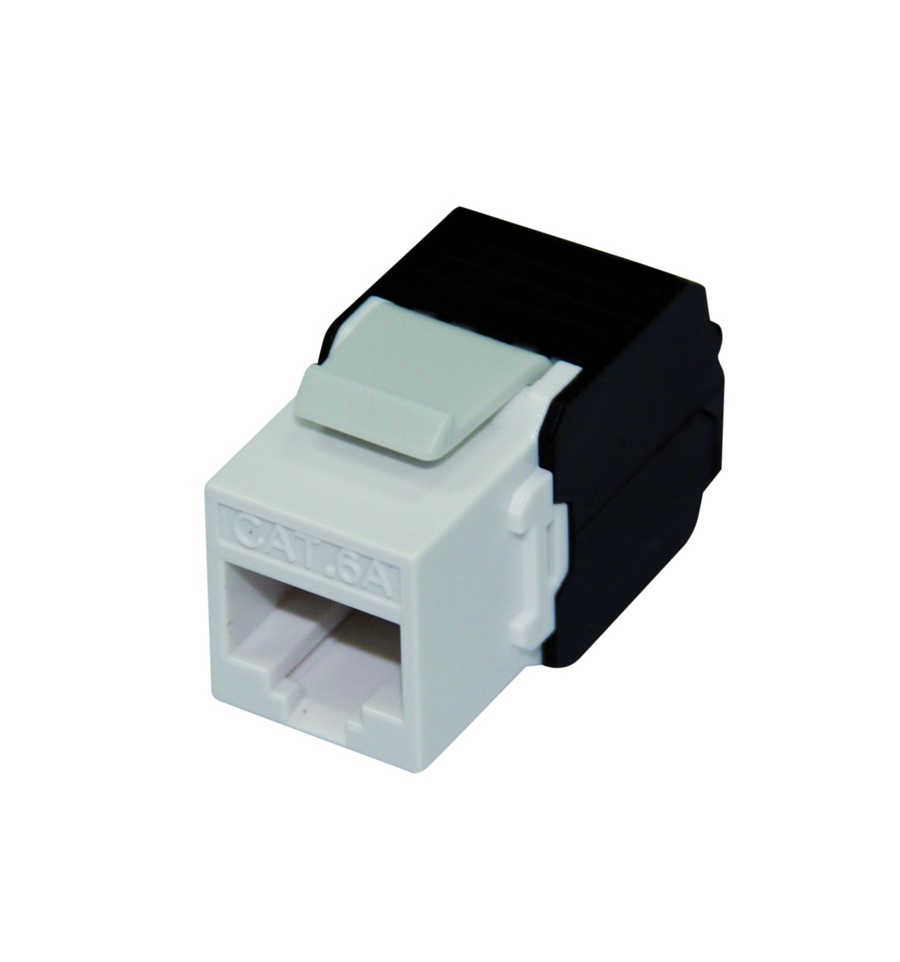

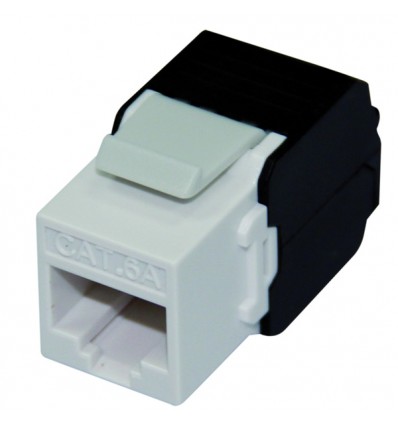

ROLINE Keystone Jack, Cat. 6a, RJ-45, unshielded, toolless, white

ROLINE

26.11.0337

New

  • The Cat.6a keystones support data transfer rates of up to 10 GBit/s and a bandwidth of 500 MHz
  • Assembling takes place over LSA plus
  • Colour code on the keystone jacks is based on the standard EIA/TIA 568
  • Can be used together with Keystone Module frame 26.11.0357 (black) or 26.11.0356 (light grey), Flush Mount Wall Oulet for Keystones, 2-port (25.16.8579)
  • ...

More details

  • The Cat.6a keystones support data transfer rates of up to 10 GBit/s and a bandwidth of 500 MHz
  • Assembling takes place over LSA plus
  • Colour code on the keystone jacks is based on the standard EIA/TIA 568
  • Can be used together with Keystone Module frame 26.11.0357 (black) or 26.11.0356 (light grey), Flush Mount Wall Oulet for Keystones, 2-port (25.16.8579)
  • Colour: white
Assembly cable connectionKrone LSAplus
AssignmentEIA/TIA 568A & 568B
Colourwhite
Connection directionStraight
Conveyance goodNo
ManufacturerROLINE
Manufacturer Item No.26.11.0337
Product groupConnection technology TP
Product typeRJ45 Keystone Jack
Shield typeNot screened
Transfer qualityCat6a / Class EA

Network connectors
