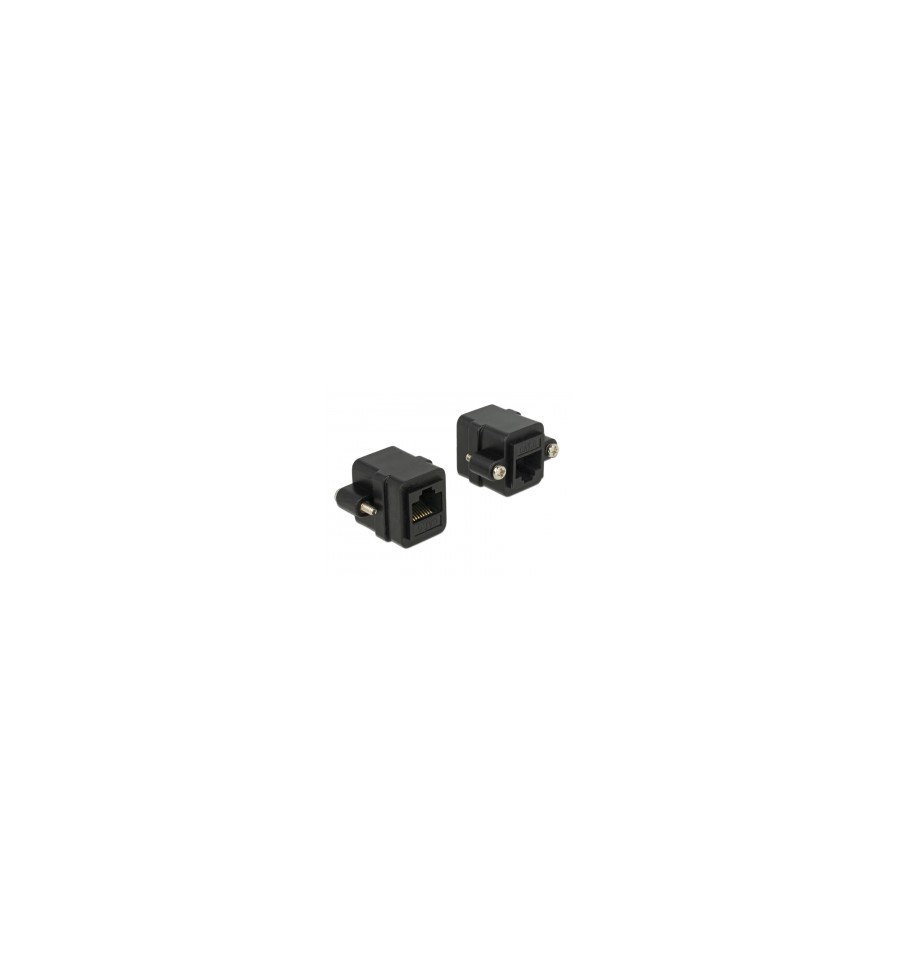

Delock Adapter RJ45 female - RJ45 female panel-mount Cat.6 UTP

DELOCK

85124

New

Description
This adapter enables you to extend a network connection and can be used to connectvarious devicesThe female port can be attached with two screwse.g. to a slot bracketa cable duct or an enclosure with the corresponding openingThis can be used to install aRJ45 jack at an easily accessible position.

More details

Description
This adapter enables you to extend a network connection and can be used to connectvarious devicesThe female port can be attached with two screwse.g. to a slot bracketa cable duct or an enclosure with the corresponding openingThis can be used to install aRJ45 jack at an easily accessible position.

Specification
• Connector:
  RJ45 female > RJ45 female with screw nuts for installation
• Screw type: #4-40 UNC
• Mounting hole ca. 16.1 x 14.5 mm, screw hole pitch ca. 25 mm

• Cat.6 specification
• 1:1 connected
• Unshielded (UTP)
• Gold-plated connector
• Colour: black
• Dimensions (LxWxH): ca. 32 x 26 x 22.5 mm

System requirements
•  One free RJ45 Port

Package content
• Adapter panel-mount
• 2 screws

Package
• Poly bag
