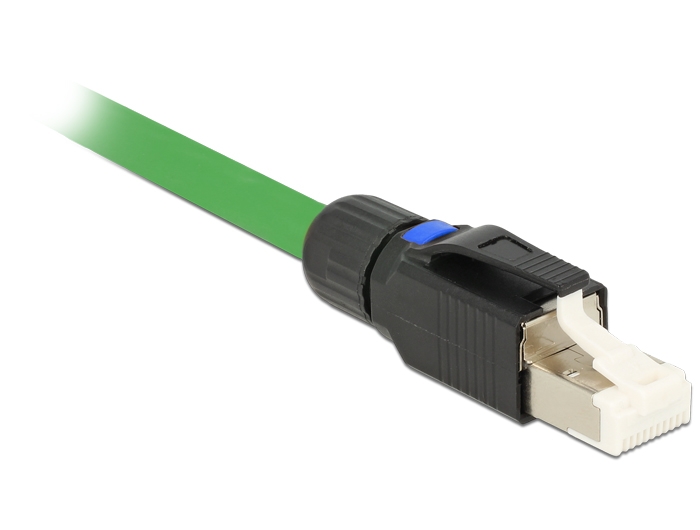

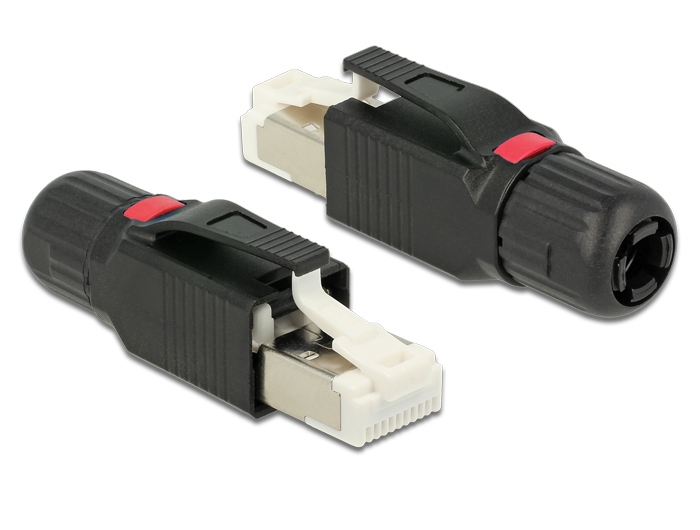

Delock RJ45 Plug field assembly Cat.5e Profinet

DELOCK

86465

New

This RJ45 plug by Delock can be used to connect PROFINET network cables. Installation of the plug to various cable types is tool-free and time-saving.
Specification:
• Connectors: RJ45 Plug (4P/4C)
• Cable routing 180°
• Cat.5e specification
• Shielded (STP)
• Compliant with Cat.5e requirements of ISO/IEC 11801 Edition 2.2,
  EN 50173-1:2011 and EN 60603-7-51, Cat.5e of ANSI/TIA 568-C.2
• PoE / PoE+ compatible
• Colour code PROFINET
• For solid or stranded wire up to 0.644 mm (22 - 23 AWG)
• For cable diameter from 6.0 - 8.5 mm
• Integrated colour marking space
• Dimensions (LxWxH): ca. 53.7 x 16.4 x 14.0 mm

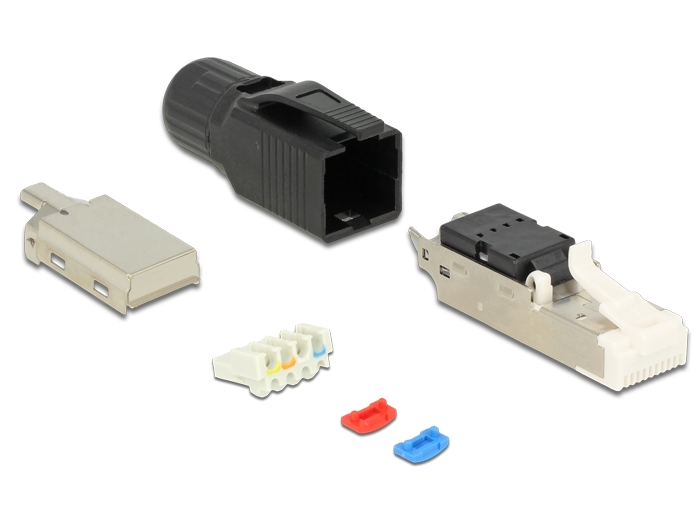

Package content:
• RJ45 plug
• Cable manager PROFINET
• 2 x color markers (red and blue)
• Installation manual
Data sheet:
http://www.delock.de/produkt/86465/pdf.html?sprache=en
