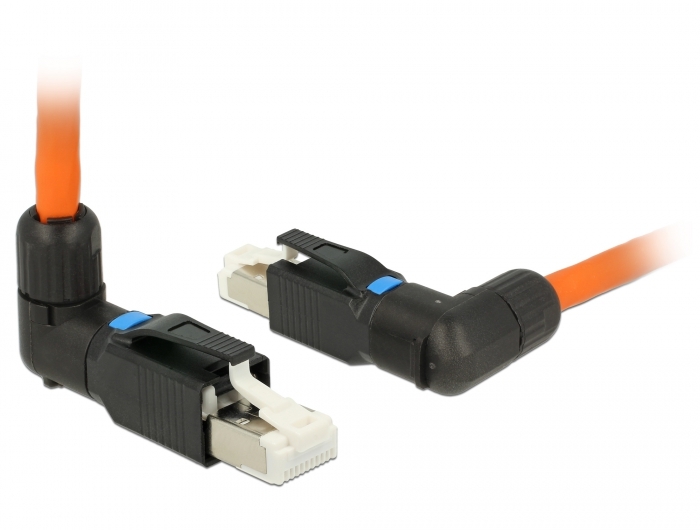

Delock RJ45 Plug field assembly Cat.6A angled

DELOCK

86295

New

This RJ45 plug by Delock can be used to connect network cables. Installation of the plug to various cable types is tool-free and time-saving.
Specification:
• Connector: 1 x RJ45 plug angled
• Shielded (STP)
• Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2,
  EN 50173-1:2011 and EN 60603-7-51, and ANSI/TIA 568-C.2
• Supports PoE / PoE+
• TIA-568B pinout
• For solid or stranded wire up to 0.644 mm (22 - 26 AWG)
• For cable diameter from 6.0 - 8.5 mm
• Dimensions (LxWxH): ca. 58.0 x 32.4 x 14.8 mm

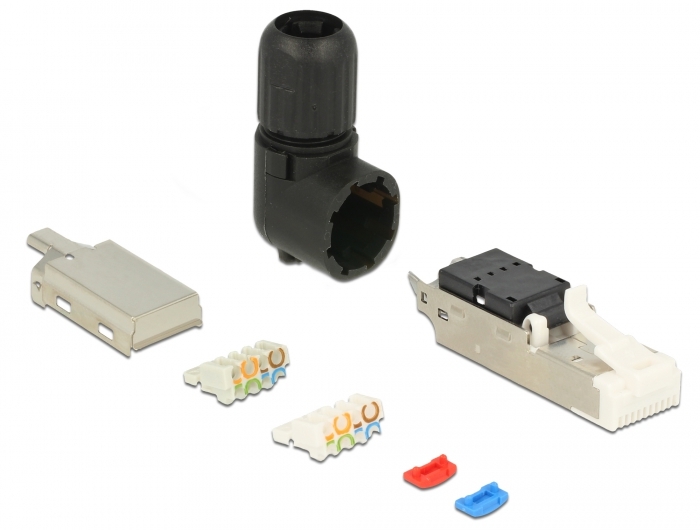

Package content:
• RJ45 plug
• 2 x cable manager
• 2 x color icon marker
• Installation manual
Data sheet:
http://www.delock.de/produkt/86295/pdf.html?sprache=en
