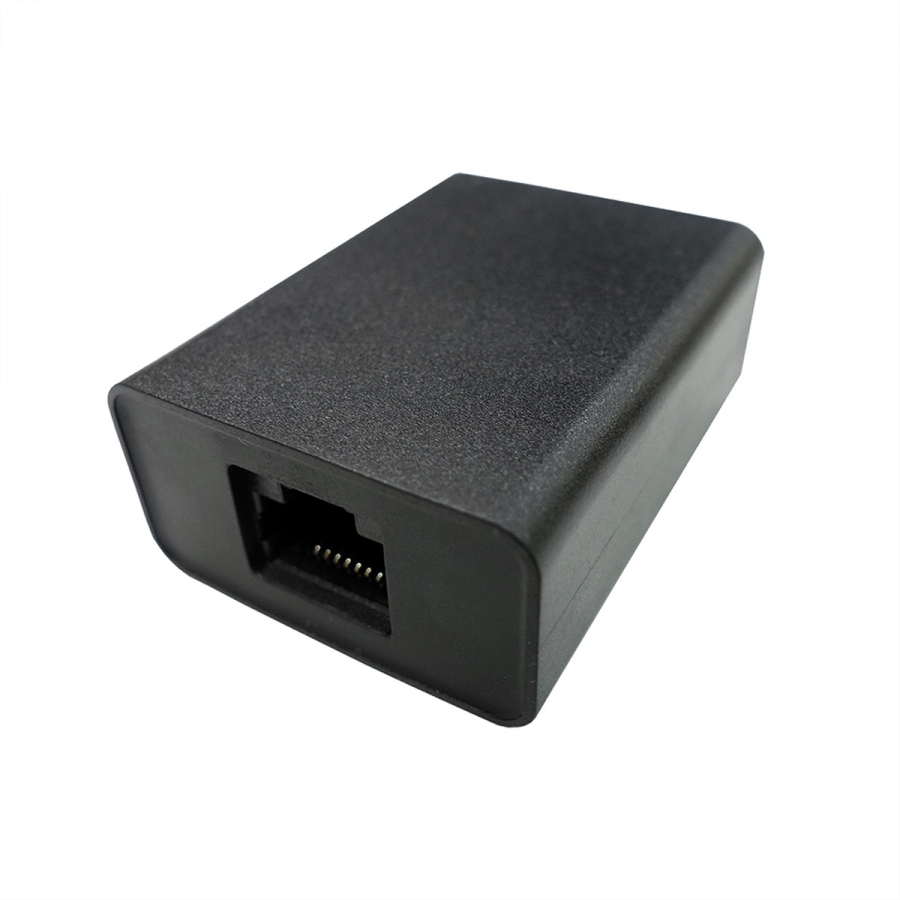

ROLINE T-Adapter Cat. 5e/6/6A, UTP, black

ROLINE

21.17.3087

New

10/100 T-adapter for using two LAN connections via one (fully occupied) 8-core cable

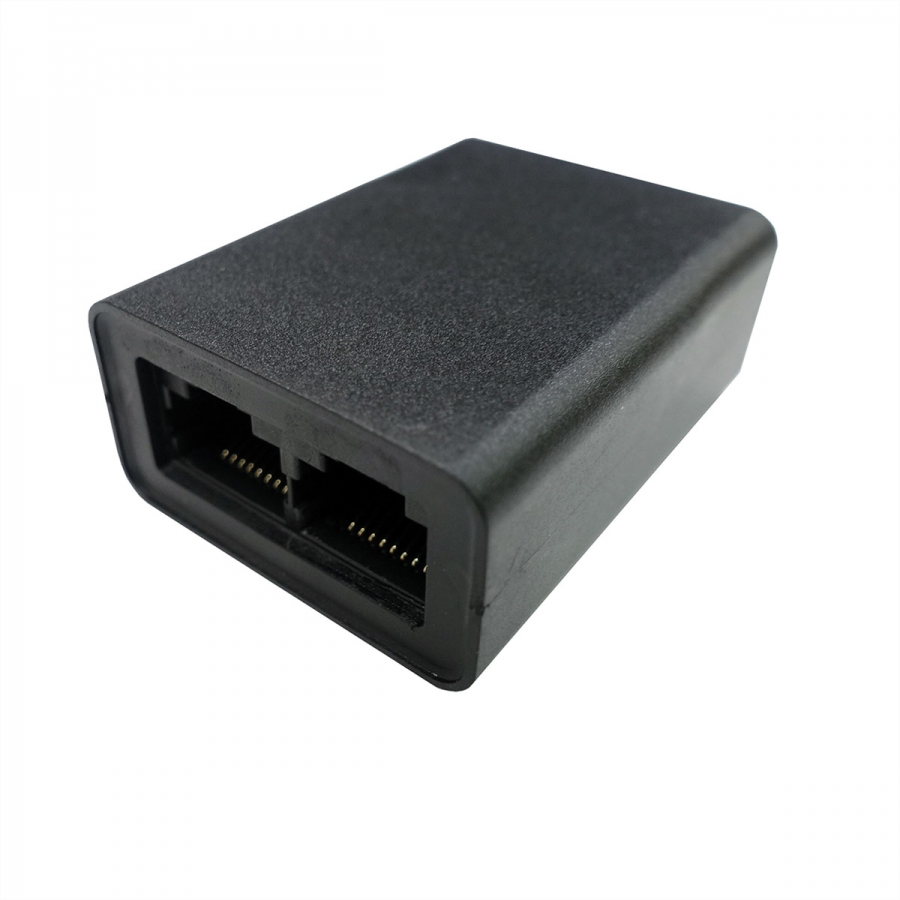

  • Adapter with two RJ-45 jacks
  • Pin assignment of connectors: pairs 1, 2 and 3, 6

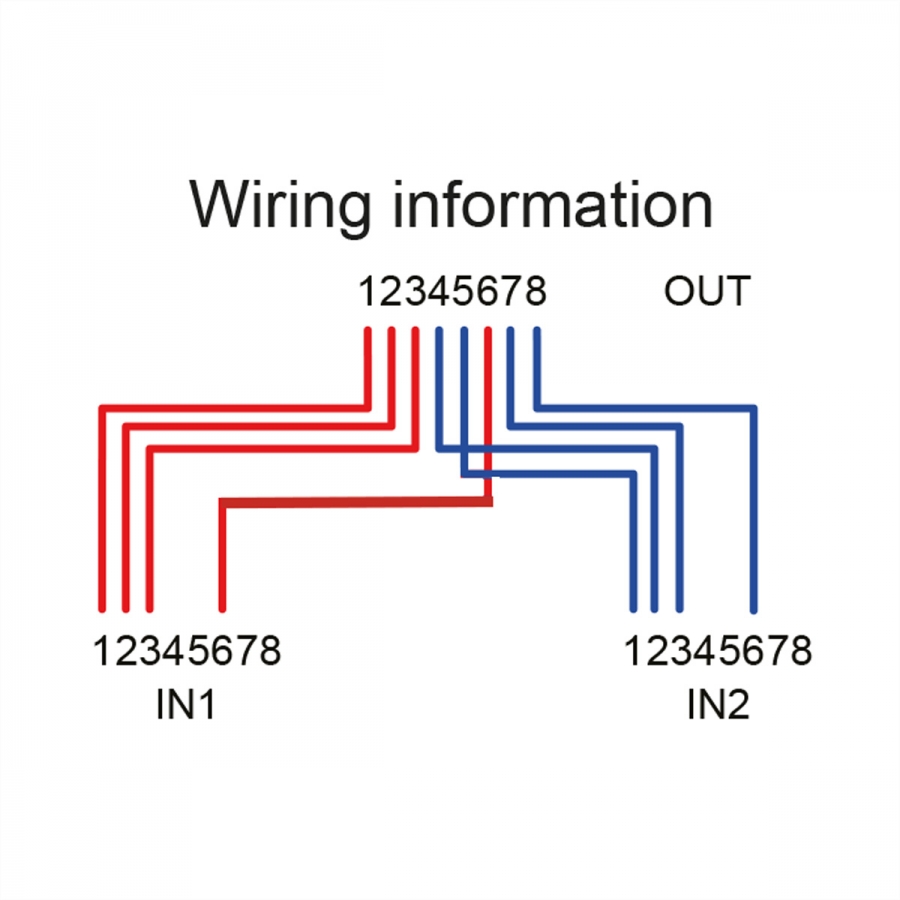

  • Wiring scheme on the adapter
  • For Cat. 5e/6/6A installations

  • Note: The adapters can be used only pairwise; Works only with Fast Ethernet (100 MBit). Not suitable for Gigabit or PoE applications.



ManufacturerROLINE
Product groupConnection technology TP
Product typeNetzwerkadapter
Colourblack
Shield typeNot screened
Transfer qualityCat6A / Class EA
Shield contacts
separate strain relief
Connection directionStraight
Current catalog editionC19-New

Network connectors
