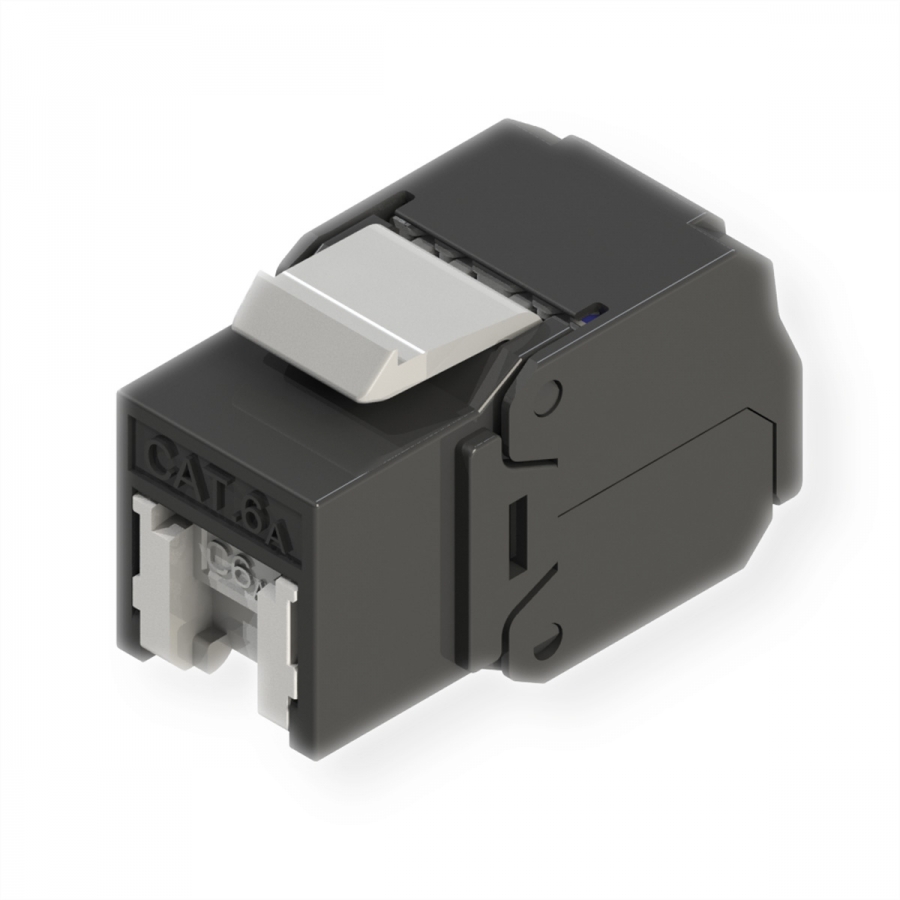

ROLINE Cat.6A Keystone, RJ-45, UTP, with shutter, Tool-free, black

ROLINE

21.17.0320

New

The low-cost solution for Cat.6A cabling for data rates up to 10Gbit/s!
Cat.6A/Class EA Keystone jack for installation in a Keystone blank 19" patch panel module frame.

  • Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
  • Cat.6A Keystone Jack (Module) UTP
  • Unshielded housing
  • Contacts gold plated
  • Slim type
  • With plastic internal shutter
  • 180 degree cable entry
  • Support PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
  • For cable AWG 22-24(0.45-0.65mm)
  • For cable OD: 5.0-8.5mm
  • Color code on the Keystone jacks based on the standard EIA/TIA 568 A & B
  • Dimensions (L x W x H): 37.9× 15.8 × 22.2mm



ManufacturerROLINE
Product groupConnection technology TP
Product typeRJ45 Keystone Jack
Colourblack
Shield typeNot screened
Transfer qualityCat6A / Class EA
AssignmentEIA/TIA 568A & 568B
Connection directionStraight
Current catalog editionC20-01.48
