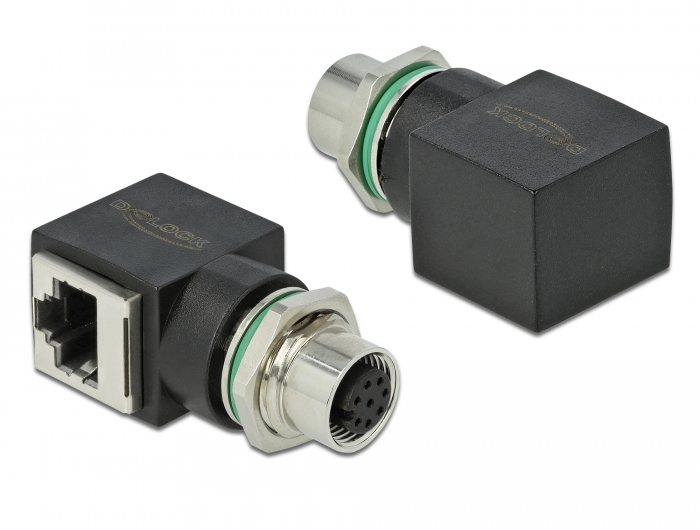

Delock Network Adapter M12 8 pin A-coded female to RJ45 jack

DELOCK

66314

New

This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.

Installation in switch cabinet
Due to its compact dimensions, the adapter is very well suited for installation in a switch cabinet. Devices with M12 connectors can be integrated into an existing network structure.
System requirements:
• A free M12 plug
• A free RJ45 plug
Specification:

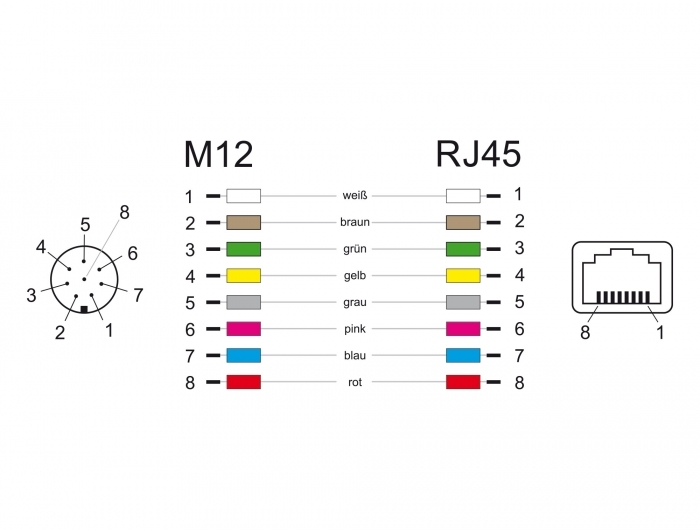

• Connectors:

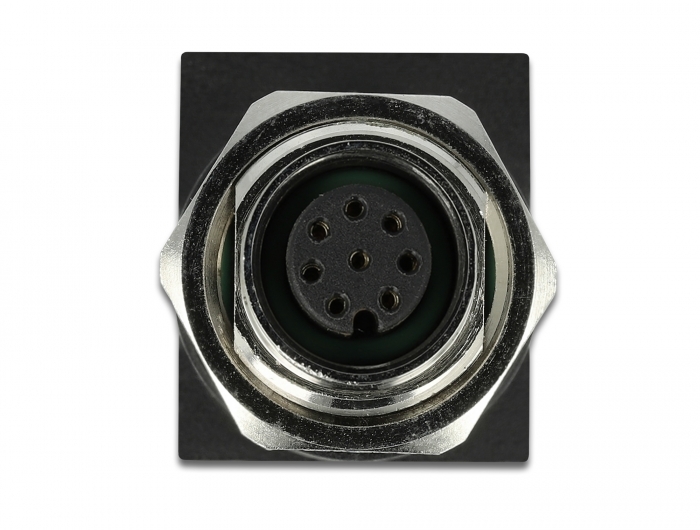

  1 x M12 female 8 pin A-coded >
  1 x RJ45 jack
• Housing material: TPU
• M16 external thread
• Contacts gold-plated
• Operating voltage: max. 30 V
• Current: max. 2 A
• Operating temperature: -25 °C ~ 85 °C
• Protection class: IP67
• Colour: black
• Dimensions (LxWxH): ca. 47.0 x 19.6 x 25.0 mm
Package content:
• Adapter
Data sheet:
http://www.delock.de/produkt/66314/pdf.html?sprache=en

Network connectors
