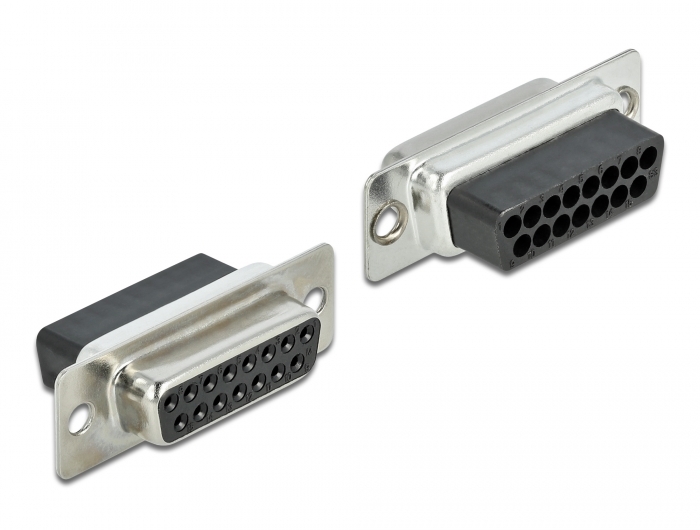

Delock Adapter Sub-D 15 pin female to RJ45 female Assembly Kit grey

DELOCK

65870

New

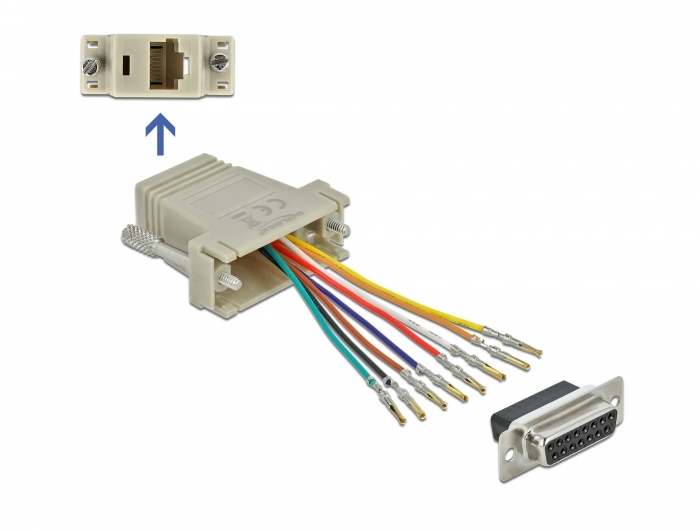

This adapter by Delock can be used to expand a serial interface by using an optional Cat.5 / 5e / 6 cable. Thereby one can set the pin assignment individually. Just plug the cable end into the desired hole of the connector and let it lock into the housing.
System requirements:
• A free Sub-D 15 pin male
Specification:
• Connectors:
  1 x serial Sub-D 15 pin female >
  1 x RJ45 jack
• RJ45 interface assigned with 8 pins, serial interface individually assignable
• Serial female port with screws
• Screw type: #4-40
• Colour: grey
• Dimensions incl. connector (LxWxH): ca. 43 x 42 x 16 mm
Package content:
• Adapter
Data sheet:
http://www.delock.de/produkt/65870/pdf.html?sprache=en
