Delock Adapter D-Sub 15 pin male to RJ45 female Assembly Kit black

DELOCK

66647

New

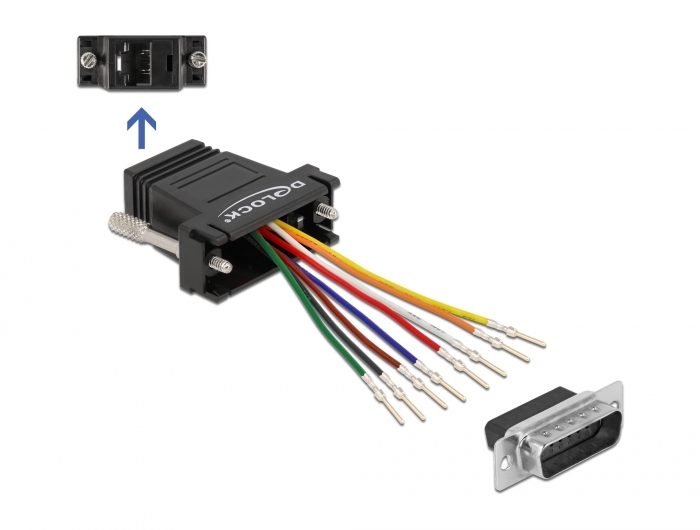

This adapter by Delock can be used to expand a serial interface by using an optional Cat.5 / 5e / 6 cable. Thereby one can set the pin assignment individually. Just plug the cable end into the desired hole of the connector and let it lock into the housing.
System requirements:
• A free D-Sub 15 pin female port or
• A free RJ45 plug
Specification:
• Connectors:

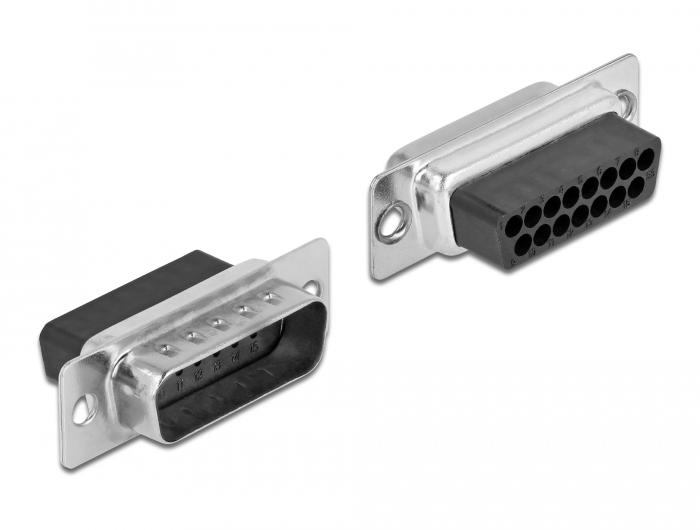

  1 x serial D-Sub 15 pin male >
  1 x RJ45 jack

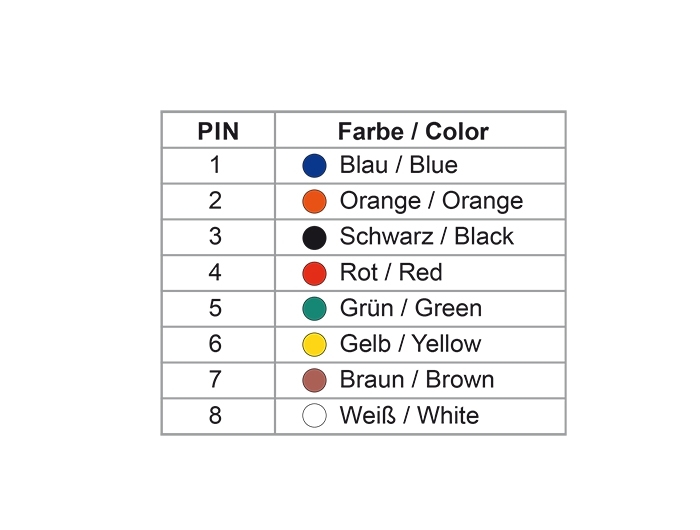

• RJ45 interface assigned with 8 pins, serial interface individually assignable
• Serial male port with screws
• Dimensions incl. connector (LxWxH): ca. 42 x 41 x 16 mm
• Colour: black
Package content:
• Adapter
Data sheet:
http://www.delock.de/produkt/66647/pdf.html?sprache=en
