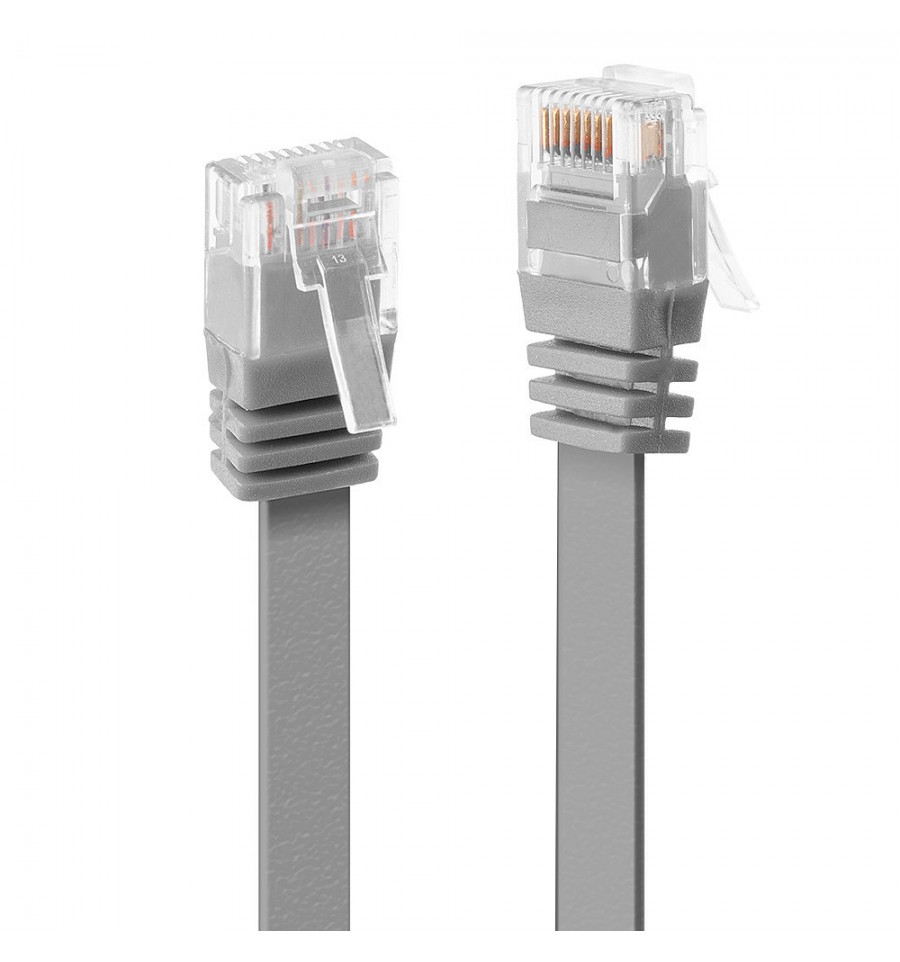

1m Cat.6 U/UTP Flat Network Cable, Grey

Lindy

LIN47491

New

Connectors

  • Connector A: RJ45 Male
  • Connector B: RJ45 Male
  • Housing Material: Polycarbonate
  • Connector Plating: -
  • Pin Construction: Brass
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH: 11.6x22.7x6.5mm (0.46x0.89x0.26in)



Cable Construction

  • Length: 1m (3.28ft)
  • Colour: Grey
  • Type: Cat.6
  • Jacket Diameter: 6.05x1.40mm (0.24x0.06in)
  • Jacket Material: PVC
  • Conductor Material: Bare Copper
  • Conductor Gauge: 32AWG
  • Shielding: -



Specifications

  • Supported Bandwidth: 250MHz
  • Nominal Attenuation: 35.9dB/100m @ 250MHz
  • Minimum Bend Radius: 60mm (2.36in)
  • Operating Temperature: -10°C - 60°C (14F - 140°F)
  • Storage Temperature: -10°C - 40°C (14F - 104°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL, California Proposition 65
  • Purchasing Information
  • No.: 47491
  • EAN: 4002888474917



This product is also available in other lengths:

  • 47490 - 0.3m (0.98ft)
  • 47491 - 1m (3.28ft)
  • 47492 - 2m (6.56ft)
  • 47493 - 3m (9.84ft)
  • 47494 - 5m (16.44ft)
  • 47495 - 10m (32.81ft)
