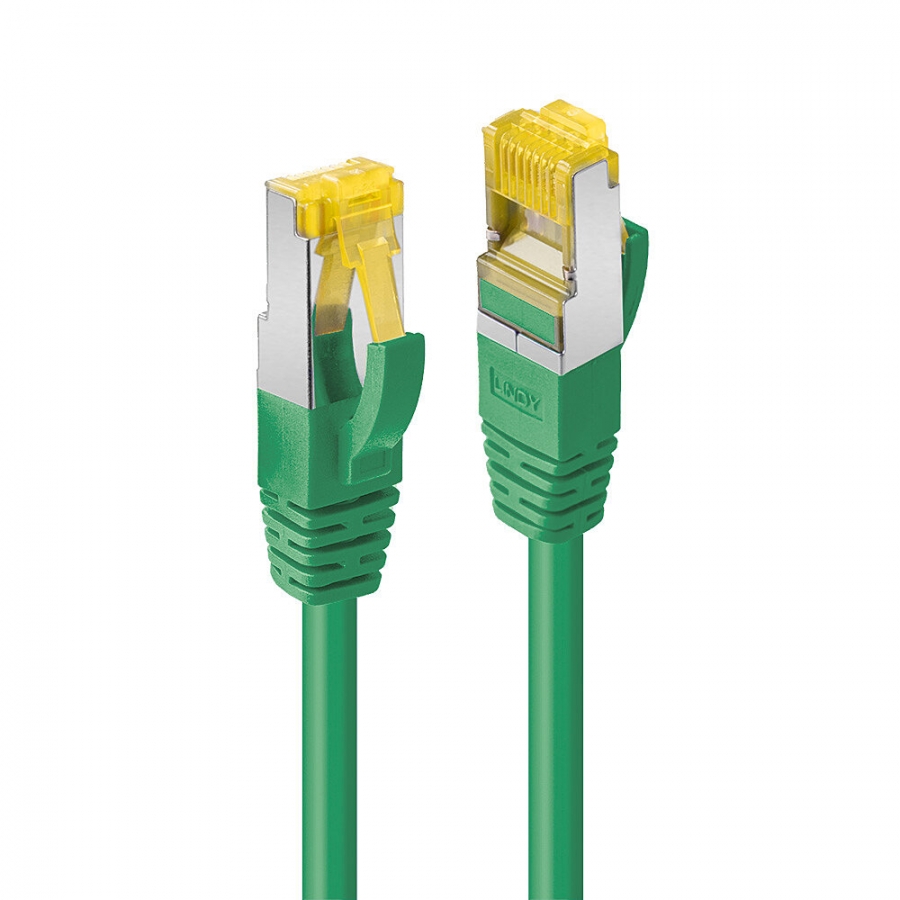

Lindy 30m RJ45 S/FTP LSZH Cable, Green

Lindy

LIN47655

New

Connectors

  • Connector A: RJ45 Male Cat.6A
  • Connector B: RJ45 Male Cat.6A
  • Housing Material: Polycarbonate
  • Connector Plating: Nickel
  • Pin Construction: Copper Alloy
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)



Cable Construction

  • Length: 30m (98.43ft)
  • Colour: Green
  • Type: Cat.7
  • Jacket Diameter: 6.5mm (0.26in)
  • Jacket Material: LSZH
  • Conductor Material: Copper
  • Conductor Gauge: 26AWG
  • Shielding: Aluminium Braid



Specifications

  • Supported Bandwidth: 600MHz
  • Nominal Attenuation: 51.4dB/100m @600MHz
  • Minimum Band Radius: 78mm (3.07in)
  • Operating Temperature: -10°C - 60°C (14°F - 140°F)
  • Storage Temperature: -20°C - 75°C (-4°F - 167°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL, California Proposition 65



Purchasing Information

  • No.: 47655
  • EAN: 4002888476553



This product is also available in other lengths

  • 47645 - 0.3m (0.98ft)
  • 47646 - 0.5m (1.64ft)
  • 47647 - 1m (3.28ft)
  • 47644 - 1.5m (4.92ft)
  • 47648- 2m (6.56ft)
  • 47649 - 3m (9.84ft)
  • 47650 - 5m (16.44ft)
  • 47651 - 7.5m (24.61ft)
  • 47652 - 10m (32.81ft)
  • 47653 - 15m (49.21ft)
  • 47654 - 20m (65.62ft)
  • 47655 - 30m (98.43ft)
