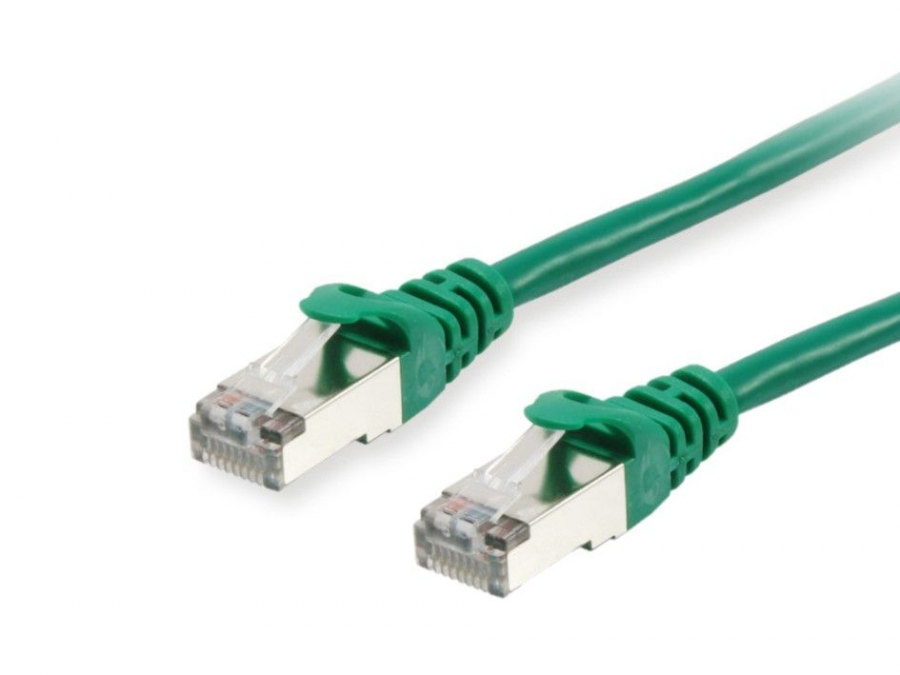

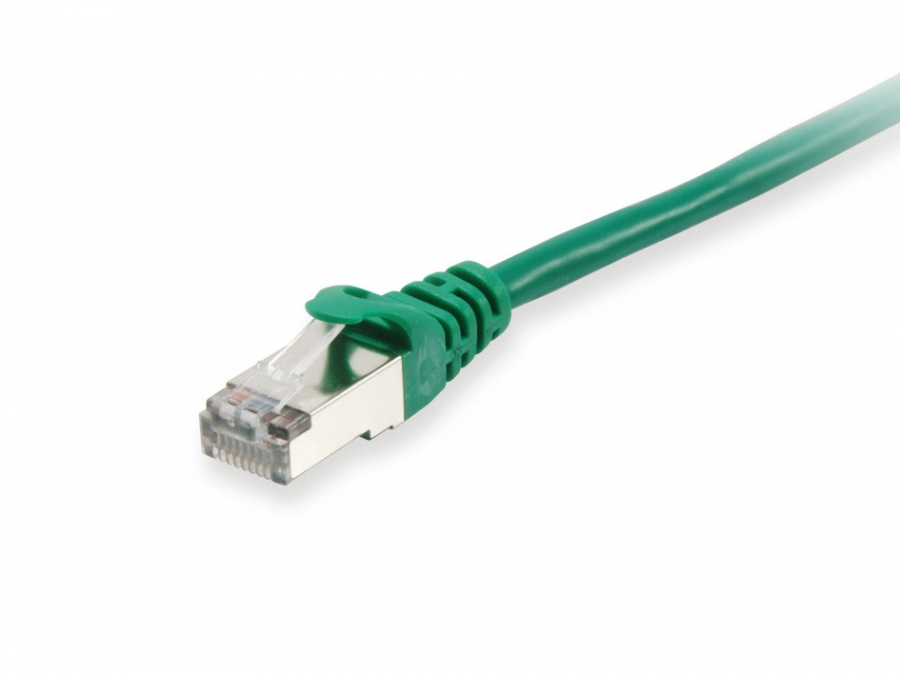

Equip Patchkabel Cat6 S/FTP 2xRJ45 0.50m grün LSZH Polybeutel

EQUIP

605547

New

The equip® Cat.6 S/FTP Patch Cord is composed of high-quality materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6 cable is able to deliver ultrahigh and error-free performance in the most demanding network environments.

Cable length0.5 m
Cable standardCat6
Cable shieldingS/FTP (S-STP)
Connector 1RJ-45
Connector 2RJ-45
Product colourGreen
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
Jacket materialLow smoke zero halogen (LSZH)
Cable shapeRound
Conductor typeStranded
Conductor materialCopper
Cabling technology10/100/1000Base-T(X)
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Networking standardsIEEE 802.3, IEEE 802.5
AWG wire size28/7
Data transfer rate1000 Mbit/s
Frequency250 MHz
Power over Ethernet (PoE)Y
Power over Ethernet (PoE) type supportedPoE+
Molded cable bootY
Plug and PlayY
CertificationISO/IEC 11801, EN50288, TIA/EIA 568-C.2
Country of originChina
Width8.34 mm
Depth11.7 mm
Height500 mm
Outer diameter5.8 mm
Weight33 g
Quantity per pack1 pc(s)
Package width140 mm
Package depth12 mm
Package height180 mm
Package weight18 g
Sustainability complianceY
Sustainability certificatesCE, REACH, RoHS, UKCA
Doesn't containHalogen
Harmonized System (HS) code84733080
Master (outer) case width290 mm
Master (outer) case length350 mm
Master (outer) case gross weight9.1 kg
Master (outer) case height380 mm
Products per master (outer) case300 pc(s)

Network RJ45 (6 cat)
