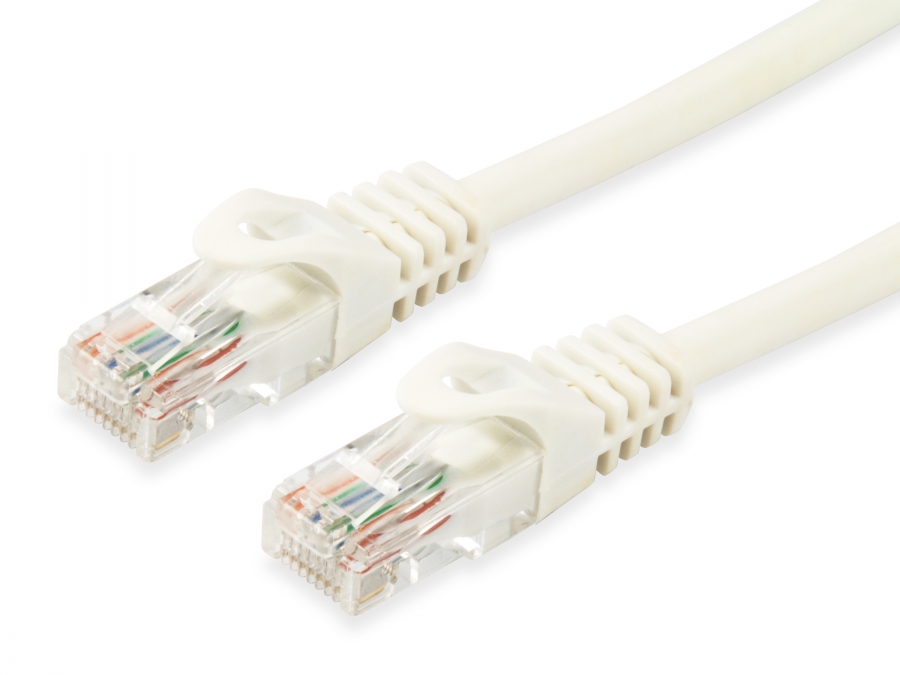

Equip Patchkabel Cat6A U/UTP 2xRJ45 7.50m weiß LSZH Polybeutel

EQUIP

603006

New

The equip® Cat.6A U/UTP Patch Cord is composed of preeminent materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6A cable is able to deliver ultrahigh and error-free performance in the most demanding network environments, specially for 10G application.

Cable length7.5 m
Cable standardCat6a
Cable shieldingU/UTP (UTP)
Connector 1RJ-45
Connector 2RJ-45
Product colourWhite
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
Jacket materialLow smoke zero halogen (LSZH)
Cable shapeRound
Conductor typeStranded
Conductor materialCopper
Cabling technology10GBase-T
Ethernet interface type10 Gigabit Ethernet, Gigabit Ethernet
AWG wire size26/7
Frequency500 MHz
Power over Ethernet (PoE)Y
Power over Ethernet (PoE) type supportedPoE+
Molded cable bootY
Plug and PlayY
Country of originChina
Width10.7 mm
Depth11.7 mm
Height7500 mm
Insulation thickness0.35 mm
Outer diameter5.5 mm
Weight242 g
Quantity per pack1 pc(s)
Package width200 mm
Package depth35 mm
Package height230 mm
Package weight252 g
Package typePolybag
Sustainability complianceY
Sustainability certificatesRoHS, CE, REACH
Doesn't containHalogen
Harmonized System (HS) code84733080
Master (outer) case width300 mm
Master (outer) case length300 mm
Master (outer) case gross weight12.6 kg
Master (outer) case height400 mm
Products per master (outer) case50 pc(s)
Insulation outer diameter1.05 mm

Network RJ45 (6 cat)
