Equip Patchkabel Cat6 60x/set S/FTP 2xRJ45 0.50m gr LSZH

EQUIP

635507

New

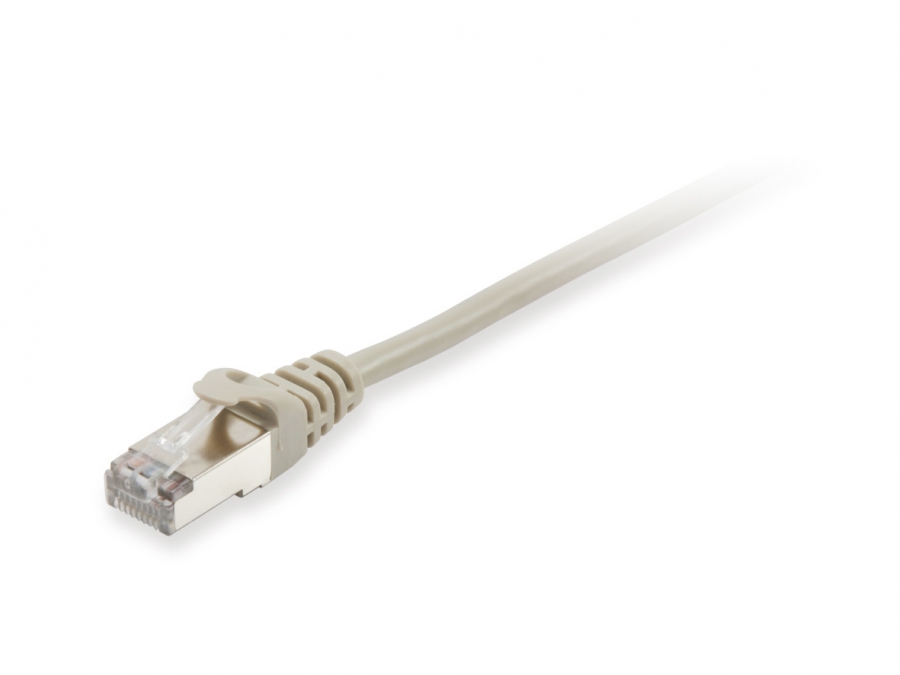

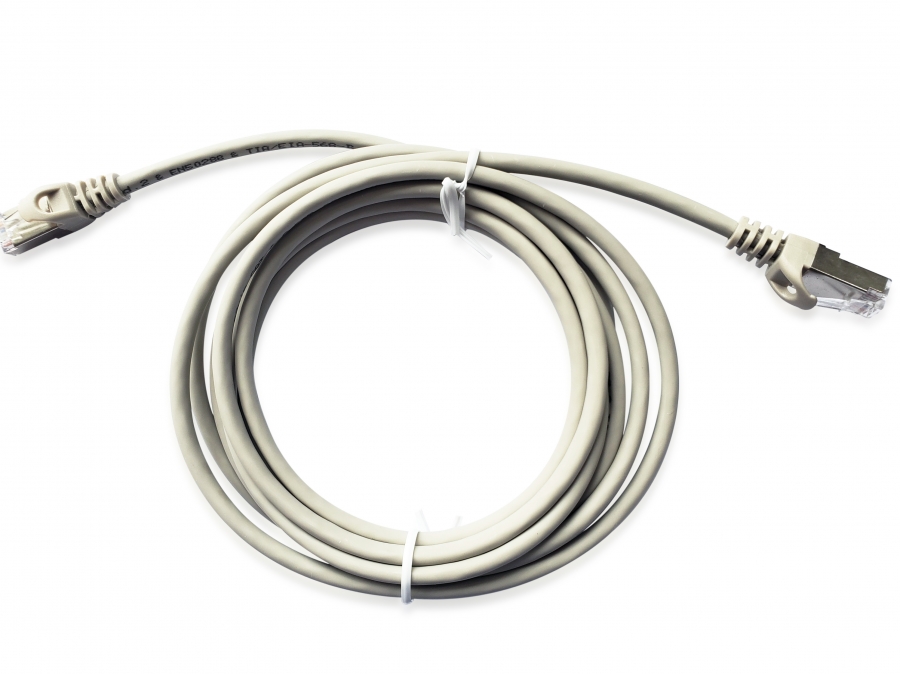

The equip Cat.6 S/FTP Patch Cord is composed of high-quality materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6 cable is able to deliver ultrahigh and error-free performance in the most demanding network environments.

Cable length0.5 m
Cable standardCat6
Cable shieldingS/FTP (S-STP)
Connector 1RJ-45
Connector 2RJ-45
Product colourGrey
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
Jacket materialLow smoke zero halogen (LSZH)
Cable shapeRound
Conductor typeStranded
Conductor materialCopper
Cabling technology10/100/1000Base-T(X)
Ethernet interface typeGigabit Ethernet
Networking standardsIEEE 802.3, IEEE 802.5
AWG wire size28/7
Data transfer rate1000 Mbit/s
Frequency250 MHz
Power over Ethernet (PoE)Y
Power over Ethernet (PoE) type supportedPoE+
Molded cable bootY
Plug and PlayY
Country of originChina
Width8.34 mm
Depth11.7 mm
Height500 mm
Outer diameter5.8 mm
Weight1.15 kg
Quantity per pack60 pc(s)
Package width27 mm
Package depth19 mm
Package height17 mm
Sustainability complianceY
Sustainability certificatesRoHS, CE
Doesn't containHalogen
Harmonized System (HS) code84733080
Master (outer) case width29 mm
Master (outer) case length40 mm
Master (outer) case gross weight11.4 kg
Master (outer) case height38 mm
Products per master (outer) case6 pc(s)

Network RJ45 (6 cat)
