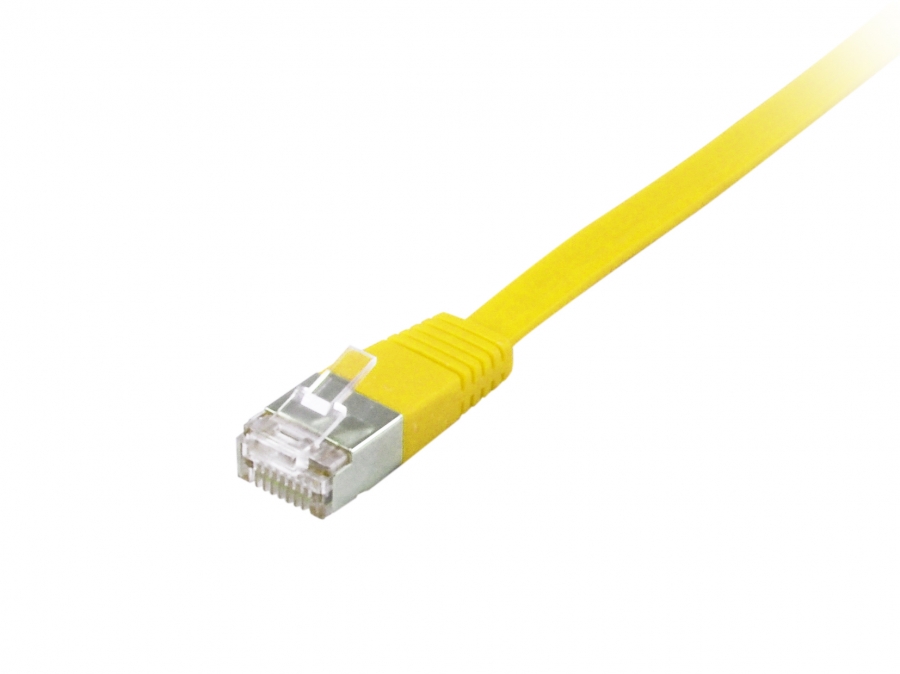

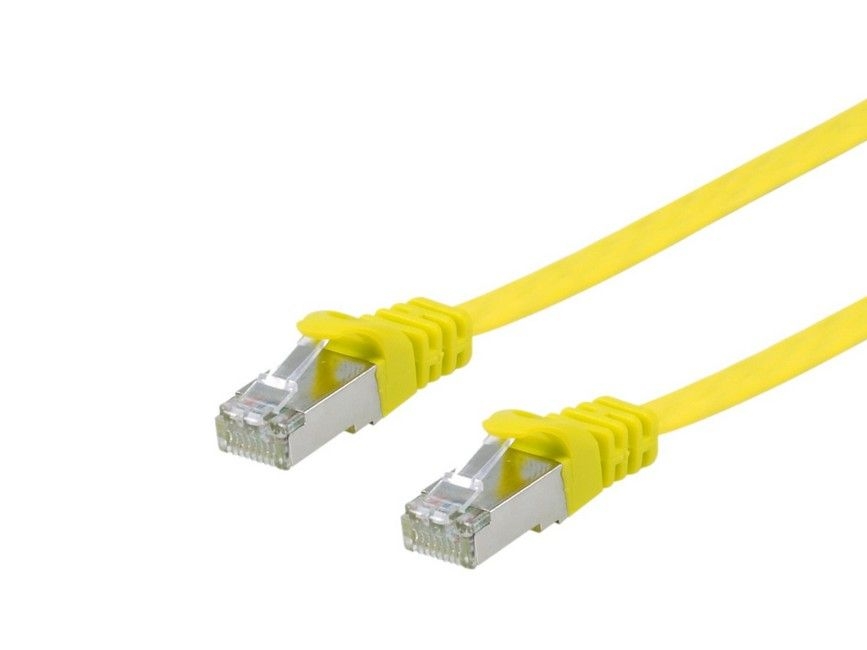

Equip Patchkabel Cat6A U/FTP 2xRJ45 2.00m gelb Flach LSZH

EQUIP

607661

New

The equip® Cat.6A U/FTP Patch Cord is composed of preeminent materials and fully-examined to fulfill the 10G application. The flat form factor is ideal for saving space and thus more convenient for cabling deployment, avoiding the cumbersome installation.

Cable length2 m
Cable standardCat6a
Cable shieldingU/FTP (STP)
Connector 1RJ-45
Connector 2RJ-45
Product colourYellow
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
Jacket materialLow smoke zero halogen (LSZH)
Cable shapeFlat
Conductor typeStranded
Conductor materialCopper
Cabling technology10GBase-T
Ethernet interface type10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Networking standardsIEEE 802.3, IEEE 802.5
AWG wire size30/7
Data transfer rate10000 Mbit/s
Frequency500 MHz
Molded cable bootY
Plug and PlayY
Country of originChina
Width120 mm
Depth10 mm
Height2000 mm
Outer diameter7.5 mm
Weight54.72 g
Quantity per pack1 pc(s)
Package width175 mm
Package depth11 mm
Package height275 mm
Package typePolybag
Sustainability complianceY
Sustainability certificatesCE, REACH, RoHS
Doesn't containHalogen
Harmonized System (HS) code84733080
Master (outer) case width290 mm
Master (outer) case length350 mm
Master (outer) case gross weight11.7 kg
Master (outer) case height380 mm
Products per master (outer) case180 pc(s)
