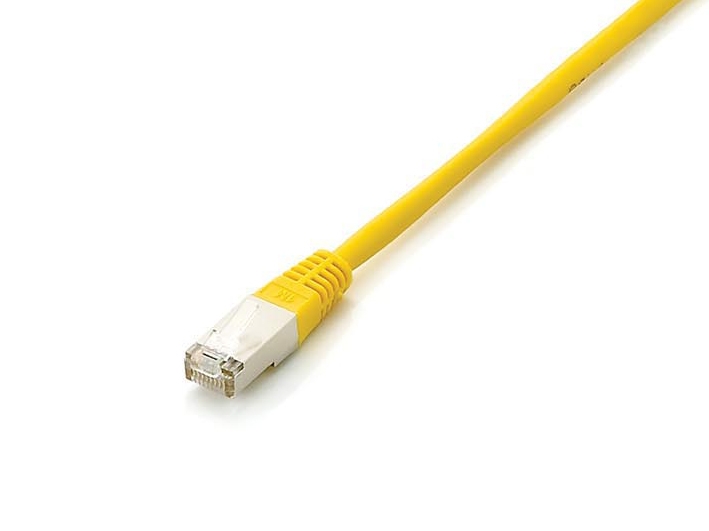

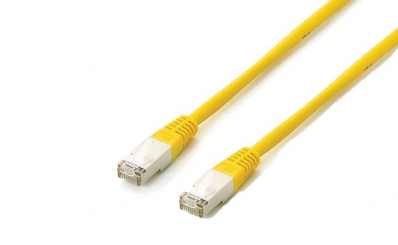

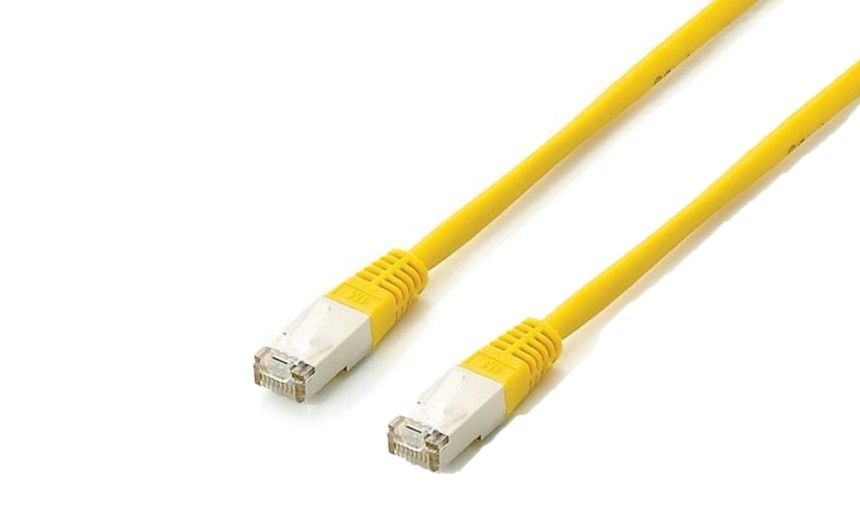

Equip Patchkabel Cat6A S/FTP 2xRJ45 1.00m gelb Plat.LSZH Polybeutel

EQUIP

605660

New

Cat.6A Pro S/FTP Patch Cord is composed of preeminent materials and fully-examined to Cat.6A Platinum S/FTP Patch Cord is composed of preeminent materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6A cable is able to deliver ultrahigh and error-free performance in the most demanding network environments, specially for 10G application.

Cable length1 m
Cable standardCat6a
Cable shieldingS/FTP (S-STP)
Connector 1RJ-45
Connector 2RJ-45
Product colourYellow
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
Jacket materialLow smoke zero halogen (LSZH)
Cable shapeRound
Conductor typeStranded
Conductor materialCopper
Cabling technology10GBase-T
Ethernet interface type10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Networking standardsIEEE 802.3, IEEE 802.5
AWG wire size26/7
Data transfer rate10000 Mbit/s
Frequency500 MHz
Power over Ethernet (PoE)
Power over Ethernet (PoE) type supportedPoE+, PoE++ (4PPoE)
Molded cable boot
Plug and Play
Country of originChina
Width8.34 mm
Depth11.7 mm
Height1000 mm
Outer diameter6.1 mm
Weight53 g
Quantity per pack1 pc(s)
Package width140 mm
Package depth15 mm
Package height180 mm
Package weight25 g
Sustainability compliance
Sustainability certificatesCE, REACH, RoHS, UKCA
Doesn't containHalogen
Harmonized System (HS) code84733080
Master (outer) case width300 mm
Master (outer) case length280 mm
Master (outer) case gross weight11.5 kg
Master (outer) case height490 mm
Products per master (outer) case200 pc(s)
