VALUE S/FTP (PiMF) Patch Cord, Cat.6 (Class E), green, 1.5 m

VALUE

21.99.0814

New

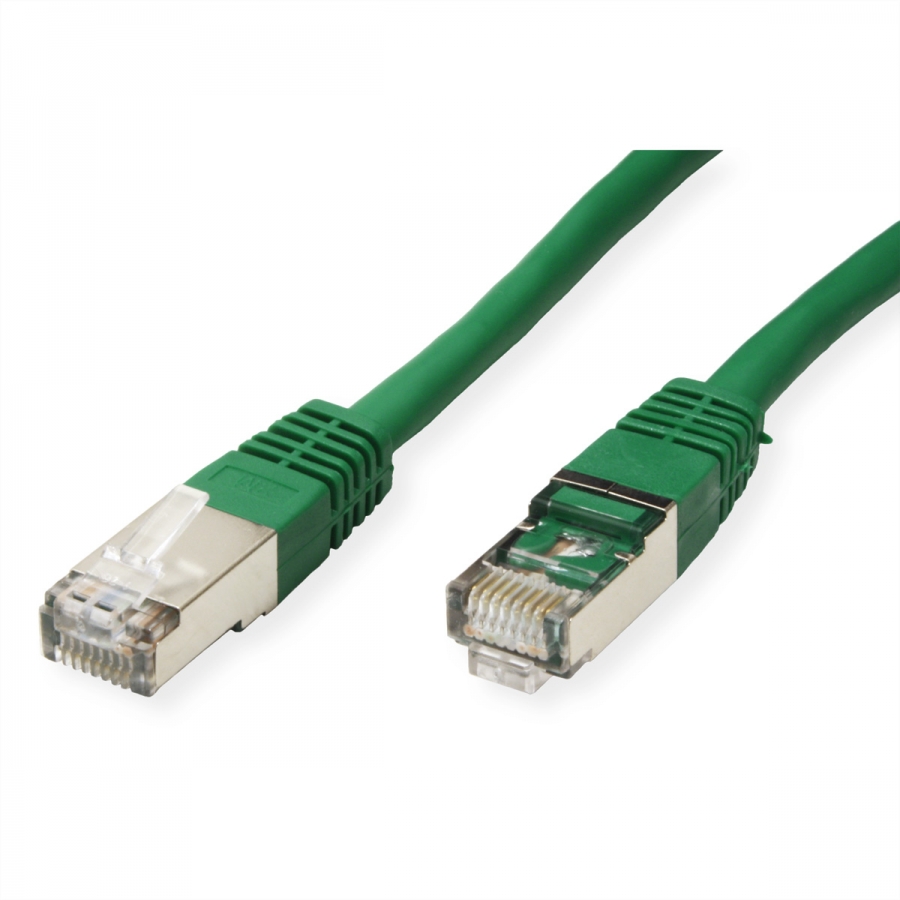

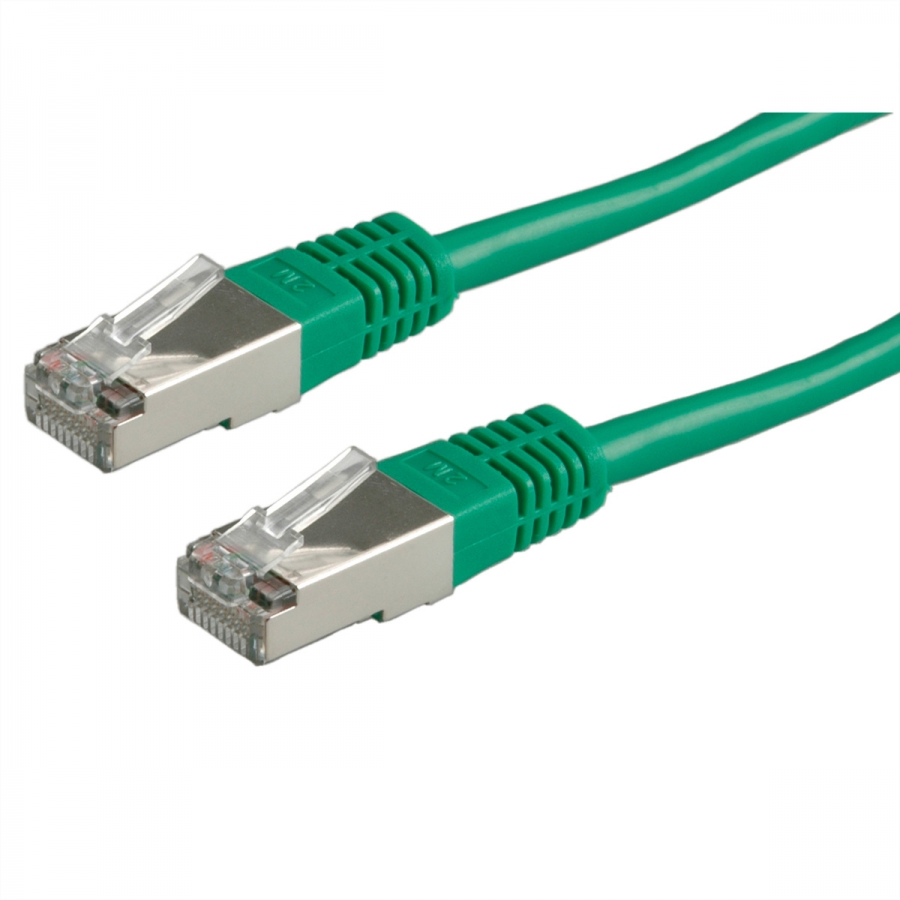

Prepared shielded Twisted Pair cable with RJ-45 connectors on both sides. Used as patch cable in wiring cabinet or as direct connection cable between devices. Flexible cable suitable for narrow bending. Contact settings 1:1, according to EIA/TIA 568, 8 wires. Construction: 8 wires stranded copper wire, braided shield. Impedance: 100 Ohm. For a structured cabling system we recommend to use the following components: ROLINE Cat.6 S/FTP Cable, Solid Wire, AWG23: 21.15.0890 (100 m), 21.15.0891 (300 m). VALUE Cat.6 Flush/Surface Mount Wall Jack, shielded, white: 25.99.8492/25.99.8392. VALUE Cat.6 19" Patch Panel, 24 Ports, shielded: 26.99.0353 (black), 26.99.0354 (grey). VALUE Cat.6 S/FTP Patch Cord, grey, 5 m: 21.99.0805. Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class E specifications.



ManufacturerVALUE
Product groupTwisted Pair Cable
Product typeS / FTP patch cable PiMF
Colourgreen
Length1.5 m
Shield typePiMF
Transfer qualityCat6 / Class E
Impedance100 Ohm
Quantity of wires8
Conductor typeWire
Crossed
Colour (Spout)green
Cable LSOH
Side 1 Connector TypeRJ-45
Side 1 Connector GenderMale
Side 2 Connector TypeRJ-45
Side 2 Connector GenderMale
Connector Type RJ45Standard
Operating temperature min.-20 °C
Operating temperature max.60 °C
Weight47.1 g
Height of packaging (single piece)20 mm
Width of packaging (single piece)130 mm
Depth of packaging (single piece)130 mm
Package weight (single piece)0.06 kg
Current catalog editionC24-01.24

Network RJ45 (6 cat)
