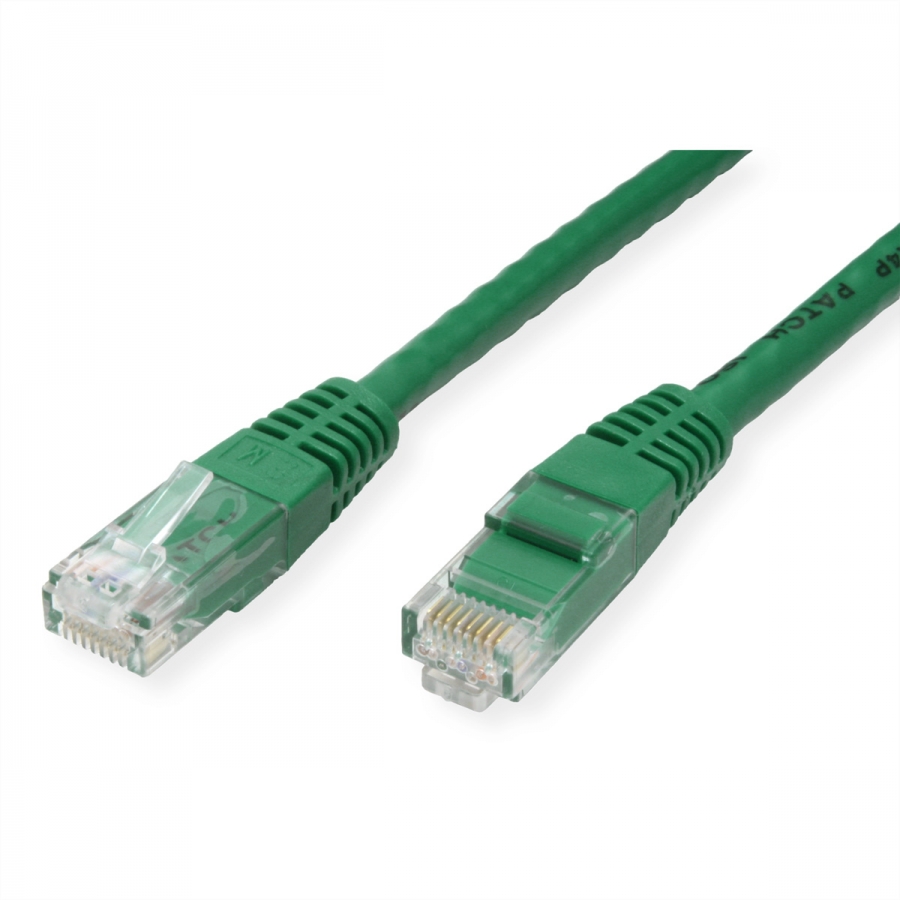

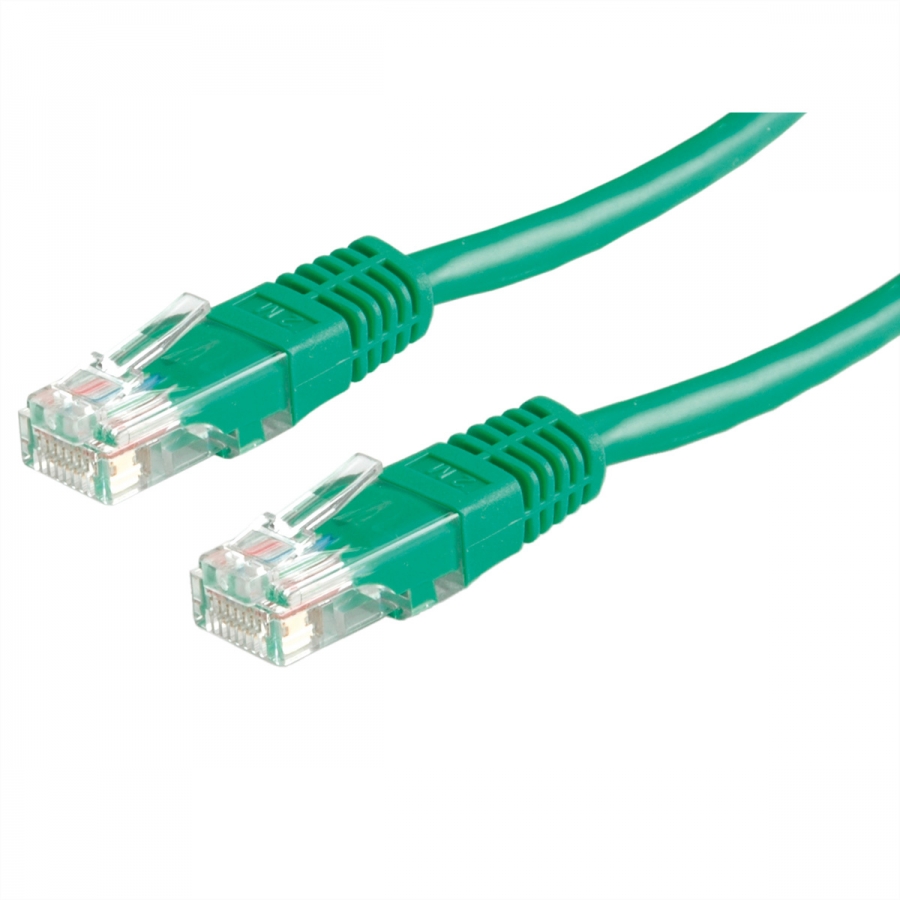

VALUE UTP Patch Cord, Cat.6 (Class E), green, 10 m

VALUE

21.99.1583

New

Patch cable for networking connections between devices. Prepared unshielded Twisted Pair cable with RJ-45 connectors on both ends. Durable due to moulded kink protection. Flexible cable, suitable for narrow bending. Plugs with gold plated contacts. Contact settings 1:1, in accordance with the EIA/TIA 568 standard. Construction: 4-pair stranded wire.

For a structured cabling system we recommend to use the following components: VALUE Cat.6 UTP Cable, Solid Wire, AWG24, 300 m: 21.99.0995. VALUE Cat.6 Flush/Surface Mount Wall Jack, unshielded, white: 25.99.8494/25.99.8394; VALUE Cat.6 19" Patch Panel, 24 Ports, unshielded: 26.99.0351 (black), 26.99.0352 (grey); VALUE Cat.6 UTP Patch Cord, grey, 5 m: 21.99.0905. Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class E specifications.



ManufacturerVALUE
Product groupTwisted Pair Cable
Product typeUTP Patch Cables
Colourgreen
Length10 m
Shield typeUTP
Transfer qualityCat6 / Class E
Impedance100 Ohm
Quantity of wires8
Conductor typeWire
Crossed
Colour (Spout)green
Cable LSOH
Side 1 Connector TypeRJ-45
Side 1 Connector GenderMale
Side 2 Connector TypeRJ-45
Side 2 Connector GenderMale
Connector Type RJ45Standard
Weight263.1 g
Height of packaging (single piece)35 mm
Width of packaging (single piece)145 mm
Depth of packaging (single piece)145 mm
Package weight (single piece)0.337 kg
Current catalog editionC24-01.22

Network RJ45 (6 cat)
