VALUE S/FTP Patch Cord Cat.8 (Class I), stranded, LSOH, grey, 1 m

VALUE

21.99.1801

New

Category 8, the standard for next-generation twisted-pair cabling, enables up to four times faster data transfer on the same cabling type and supports 25GBASE-T and 40GBASE-T short distance applications. Our Cat. 8 cables are halogen-free and flame-retardant (LSOH).

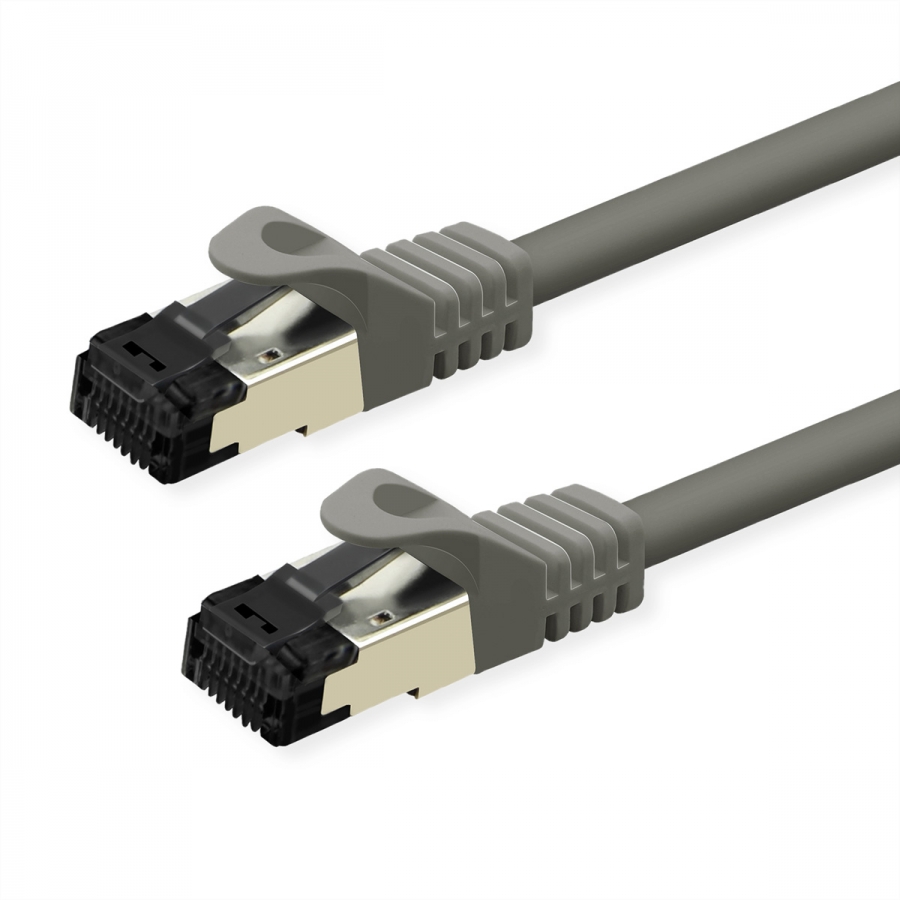

  • Prepared double shielded Twisted Pair cable with screened RJ45 connector on both ends
  • Suitable for PoE applications and multimedia applications were the extension is working over TP
  • Suitable for 10 GBit to IEEE 802.3an and for Power over Ethernet
  • Suitable for 25/40 GBit to IEEE 802.3bq applications (4-pair balanced twisted-pair cabling with 2 connectors over distances up to 30m)
  • High quality plugs with gold plated contacts
  • Contact settings 1:1, in accordance with the EIA/TIA 568 standard
  • Construction: 4-pair stranded copper wire, complete braid shielding, pairs shielded with aluminium clad polyester foil

For a Cat.8 channel link S/FTP Cabling we recommend to use the following components:
21.99.1800 VALUE S/FTP Cable, Cat.8, Solid Wire, AWG22
21.99.1807 VALUE Cat.8 RJ45 Keystone, Jack, toolless
21.99.1804 VALUE Cat.8 Shielded Field Connector RJ45 plug
21.99.1801 to 21.99.1803 VALUE S/FTP Patch Cable Stranded Cat.8, grey (1m to 3m)



ManufacturerVALUE
Product groupTwisted Pair Cable
Product typeS/FTP Patchcord
Colourgrey
Length1 m
Shield typePiMF
Transfer qualityCat8.1 / Class I
Impedance100 Ohm
Quantity of wires8
Conductor cross section (AWG)AWG 26
Conductor typeWire
Crossed
External cable diameter6.2mm +/- 0.2mm
Cable LSOH
Material (external cable mantle)TPE-LSOH
Side 1 Connector TypeRJ-45
Side 1 Connector GenderMale
Side 2 Connector TypeRJ-45
Side 2 Connector GenderMale
Connector Type RJ45Standard
Weight74 g
Height of packaging (single piece)20 mm
Width of packaging (single piece)100 mm
Depth of packaging (single piece)100 mm
Package weight (single piece)0.05 kg
Current catalog editionC23-New

Network RJ45 (cat 8)
